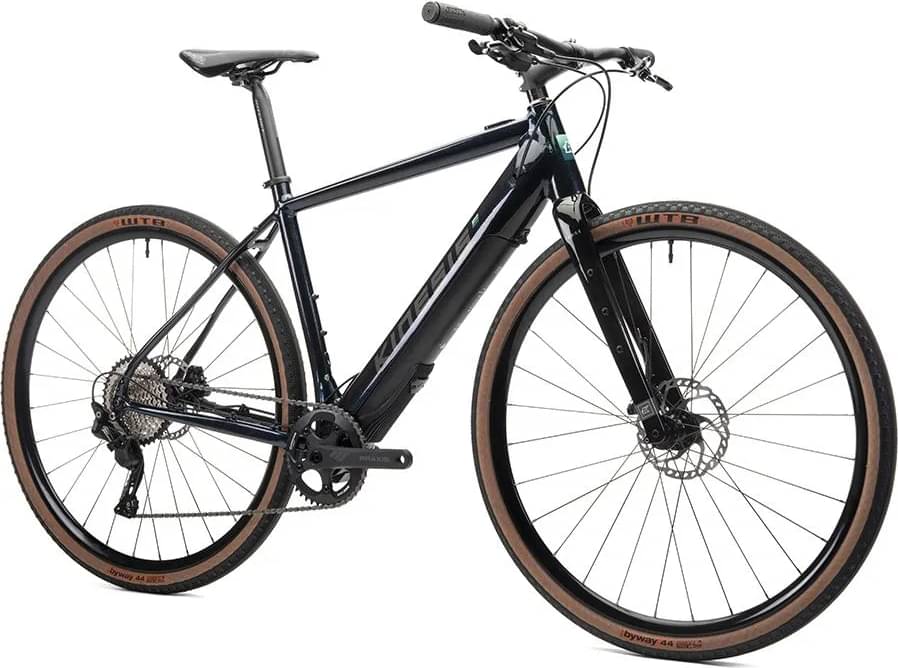

Kinesis RANGE Fitness E-Bike 2022
2022 E-bike
Estimate price |
4,617$
Weight | 14.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset microSHIFT XLE, Praxis -
Suspension Rigid -
Motor Fazua 350W mid-drive -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kinesis RANGE lightweight 6061 Hydroformed Aluminium Frame
Suspension Fork
Kinesis RANGE Carbon Fork
Drivetrain
Rear Derailleur
MicroSHIFT XLE
Shift Levers
MicroSHIFT XLE 1x10spd
Cassette
MicroSHIFT 11-42
Crank
Praxis Alloy E-Crank 42t - S-M 165mm, L-XL 170mm
Wheels
Front Hub
Sector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub
Rear Hub
Sector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub
Rims
Sector GCe E-Specific Tubeless Ready Aluminium Rim. Eyeletted and Pinned
Spokes
14g Black
Tires
Panaracer Gravel SS 43c Tubeless Ready
Brakes
Brakes
Tektro R280 - 160mm Front and Rear
Cockpit
Stem
Kinesis Alloy S-M 80mm, L-XL 90mm
Handlebar
Kinesis Aluminium Bar 720mm
Grips
Ritchey MTN Comp
Headset
FSA no.42 Cartridge Bearing
Seat
Saddle
Selle Italia X3
Seatpost
Ritchey 2-Bolt - 350mm x 31.6 diameter / 25mm offset
Motor & Battery
Motor
Fazua motor 350W
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.52 mm | 1.57 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 277 mm | 279 mm |
| Front Center | 602.7 mm | 621 mm | 635 mm | 657.9 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm | 67 mm | 67 mm |
| Stack | 561 mm | 586 mm | 611 mm | 646 mm |
| Reach | 381 mm | 391 mm | 401 mm | 411 mm |
| Top Tube Length | 540 mm | 557 mm | 580 mm | 601 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 490 mm | 540 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 131 mm | 157 mm | 185 mm | 224 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1038 mm | 1056 mm | 1071 mm | 1095 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 72 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
RANGE Fitness E-Bike is part of the Kinesis E Range model. Kinesis launched 13 e-bikes of this model so far. Take a sneak peek at all Kinesis E Range e-bikes models from 2022, by clicking here.
Model range prices
Kinesis Range Flat Bar E-Bike 2022 is the most affordable e-bike of this model and has a price of 3832$. On the other hand, Kinesis RANGE Adventure E-Bike 2022, is the most expensive and costs 4744$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel e-bikes average price
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2022 and its price was 4197$. Comparing the average cost of a Gravel e-bike to this one, you will see that RANGE Fitness E-Bike price is 15.24% more expensive.
Average weight for Gravel e-bikes
Gravel e-bikes have an average weight of 13.58 kg (29.94 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, RANGE Fitness E-Bike has a weight of 14.9 kg (32.85 lbs). In short, the average Gravel e-bike weight is 9.72% lower than this one.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on RANGE Fitness E-Bike are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
RANGE Fitness E-Bike comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
