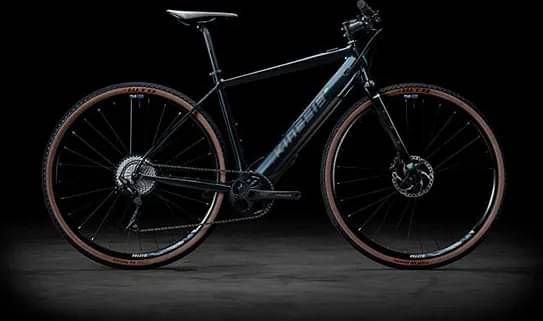

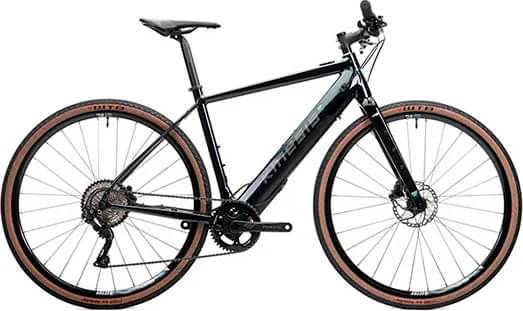

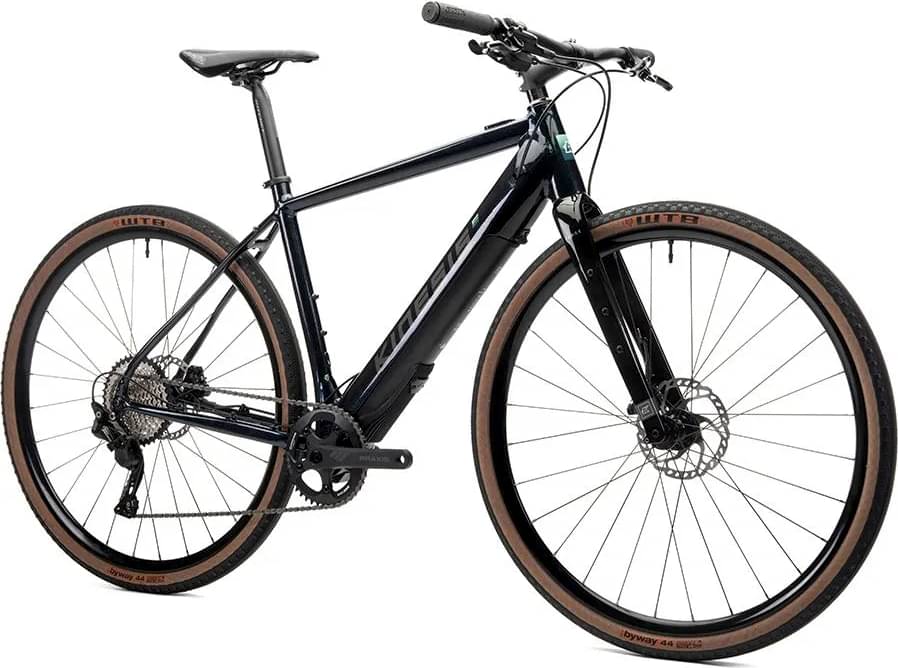

Kinesis RANGE Flat Bar EVATION 2023
2023 E-bike
Estimate price |
4,674$
Weight | 14.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset microSHIFT XLE, Praxis -
Suspension Rigid -
Motor Fazua 350W mid-drive -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

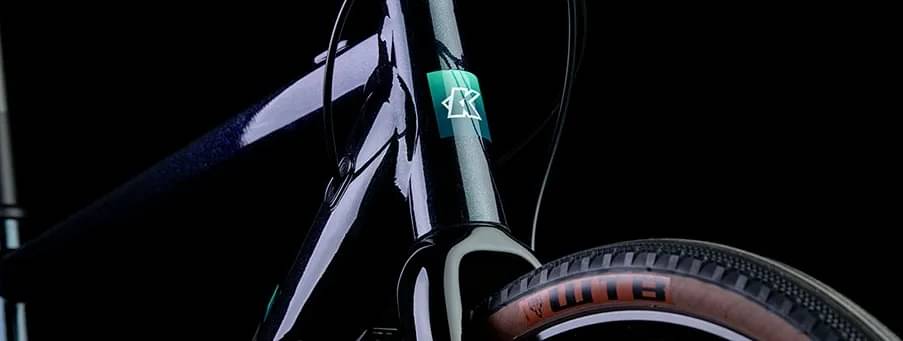

Frame
Frame
Kinesis RANGE lightweight 6061 Hydroformed Aluminium Frame
Suspension Fork
Kinesis RANGE Carbon Fork
Drivetrain
Rear Derailleur
MicroSHIFT XLE

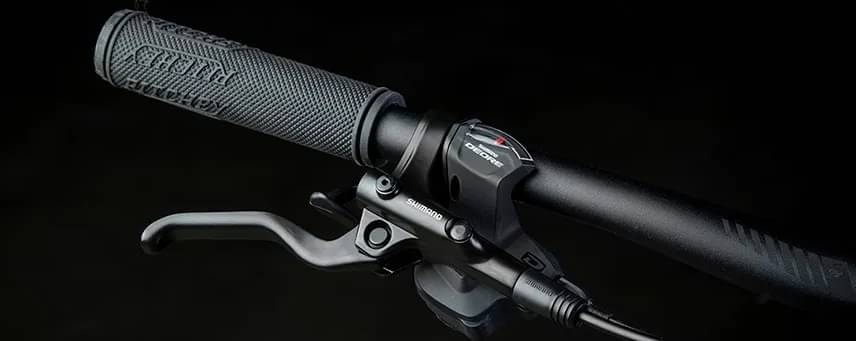

Shift Levers
MicroSHIFT XLE 1x10spd
Cassette
MicroSHIFT 11-40
Crank
Praxis Alloy E-Crank 42t - S-M 165mm, L-XL 170mm
Wheels
Front Hub
Sector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub
Rear Hub
Sector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub
Rims
Sector GCe E-Specific Tubeless Ready Aluminium Rim. Eyeletted and Pinned
Spokes
14g Black

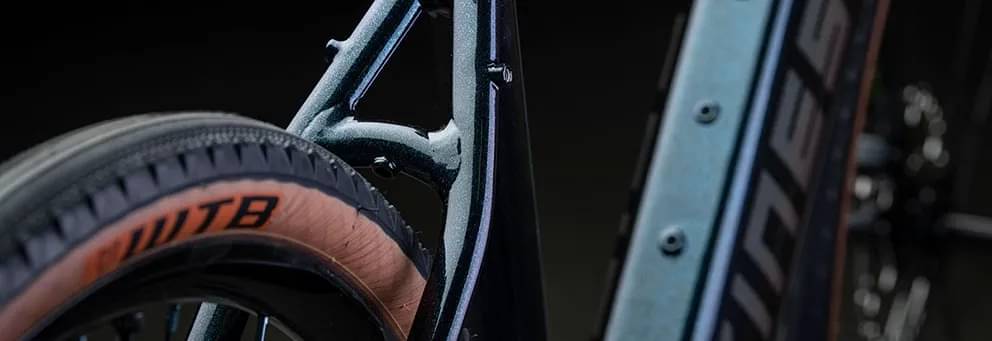

Tires
Panaracer Gravel SS Tubeless Ready
Brakes
Brakes
Tektro R280 - 160mm Front and Rear
Cockpit
Stem
Kinesis Alloy S-M 80mm, L-XL 90mm

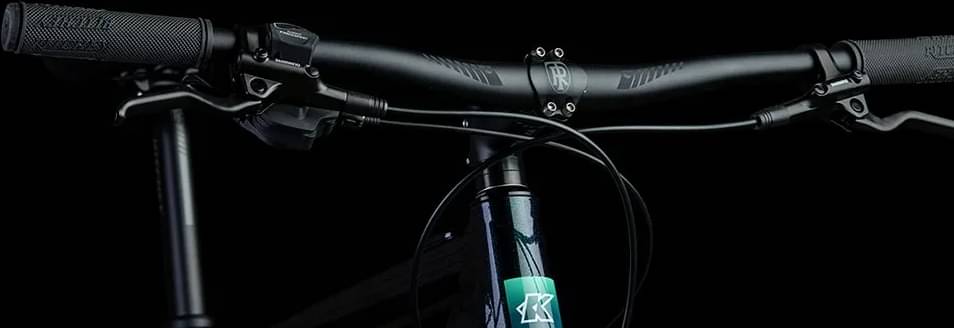

Handlebar
Ritchey MTN Rizer Trail 720mm
Grips
Ritchey MTN Comp
Headset
FSA no.42 Cartridge Bearing
Seat
Saddle
Selle Italia X3
Seatpost
Ritchey 2-Bolt - 350mm x 31.6 diameter / 25mm offset

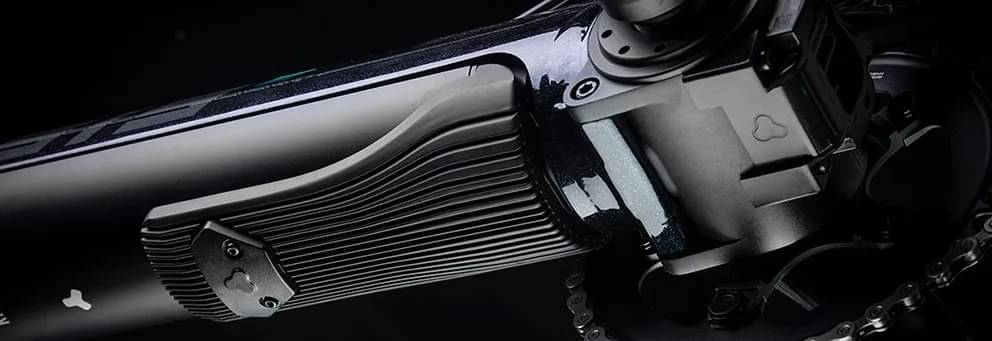

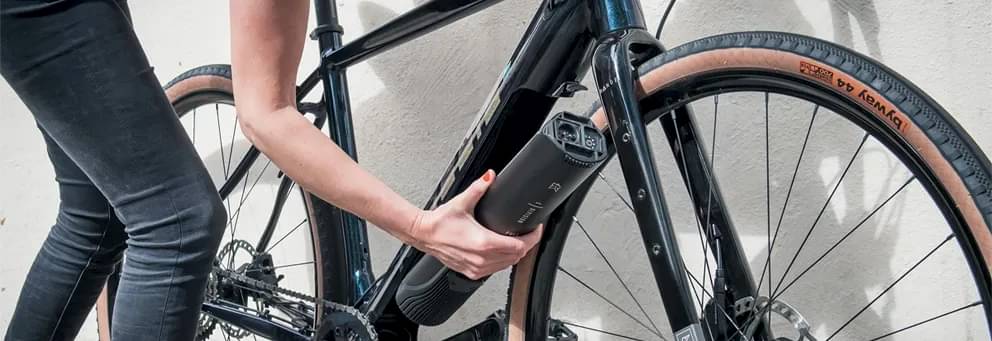

Motor & Battery
Motor
Fazua motor 350W
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.52 mm | 1.57 mm |
| Front Center | 602.7 mm | 621 mm | 635 mm | 657.9 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm | 67 mm | 67 mm |
| Stack | 561 mm | 586 mm | 611 mm | 646 mm |
| Reach | 381 mm | 391 mm | 401 mm | 411 mm |
| Top Tube Length | 540 mm | 557 mm | 580 mm | 601 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 490 mm | 540 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 131 mm | 157 mm | 185 mm | 224 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1038 mm | 1056 mm | 1071 mm | 1095 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 72 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
RANGE Flat Bar EVATION completes the Kinesis E Range model. Kinesis launched 13 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Kinesis RANGE Flat Bar EVATION 2023 is the most economical model, with a starting price of 4197$. Kinesis RANGE Adventure E-Bike 2023 on the other hand costs 4744$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 4197$. In conclusion, this e-bike price is 69.23% more expensive than the price of the average Hybrid e-bike.
Average weight for Hybrid e-bikes
Hybrid e-bikes weigh an average of 23.81 kg (52.49 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 14.9 kg (32.85 lbs), the RANGE Flat Bar EVATION model is much lighter than average. In other words, this model is 59.8% lighter than the average Hybrid e-bike.
RANGE Flat Bar EVATION components
Fork material
RANGE Flat Bar EVATION has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the RANGE Flat Bar EVATION e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kinesis RANGE Flat Bar EVATION is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
