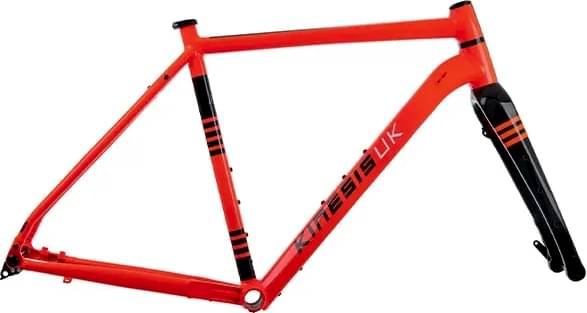

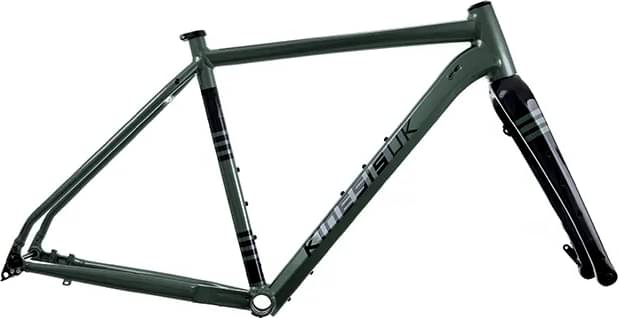

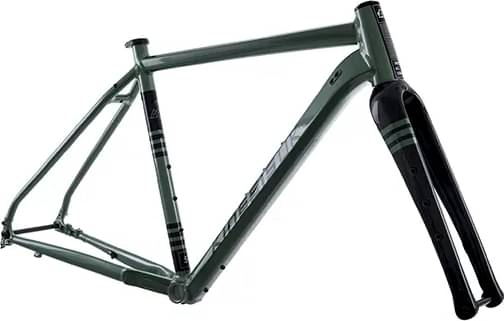

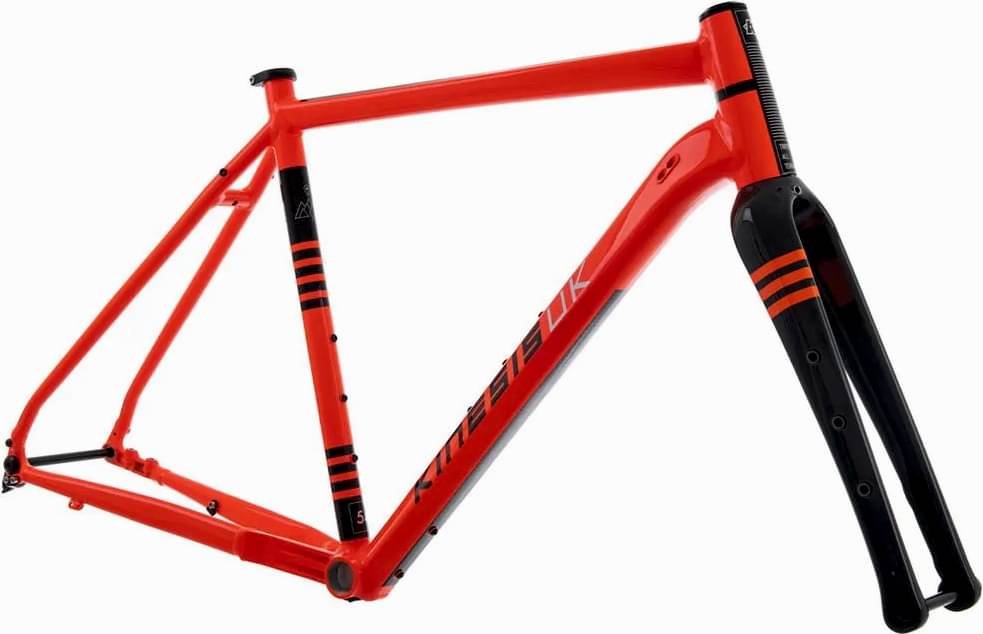

Kinesis Tripster AT FRAMESET 2023
2023 Road
Estimate price |
1,219$
Weight | 1.77 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 700c -
Suspension Rigid -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

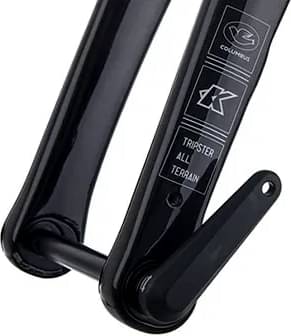

Suspension Fork
Inboard Shimano Flat-mount disc mounts on frame and frame and fork (maximum 160mm rotors).
Drivetrain

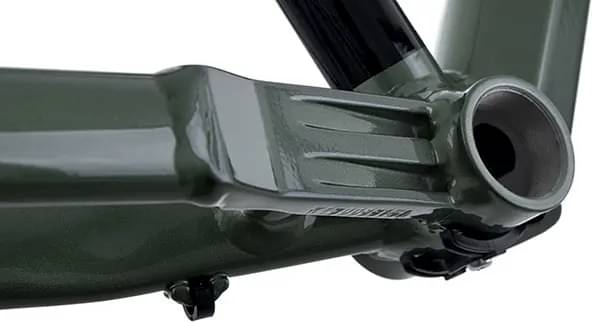

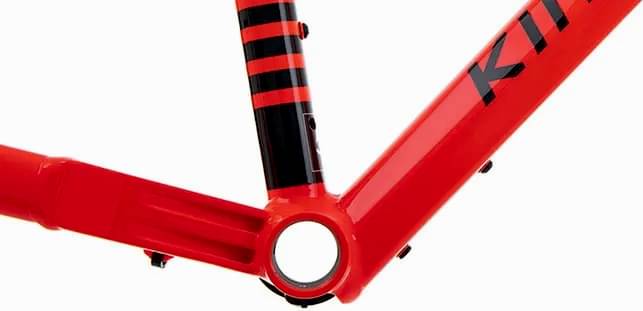

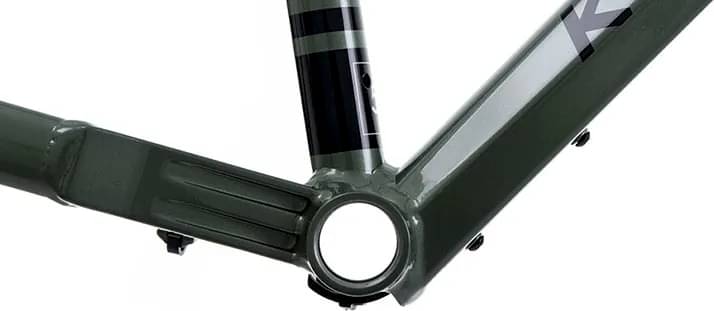

Bottom Bracket
BSA threaded BB for real world low maintenance riding.
Wheels
Tires

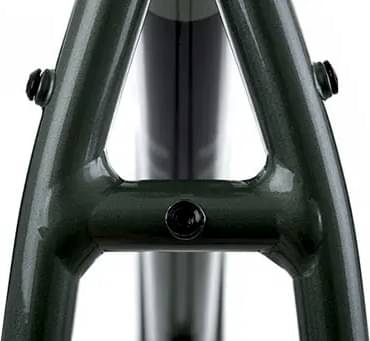

Seat stay mounts for mudguards and pannier racks. Bridges on chain stay and seat stay for fender mounting, runs 40mm tyres with full mudguards for clean winter riding!
Brakes
Brakes
22mm long flat mount disc brake bolts required for the frame.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 55.5cm | 57cm | 60cm | 63cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.47 mm | 1.52 mm | 1.54 mm | 1.57 mm | 1.61 mm | 1.63 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 593.3 mm | 604.5 mm | 616 mm | 616 mm | 626 mm | 636.9 mm | 646.8 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 81 mm | 78 mm | 84 mm | 83 mm | 78 mm | 75 mm | 75 mm |
| Stack | 534.9 mm | 550.9 mm | 574.4 mm | 586.2 mm | 598 mm | 623.7 mm | 637.9 mm |
| Reach | 365.2 mm | 375.6 mm | 378.8 mm | 379.7 mm | 380.6 mm | 387.8 mm | 392.3 mm |
| Top Tube Length | 520 mm | 535 mm | 545 mm | 555 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 555 mm | 570 mm | 600 mm | 630 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 135 mm | 160 mm | 172.5 mm | 185 mm | 210 mm | 252 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1016 mm | 1027 mm | 1033 mm | 1038 mm | 1049 mm | 1060 mm | 1069 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Tripster AT FRAMESET completes the Kinesis Tripster model. There are 14 frames that carry this model name. You can easily view all of the Kinesis Tripster frames models from 2023, here.
Model range prices
Kinesis Tripster AT FRAMESET 2023 is the most economical model, with a starting price of 1095$. Kinesis Tripster ATR V3 FRAMESET 2023 on the other hand costs 2919$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel frames average price
According to our math, the average price for a trustworthy Gravel frame is 1505$. However, this doesn’t mean that if you spend less money on a Gravel frame, you couldn’t get a decent one. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1095$. Comparing this to the average Gravel frame price, we see that the price is 37.44% smaller.
Gravel frames average weight
On a deeper look, we notice that the average weight of a Gravel frame is 1.93 kg (4.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Tripster AT FRAMESET weighs 1.77 kg (3.9 lbs) and is a bit lighter than the average. In conclusion, the average Gravel frame weighs 9.04% more than Tripster AT FRAMESET.
Tripster AT FRAMESET components
Brakes
For your safety, it is important to have quality breaks on your bike. Kinesis Tripster AT FRAMESET has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
