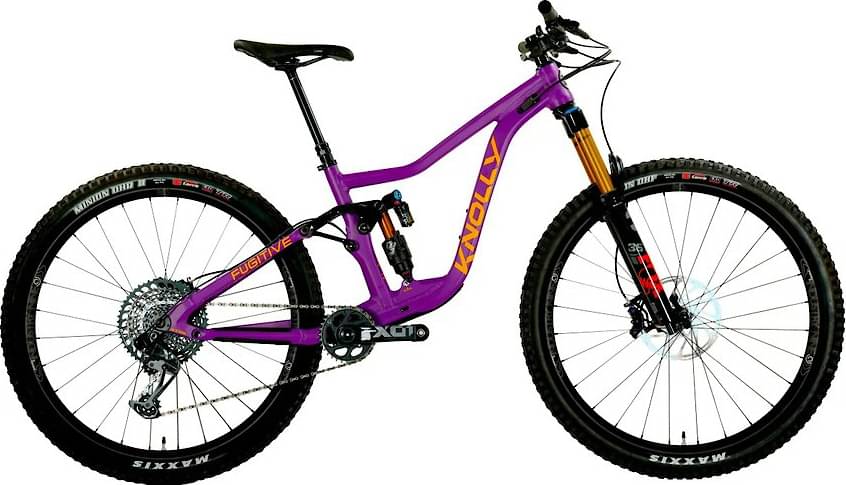

Knolly Fugitive 138 Dawn Patrol (DP) 2021
2021 Mountain
Estimate price |
5,310$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 138mm -
Fork RockShox Lyrik Ultimate
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Lyrik Ultimate RC2, 42mm offset
Rear Shock
Options: RockShox Super Deluxe Ultimate RCT, FOX FLOAT X2 Factory
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-50 tooth
Crank
SRAM GX Eagle DUB, 170mm length
Bottom Bracket
SRAM DUB, 73mm English/BSA threaded
Chain
SRAM GX Eagle, 12-speed
Pedals
None
Wheels
Front Hub
Spank Oozy Trail 345 wheelset, 110x15mm Boost front, 157x12mm SuperBoost rear with XD driver
Rear Hub
Spank Oozy Trail 345 wheelset, 110x15mm Boost front, 157x12mm SuperBoost rear with XD driver
Rims
Spank Oozy Trail 345 wheelset, 32 hole
Spokes
Spank Oozy Trail 345 wheelset, J-bend
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, 29" x 2.3", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, 29" x 2.3"
Brakes
Brakes
SRAM Code R, 4-piston, SRAM CenterLine rotors (200mm front, 180mm rear)
Brake Levers
SRAM Code R
Cockpit
Stem
Spank Split, 50mm length, 35mm bar clamp
Handlebar
Spank Oozy, 800mm width, 25mm rise, 35mm clamp diameter
Grips
Spank Spike 33
Headset
Cane Creek 40 Series, ZS44 upper, ZS56 lower
Seat
Saddle
Spank Oozy 280
Seatpost
RockShox Reverb Stealth dropper, 175mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.27 mm | 1.23 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 628 mm | 628 mm | 633 mm | 639 mm |
| Reach | 446 mm | 472 mm | 497 mm | 520 mm |
| Seat Tube Angle | 76.7 ° | 76.7 ° | 76.7 ° | 76.7 ° |
| Seat Tube Length | 355 mm | 400 mm | 456 mm | 500 mm |
| Head Tube Angle | 65.75 ° | 65.75 ° | 65.75 ° | 65.75 ° |
| Head Tube Length | 98 mm | 98 mm | 103 mm | 110 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1191 mm | 1218 mm | 1244 mm | 1270 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 696 mm | 724 mm | 775 mm | 788 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Fugitive 138 Dawn Patrol (DP) is part of the Knolly Fugitive model. 21 bikes variations carry this model name so far. You can easily view all of the Knolly Fugitive bikes models from 2021, here.
Model range prices
Knolly Fugitive 138 Dawn Patrol (DP) 2021 is the most economical model, with a starting price of 5310$. Knolly Fugitive 138 Extra Credit (EC) 2021 on the other hand costs 6210$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 5310$. In conclusion, this bike price is 92.25% more expensive than the price of the average Trail bike.
Overview of components
Fork
The RockShox Lyrik Ultimate is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Fugitive 138 Dawn Patrol (DP) has a rear shock with a travel of 138mm. The model Options: RockShox Super Deluxe Ultimate RCT is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Fugitive 138 Dawn Patrol (DP) bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Knolly Fugitive 138 Dawn Patrol (DP) is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Knolly Fugitive 138 Dawn Patrol (DP) includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
