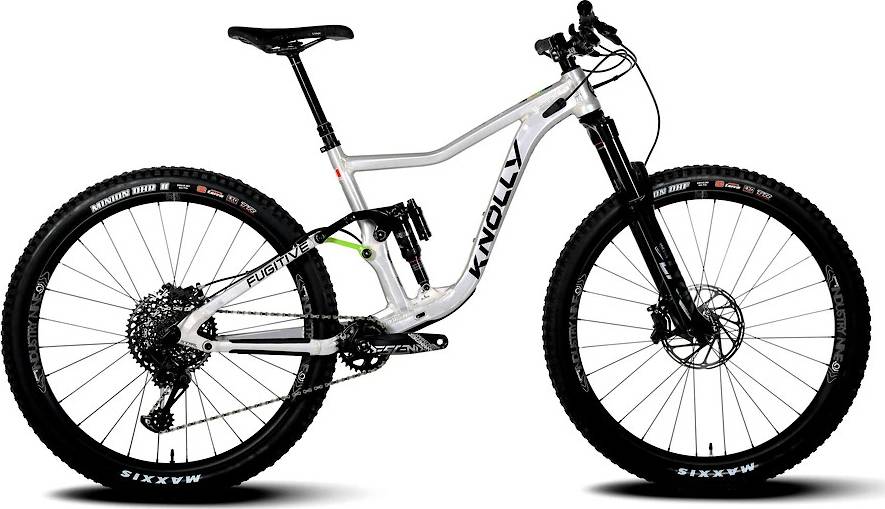

Knolly Fugitive Dawn Patrol 2020
2020 Mountain
Estimate price |
4,580$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike Ultimate RC2, 42mm offset
Rear Shock
Trunnion mount, 185mm x 50mm, Options: RockShox Super Deluxe Ultimate RCT, FOX FLOAT DPS Factory
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-50 tooth
Crank
Truvativ Descendant 7k DUB, 170mm length
Bottom Bracket
SRAM DUB SB+, 73mm BSA threaded
Chain
SRAM GX Eagle, 12-speed
Pedals
N/A
Wheels
Front Hub
Spank Oozy Trail 345 wheelset, j-bend, 32-hole, 6-bolt rotor mounts, 110x15mm Boost front, 157x12mm SuperBoost rear, Options: Industry Nine 1/1, j-bend, 28 hole, 6-bolt rotor mounts; Industry Nine Hydra, straight-pull, 28 hole, 6-bolt rotor mounts
Rear Hub
Spank Oozy Trail 345 wheelset, j-bend, 32-hole, 6-bolt rotor mounts, 110x15mm Boost front, 157x12mm SuperBoost rear, Options: Industry Nine 1/1, j-bend, 28 hole, 6-bolt rotor mounts; Industry Nine Hydra, straight-pull, 28 hole, 6-bolt rotor mounts
Rims
Spank Oozy Trail 345 wheelset, 32 hole, Option: Industry Nine Enduro-S, 28 hole
Spokes
Spank Oozy Trail 345 wheelset, j-bend, Options: Industry Nine Enduro-S wheelset, j-bend (1/1 hubs) or straight-pull (Hydra hubs)
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, 29" x 2.3", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, 29" x 2.3"
Brakes
Brakes
SRAM G2 Ultimate, 4-piston, SRAM CenterLine 180mm 6-bolt rotors
Brake Levers
SRAM G2 Ultimate
Cockpit
Stem
Chromag Hi-Fi, 35mm bar clamp, 50mm length
Handlebar
Chromag OSX, 35mm clamp diameter, 800mm width, 20mm rise
Grips
Chromag Basis, black
Headset
Cane Creek 40 Series, ZS44 upper, ZS56 lower
Seat
Saddle
Chromag Lynx DT
Seatpost
RockShox Reverb Stealth dropper, 175mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.36 mm | 1.29 mm | 1.24 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Stack | 618 mm | 618 mm | 622.5 mm | 629 mm |
| Reach | 427 mm | 456 mm | 483 mm | 506 mm |
| Top Tube Length | 583 mm | 612 mm | 640 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 355 mm | 400 mm | 456 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 98 mm | 98 mm | 103 mm | 110 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1162 mm | 1190 mm | 1220 mm | 1245 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Fugitive Dawn Patrol is a Knolly Fugitive model. Knolly launched 21 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Knolly Fugitive Dawn Patrol 2020 is the most affordable bike of this model and has a price of 4580$. On the other hand, Knolly Fugitive LT Extra Credit 2020, is the most expensive and costs 5400$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Knolly released this model in 2020, its price was 4580$. Doing a quick comparison, we notice that Fugitive Dawn Patrol price is 65.82% higher than the average cost of a Trail bike.
Overview of components
Fork
This bike has the RockShox Pike Ultimate fork installed. The fork’s travel is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Trunnion mount, with a travel distance of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Fugitive Dawn Patrol 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Knolly Fugitive Dawn Patrol includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
