Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 155mm -
Fork RockShox Yari RC
-
Groupset GX, NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Yari, Boost 15mm x 110mm
Rear Shock
RockShox Monarch RT, 200mm x 57mm, 21.8mm x M8 upper mount, 21.8mm x M6 lower mount
Drivetrain
Rear Derailleur
SRAM GX, long cage, 11-speed
Front Derailleur
E-type direct mount (none included)
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM PG-1130, 11-42 tooth, 11-speed
Crank
Race Face Ride, 175mm
Bottom Bracket
73mm threaded
Chain
SRAM PC-1110
Chain Guide
None included
Pedals
None included
Wheels
Front Hub
Spank Oozy Trail 345 wheelset, Spike j-hook, 15mm x 110mm front, 12mm x 142mm rear
Rear Hub
Spank Oozy Trail 345 wheelset, Spike j-hook, 15mm x 110mm front, 12mm x 142mm rear
Rims
Spank Oozy Trail 345 wheelset, 30mm inner width, 32 hole
Spokes
Spank Oozy Trail 345 wheelset, triple butted
Tires
Front: Maxxis Minion DHF 27.5 x 2.50" WT, MaxxTerra 3C, 60 tpi, EXO, TR, Rear: Maxxis Minion DHR II 27.5 x 2.30", MaxxTerra 3C, 60 tpi, EXO, TR
Brakes
Brakes
SRAM Guide T with Centerline rotors (200mm front and 180mm rear)
Brake Levers
SRAM Guide T
Cockpit
Stem
Race Face Ride 35mm, 50mm length
Handlebar
Race Face Chester 35mm, 20mm rise, 780mm width
Grips
Spank Spoon lock-on
Headset
Acros AZX-203 R4 low, black, zero stack
Seat
Saddle
Chromag Lynx DT
Seatpost
Race Face Aeffect R 150mm dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.27 mm | 1.26 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Stack | 592 mm | 599 mm | 599 mm | 613 mm |
| Reach | 418 mm | 444 mm | 471 mm | 485 mm |
| Top Tube Length | 588 mm | 616 mm | 643 mm | 660 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 373 mm | 419 mm | 476 mm | 515 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 103 mm | 110 mm | 110 mm | 125 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1145 mm | 1174 mm | 1201 mm | 1219 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 697 mm | 720 mm | 753 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

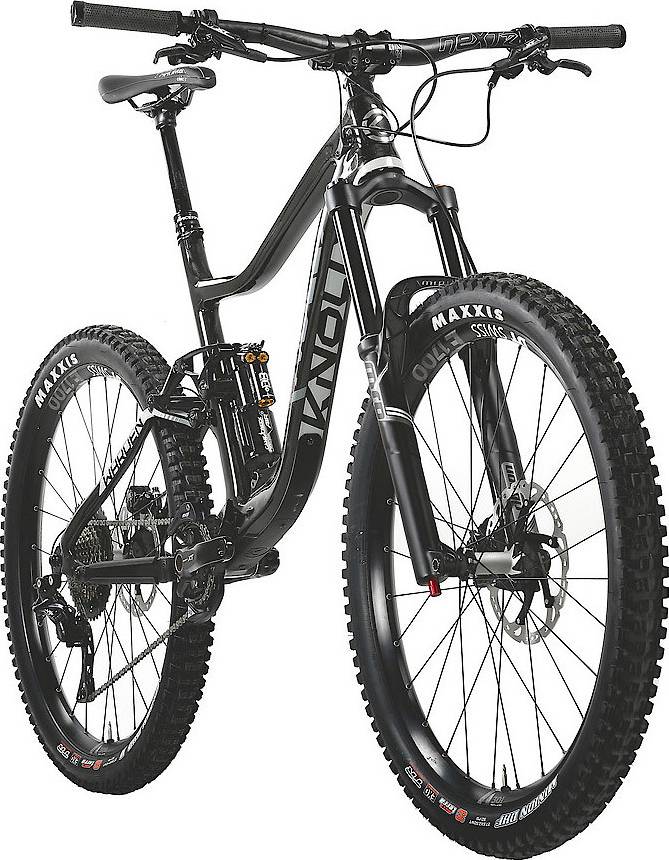

Warden Carbon GC completes the Knolly Warden model. There are 23 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Knolly Warden GC 2019 has a starting price of 3608$. Knolly Warden Carbon Supreme Leader 2019 on the other hand is the most expensive at 8494$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Knolly released this model in 2019, its price was 4472$. Comparing this to the average Enduro bike price, we see that the price is 24.26% higher.
Warden Carbon GC components
Fork
Knolly Warden Carbon GC 2019 bike is equipped with the RockShox Yari RC fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Monarch RT, with a travel distance of 155mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Warden Carbon GC model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Knolly Warden Carbon GC has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Warden Carbon GC comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Knolly Warden Carbon GC comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
