Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Yari RC
-
Groupset GX, NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
RockShox Yari Solo Air 120mm Tapered 110mm Spacing
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM GX
Front Derailleur
n/a
Shift Levers
SRAM NX
Cassette
SRAM PG1130 11-42t 11spd
Crank
30t Narrow/Wide
Bottom Bracket
Shimano PF92
Chain
SRAM PC1110
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano Deore 110x15mm
Rear Hub
Shimano Deore 148x12mm
Rims
WTB Scraper i40
Spokes
Stainless Black 14g
Tires
Schwalbe Nobby Nic TLE 27.5x2.8"
Brakes
Brakes
Shimano Hydraulic
Brake Levers
Shimano Hydraulic
Disk Rotors
Shimano Deore 180mm (centerlock)
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Race Light LOG
Headset
FSA No.57B
Seat
Saddle
WTB Volt Sport
Seatpost
KS Eten Integra 31.6mm w/Shim for 34.9 ST
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.33 mm | 1.25 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 708 mm | 737 mm | 765 mm | 804 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 618 mm | 627 mm | 636 mm | 645 mm |
| Reach | 429 mm | 454 mm | 479 mm | 514 mm |
| Top Tube Length | 593 mm | 621 mm | 648 mm | 686 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1121 mm | 1150 mm | 1179 mm | 1217 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 729 mm | 729 mm | 739 mm | 764 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model

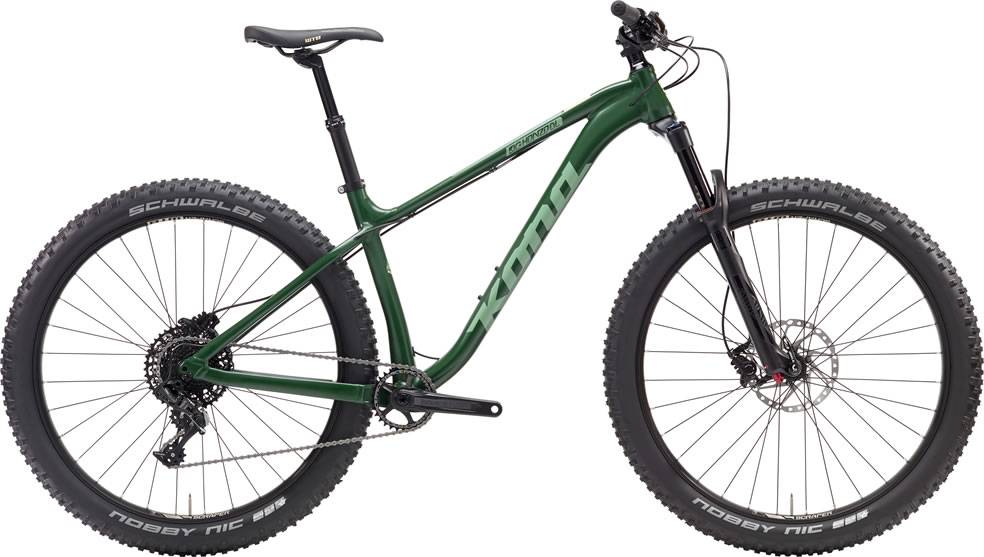

Big Honzo DL completes the Kona Big Honzo model. There are 19 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Kona Big Honzo 2017 is the cheapest bike model and costs 1699$. Kona Big Honzo DL 2017 is the most expensive one and costs 2399$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2399$. In conclusion, this bike price is 15.13% smaller than the price of the average Trail bike.
Overview of components
Fork
Kona Big Honzo DL 2017 bike is equipped with the RockShox Yari RC fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Kona Big Honzo DL 2017, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona Big Honzo DL has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Big Honzo DL. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
