Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 160mm -
Fork Fox Float 36
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Clump 7005 Aluminum Magic 6+2 System
Suspension Fork
Fox 36 Float R 160mm
Rear Shock
Fox Float RP23 (7.5 x 2.0)
Drivetrain
Rear Derailleur
Shimano SLX
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano HG50 (11-34, 9spd)
Crank
Guard/36/24 (44/32/22 for Europe only)
Bottom Bracket
FSA Moto Integrated
Chain
Shimano Deore
Pedals
Shimano M505 Clipless
Wheels
Front Hub
Formula Disc
Rear Hub
Shimano M525 Disc
Rims
Sun EQ 2.9SL
Spokes
Sandvik Stainless 14g
Tires
Maxxis 26x2.5 DHF front/ 26x2.35 High Roller rear
Brakes
Brakes
Shimano M575 Disc 7"
Brake Levers
Shimano M575 Disc
Cockpit
Stem
Kona XC/BC (6°± ; 15=60mm, 17-20=75mm)
Handlebar
Kona BC/OB Riser (31.8mm x 710mm)
Grips
Kona LOG
Headset
FSA Gravity SX
Seat
Saddle
WTB Pure V Comp
Seatpost
Kona XC/BC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 381 | 43.2cm | 45.7cm | 48.3cm | 53.3cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm | 358 mm | 358 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Top Tube Length | 551 mm | 571 mm | 582 mm | 593 mm | 603 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 457 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 125 mm | 130 mm | 130 mm | 135 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Bottom Bracket Drop | -15 mm | -15 mm | -15 mm | -15 mm | -15 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

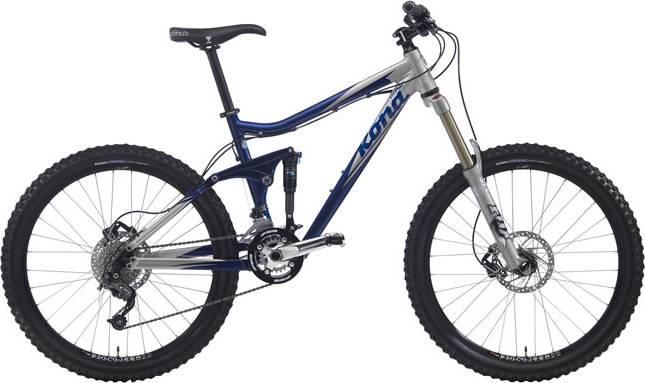

COILAIR belongs to the Kona Coilair model. Kona launched 5 bikes of this model so far. Take a sneak peek at all Kona Coilair bikes models from 2010, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
Kona COILAIR 2010 bike is equipped with the Fox Float 36 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Kona COILAIR 2010, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona COILAIR has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
