Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" -
Travel Front 140mm -
Travel Rear 150mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Scandium Butted, 6" Travel w/Mag Rockers
Suspension Fork
RockShox Recon 335 Solo Air 140mm
Rear Shock
Fox Float RP2 (7.875 x 2.0)
Drivetrain
Rear Derailleur
Shimano XT Shadow
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano Deore (11-34, 9spd)
Crank
44/32/22
Bottom Bracket
Shimano SLX
Chain
KMC HG53
Pedals
Shimano M520 Clipless
Wheels
Front Hub
Formula Disc
Rear Hub
Shimano M525 Disc
Rims
Sun EQ 2.1 SL
Spokes
Sandvik Stainless 14g
Tires
Maxxis Aspen 26 x 2.25 Kevlar
Brakes
Brakes
Shimano M575 Disc 7"
Brake Levers
Shimano M575 Disc
Cockpit
Stem
Kona XC/BC (6°± ; 15"=75mm, 17-19"=90mm, 20-22=105mm)
Handlebar
Kona XC/BC Riser (31.8mm x 660mm Wide)
Grips
Kona LOG
Headset
FSA Gravity SXE
Seat
Saddle
WTB Speed V Comp
Seatpost
Kona XC/BC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 381 | 43.2cm | 45.7cm | 48.3cm | 50.8cm | 55.9cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 359 mm | 359 mm | 359 mm | 359 mm | 359 mm | 359 mm |
| Front Center | 664 mm | 690 mm | 702 mm | 716 mm | 722 mm | 730 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Top Tube Length | 566 mm | 592 mm | 604 mm | 617 mm | 624 mm | 631 mm |
| Seat Tube Angle | 71.7 ° | 71.7 ° | 71.7 ° | 71.7 ° | 71.7 ° | 71.7 ° |
| Seat Tube Length | 381 mm | 432 mm | 457 mm | 483 mm | 508 mm | 559 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1095 mm | 1121 mm | 1134 mm | 1147 mm | 1154 mm | 1161 mm |
| Bottom Bracket Drop | -16 mm | -16 mm | -16 mm | -16 mm | -16 mm | -16 mm |
| Standover Height | 809 mm | 766 mm | 772 mm | 802 mm | 812 mm | 838 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
About this model

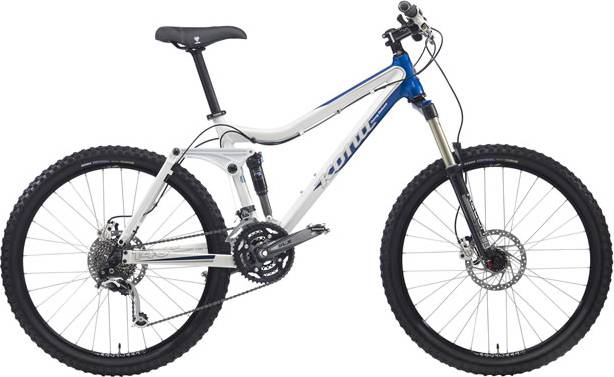

DAWG DELUXE completes the Kona Dawg model. Kona released 3 bikes variations of this model so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float RP2 (7.875 x 2.0) rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The DAWG DELUXE 2010 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona DAWG DELUXE has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
