Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, Alivio -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 7005 Aluminum Butted
Suspension Fork
Kona Project Two Aluminum
Drivetrain
Rear Derailleur
Shimano Deore SGS
Front Derailleur
Shimano Alivio
Shift Levers
Shimano Alivio
Cassette
Shimano HG30 11-32 9 spd
Crank
48/38/28
Bottom Bracket
FSA
Chain
Shimano HG53
Pedals
Wellgo LU-A9
Wheels
Front Hub
Formula Disc
Rear Hub
Shimano M475 Disc
Rims
Alex DC-25
Spokes
Sandvik Stainless 15g fr / 14g rr
Tires
Continental CityRIDE 700x32C
Brakes
Brakes
Tektro Draco Hydraulic
Brake Levers
Tektro Draco Hydraulic
Disk Rotors
Tektro Draco 160mm
Cockpit
Stem
Kona Commuter Stem
Handlebar
Kona Commuter Riser
Grips
Kona Race Light
Headset
FSA
Seat
Saddle
Kona Comfort
Seatpost
Kona Double Clamp w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 53cm | 56cm | 59cm | 61cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 281 mm | 281 mm | 284 mm | 284 mm | 287 mm | 287 mm |
| Front Center | 596 mm | 602 mm | 605 mm | 621 mm | 626 mm | 647 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 518 mm | 528 mm | 543 mm | 558 mm | 578 mm | 598 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 510 mm | 540 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 185 mm | 205 mm | 220 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1019 mm | 1026 mm | 1029 mm | 1045 mm | 1052 mm | 1072 mm |
| Standover Height | 709 mm | 732 mm | 763 mm | 793 mm | 818 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

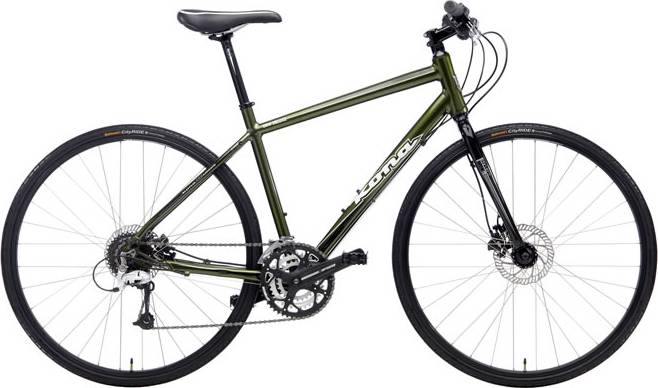

About this model
DEW DELUXE is a Kona Dew model. 58 bikes variations carry this model name so far. You can easily view all of the Kona Dew bikes models from 2011, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter bikes average price
According to our math, the average price for a trustworthy Commuter bike is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
DEW DELUXE components
Fork material
DEW DELUXE has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the DEW DELUXE model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The DEW DELUXE has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
