Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore, Shimano -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

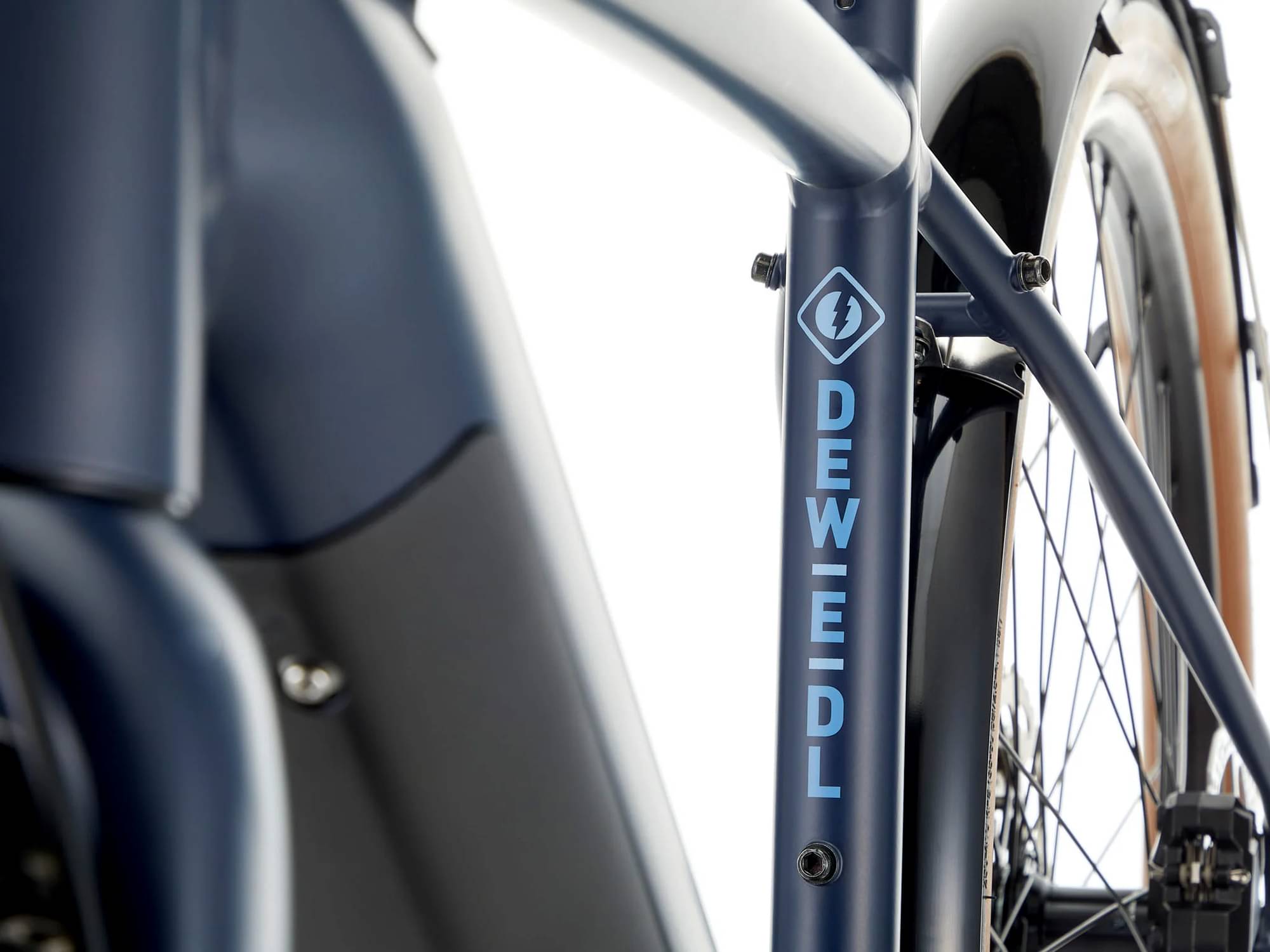

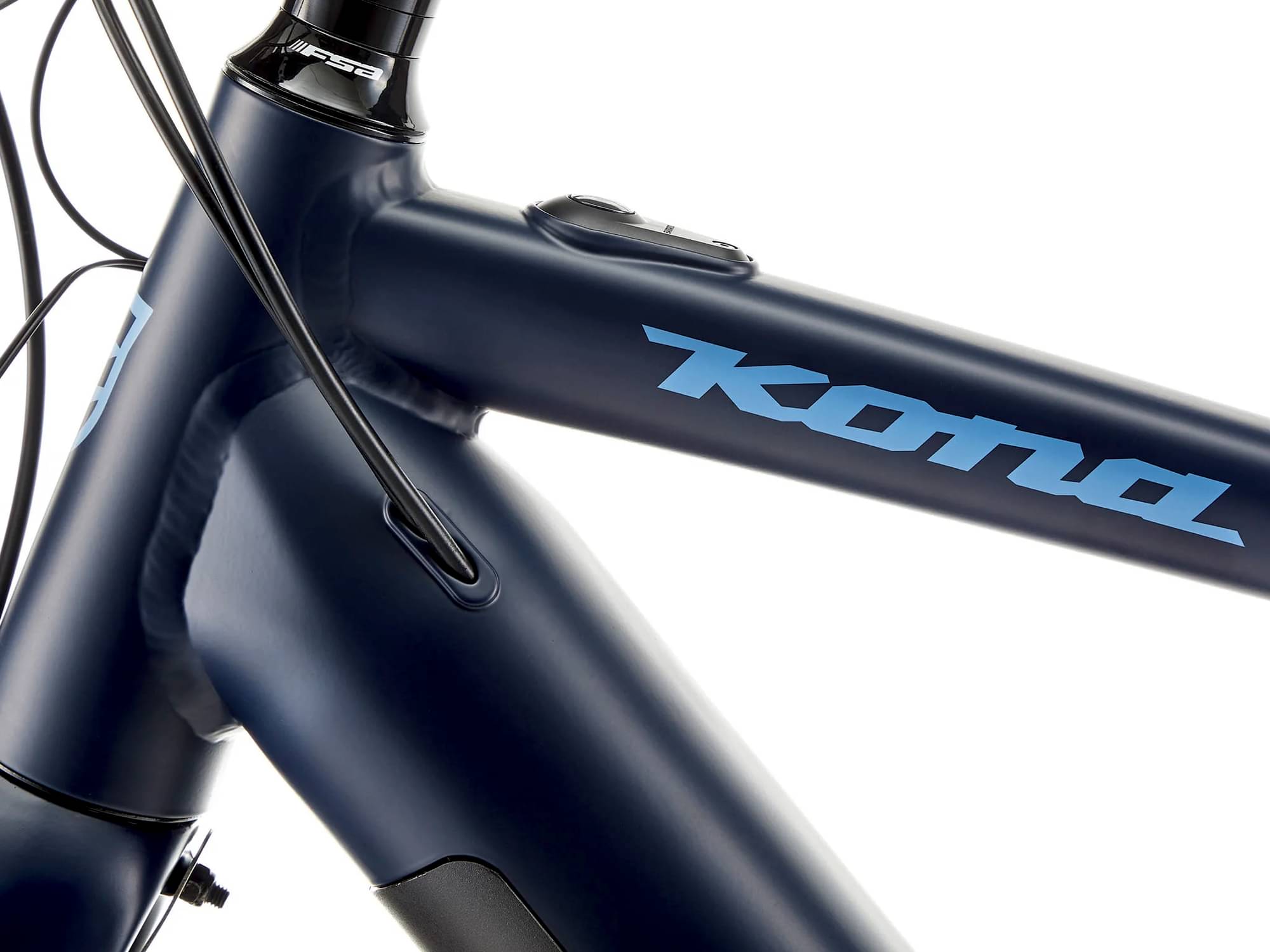

Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Kona Rove Verso Full Carbon Flat Mount Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-46t 10spd
Crank
Shimano E6100, 38t
Bottom Bracket
n/a
Chain
Shimano HG54
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano Tiagra 100x12mm
Rear Hub
Shimano Tiagra 142x12mm
Rims
WTB ST i23 TCS 2.0
Spokes
Stainless 14g
Tires
Front: WTB Horizon TCS w/ Puncture Protection 650x47c, Rear: WTB Horizon TCS w/ Puncture Protection 650x47c
Brakes
Brakes
Shimano Hydraulic
Brake Levers
Shimano MT201 Hydraulic
Cockpit

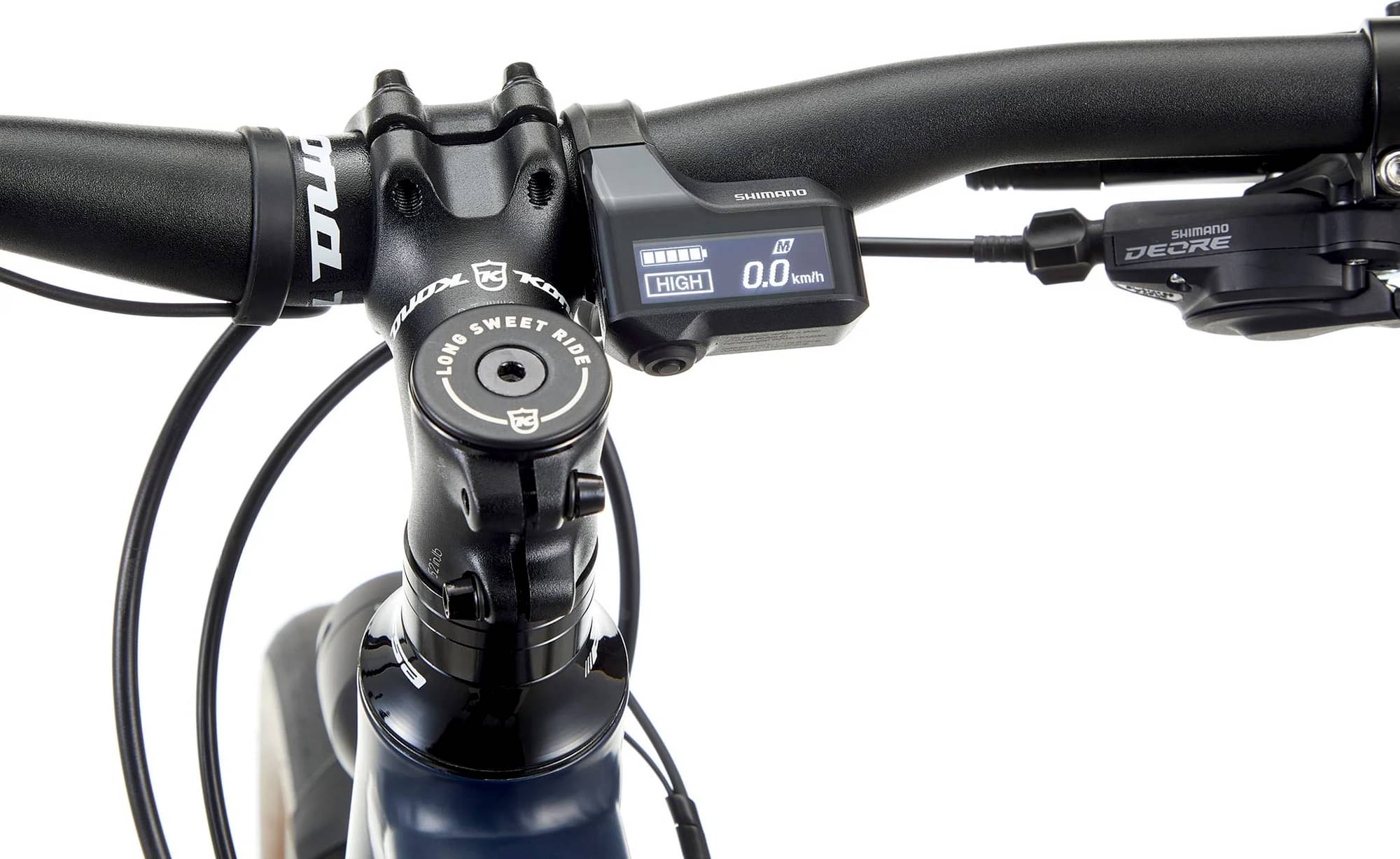

Stem
Kona Control
Handlebar
Kona Aluminum Riser
Grips
Kona Key Grip
Headset
FSA No.57BP
Seat
Saddle
WTB Volt
Seatpost
Kona Commuter 31.6mm
Motor & Battery

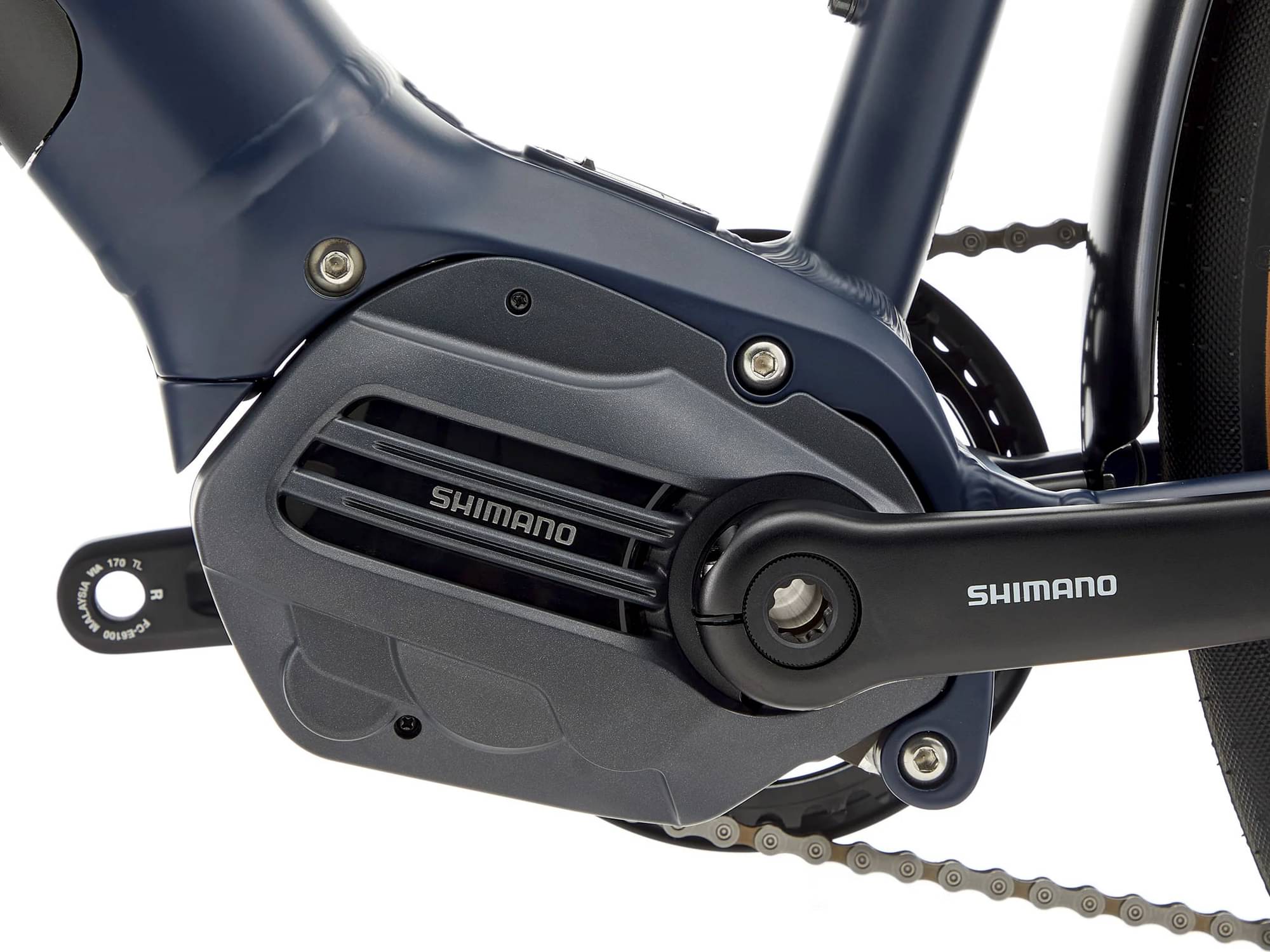

Motor
Shimano E6100 20MPH

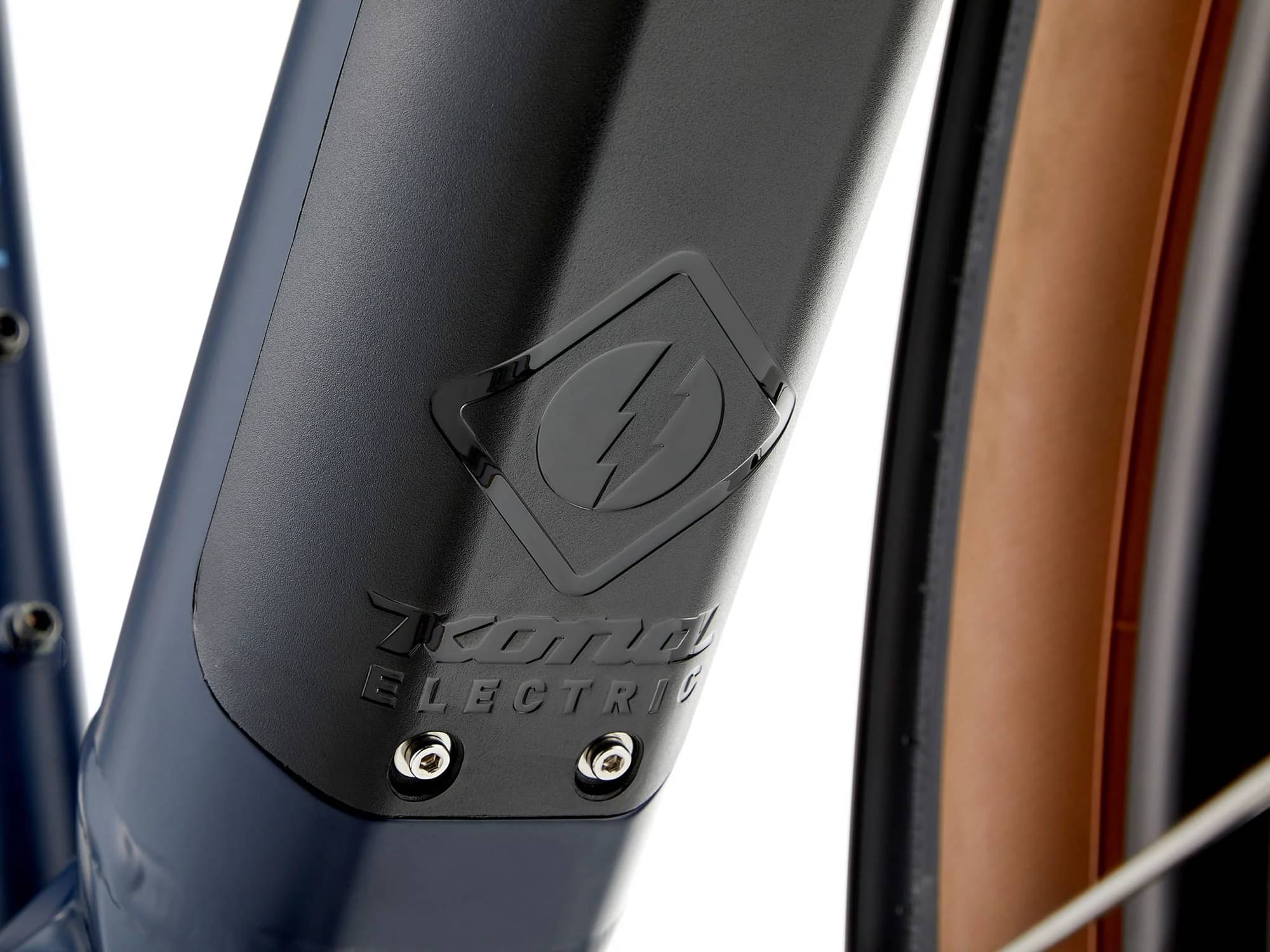

Battery
Shimano 504Wh
Charger
Shimano STEPS 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.34 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 638 mm | 675 mm | 705 mm | 736 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 551 mm | 582 mm | 620 mm | 639 mm |
| Reach | 407 mm | 433 mm | 449 mm | 474 mm |
| Top Tube Length | 554 mm | 599 mm | 638 mm | 681 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 72 ° |
| Seat Tube Length | 420 mm | 470 mm | 520 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 168 mm | 208 mm | 228 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1084 mm | 1121 mm | 1151 mm | 1183 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 703 mm | 744 mm | 789 mm | 833 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Dew-E DL completes the Kona E Dew model. Kona launched 10 e-bikes of this model so far. You can easily view all of the Kona E Dew e-bikes models from 2023, here.
Model range prices
Kona Dew HD 2023 is the most economical model, with a starting price of 1999$. Kona Dew-E DL 2023 on the other hand costs 3999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 3999$. If we compare this with the average Commuter e-bike cost we notice that the price is 55.66% higher.
Dew-E DL components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Kona Dew-E DL 2023, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.

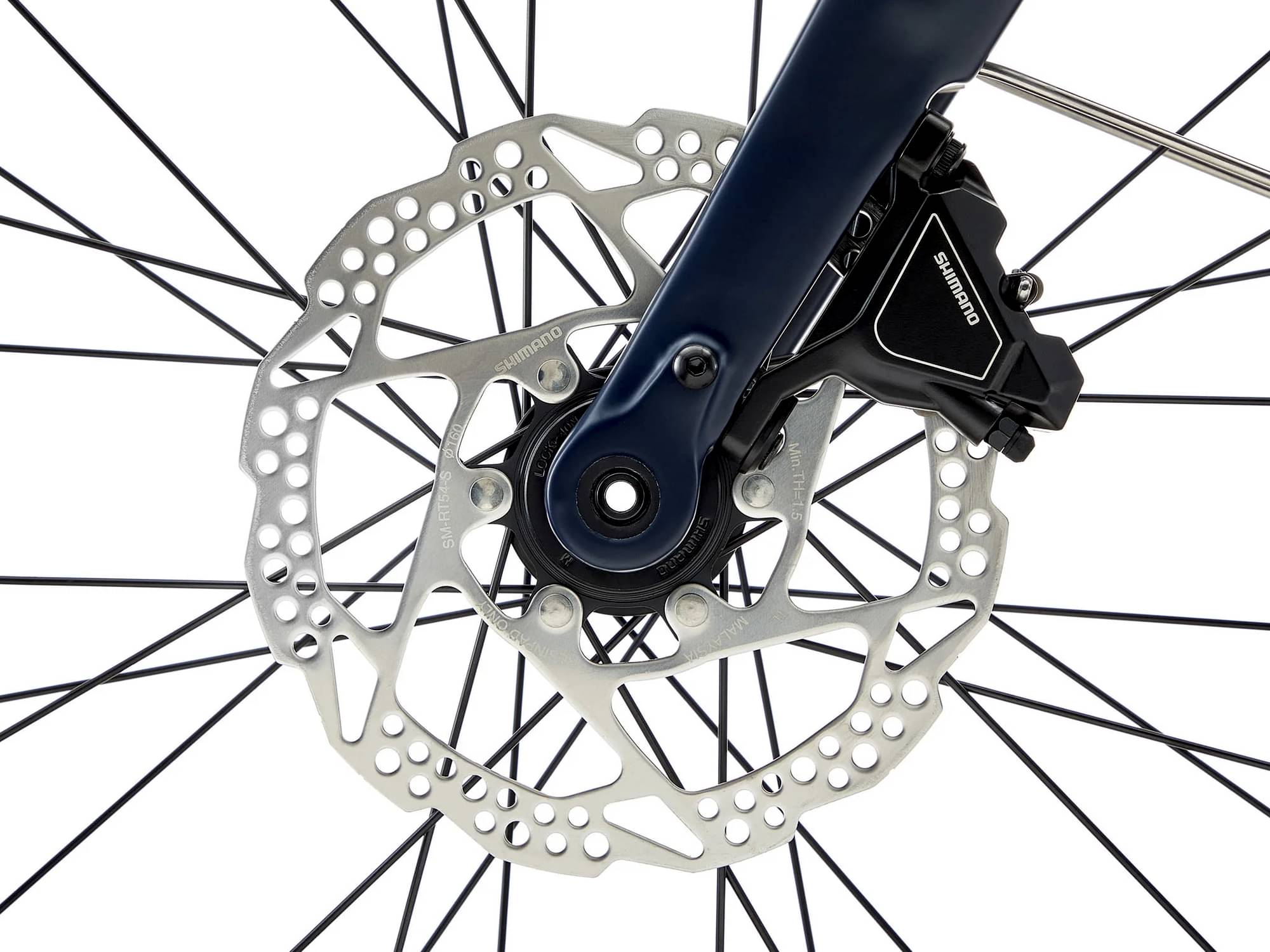

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Dew-E DL comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
