Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 7005 Aluminum Butted
Suspension Fork
Kona Carbon Race Disc
Drivetrain
Shift Levers
Shimano Alfine
Cassette
Shimano SM-Gear 18T
Crank
42T w/Chainguard
Bottom Bracket
FSA Vero
Chain
KMC Z-50
Pedals
Victor VP-198
Wheels
Front Hub
Shimano Disc
Rear Hub
Shimano Alfine 8 Speed Internal, Disc
Rims
Freedom Ryder 21
Spokes
Sandvik Stainless 15g fr / 14g rr
Tires
Continental Contact 700x32C
Brakes
Brakes
Shimano M445 Hydraulic Disc/Alfine Disc
Brake Levers
Shimano M445 Hydraulic
Disk Rotors
Shimano 160mm
Cockpit
Stem
Kona XC/Road Light Deluxe Stem
Handlebar
Kona Deluxe Energy Bar or Kona Handplant
Grips
Kona Race Light
Headset
FSA
Seat
Saddle
WTB Valcon Comp
Seatpost
Kona Deluxe Double Clamp w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 53cm | 56cm | 59cm | 61cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 276 mm | 276 mm | 279 mm | 279 mm | 282 mm | 282 mm |
| Front Center | 597 mm | 603 mm | 605 mm | 622 mm | 627 mm | 647 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 518 mm | 528 mm | 543 mm | 558 mm | 578 mm | 598 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 510 mm | 540 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 185 mm | 205 mm | 220 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1020 mm | 1027 mm | 1030 mm | 1046 mm | 1052 mm | 1072 mm |
| Standover Height | 707 mm | 730 mm | 761 mm | 790 mm | 814 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

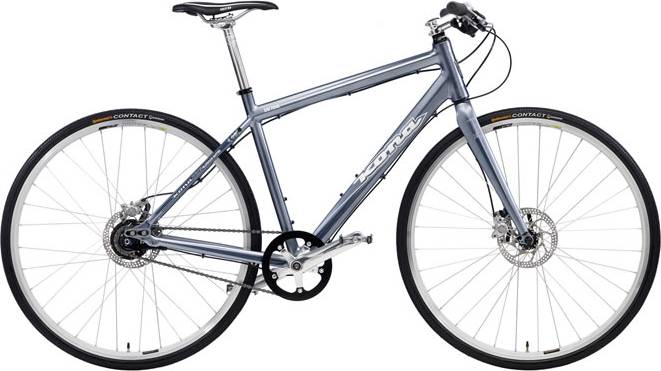

DR FINE is a Kona Dr model. Kona launched 8 bikes of this model so far. Check out the entire range from 2011 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
DR FINE components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Kona DR FINE 2011, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
