Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 7005 Aluminum Butted
Suspension Fork
Kona Carbon Race Disc
Rear Shock
N/A
Drivetrain
Shift Levers
Shimano Alfine
Cassette
Shimano SM-Gear 18T
Crank
42T/Chainguard
Bottom Bracket
FSA Vero
Chain
KMC Z50
Pedals
Victor VP-198
Wheels
Front Hub
Shimano Disc
Rear Hub
Shimano Alfine 8 Speed Internal, Disc
Rims
Freedom Ryder 21
Spokes
Sandvik Stainless 15g fr / 14g rr
Tires
Continental Contact 700x32C
Brakes
Brakes
Shimano M446 Hydraulic Disc
Brake Levers
Shimano M445 Hydraulic
Disk Rotors
Shimano 160mm
Cockpit
Stem
Kona XC/Road Light Deluxe Stem
Handlebar
Kona Deluxe Energy Bar or Kona Stubby
Grips
Kona Race Light
Headset
FSA
Seat
Saddle
WTB Valcon Comp
Seatpost
Kona Deluxe Double Clamp w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C46cm | C49cm | C53cm | C56cm | C59cm | C61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.51 mm | 1.54 mm | 1.59 mm | 1.61 mm | 1.59 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 284 mm | 284 mm | 287 mm | 287 mm |
| Front Center | 598 mm | 605 mm | 606 mm | 623 mm | 627 mm | 647 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 532 mm | 551 mm | 571 mm | 599 mm | 619 mm | 634 mm |
| Reach | 365 mm | 365 mm | 370 mm | 376 mm | 385 mm | 400 mm |
| Top Tube Length | 517 mm | 527 mm | 542 mm | 557 mm | 577 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 530 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 185 mm | 205 mm | 220 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1021 mm | 1027 mm | 1030 mm | 1046 mm | 1051 mm | 1072 mm |
| Standover Height | 706 mm | 729 mm | 760 mm | 789 mm | 816 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

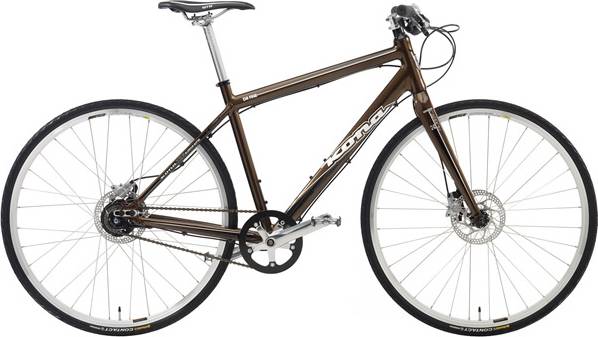

Dr Fine is part of the Kona Dr model. Kona launched 8 bikes of this model so far. You can easily view all of the Kona Dr bikes models from 2012, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter bikes
According to our math, the average price for a trustworthy Commuter bike is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Dr Fine components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Dr Fine are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
