Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Deore, Shimano -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Kona Project Two Aluminum Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-46t 10spd
Crank
Shimano E6100, 38t
Bottom Bracket
n/a
Chain
Shimano HG54
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Shimano Alivio 100x9mm
Rear Hub
Shimano Alivio 135x10mm
Rims
WTB ST i23 TCS 2.0
Spokes
Stainless 14g
Tires
WTB Horizon TCS w/ Puncture Protection 650x47c
Brakes
Brakes
Shimano Deore
Brake Levers
Shimano Deore
Disk Rotors
Shimano RT10 160mm (centerlock)
Cockpit
Stem
Kona Commuter
Handlebar
Kona Handplant
Grips
Kona Key Grip
Headset
FSA No.57BP
Seat
Saddle
Kona Commuter
Seatpost
Kona Thumb w/Offset 31.6mm
Motor & Battery
Motor
Shimano E6100 20MPH
Battery
Shimano 504Wh
Remote
Shimano SC-E6100 Display
Charger
Shimano STEPS 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.43 mm | 1.47 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm |
| Front Center | 648 mm | 670 mm | 699 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 75 mm | 75 mm | 75 mm |
| Stack | 592 mm | 611 mm | 648 mm |
| Reach | 411 mm | 426 mm | 442 mm |
| Top Tube Length | 569 mm | 600 mm | 639 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° |
| Seat Tube Length | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 155 mm | 175 mm | 215 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1094 mm | 1116 mm | 1146 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 565 mm | 582 mm | 574 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

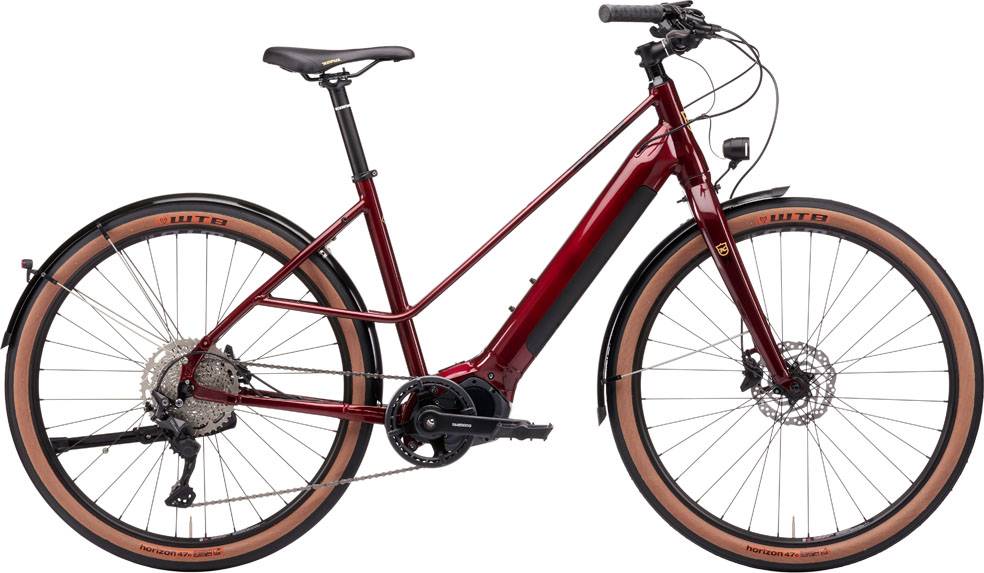

Ecoco DL is a Kona E Ecoco model. Kona released 4 e-bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Kona Ecoco 2021 is the cheapest e-bike model and costs 2899$. Kona Ecoco DL 2021 is the most expensive one and costs 3699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Cruiser e-bikes average price
According to our calculations, the average cost of a Cruiser e-bike that is reliable is 1697$. However, this doesn’t mean that if you spend less money on a Cruiser e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2021 and its price was 3699$. If we compare this with the average Cruiser e-bike cost we notice that the price is 117.97% higher.
Overview of components
Fork material
Ecoco DL has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The Ecoco DL 2021 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona Ecoco DL is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
