Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona SuperLight 7046 Aluminum Butted
Suspension Fork
Kona Carbon Road Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano 105
Shift Levers
Shimano RS505 Hydraulic
Cassette
Shimano 105 11-32t 11spd
Crank
34/50t
Bottom Bracket
Shimano R600
Chain
KMC X11
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Novatec Road 30 Disc Wheelset 100x12mm
Rear Hub
Novatec Road 30 Disc Wheelset 142x12mm
Rims
Novatec Road 30 Disc Wheelset
Spokes
Novatec Road 30 Disc Wheelset
Tires
Schwalbe S-One RaceGuard 700x30c
Brakes
Brakes
Shimano RS505 Hydraulic
Brake Levers
Shimano RS505 Hydraulic
Disk Rotors
Shimano 140mm
Cockpit
Stem
Kona Road Light
Handlebar
Kona Road
Grips
Kona Cork Tape
Headset
FSA No.42/ACB
Seat
Saddle
Kona Road
Seatpost
Kona Road w/Offset 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 271 mm | 271 mm | 273 mm | 273 mm |
| Front Center | 581 mm | 583 mm | 593 mm | 603 mm | 614 mm | 622 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 71 mm | 64 mm | 64 mm | 64 mm | 62 mm | 58 mm |
| Stack | 540 mm | 563 mm | 580 mm | 599 mm | 618 mm | 639 mm |
| Reach | 377 mm | 380 mm | 385 mm | 388 mm | 398 mm | 405 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 125 mm | 145 mm | 165 mm | 185 mm | 205 mm | 225 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 430 mm | 430 mm |
| Wheelbase | 996 mm | 998 mm | 1010 mm | 1019 mm | 1033 mm | 1042 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 74 mm | 74 mm | 72 mm | 72 mm |
| Standover Height | 740 mm | 765 mm | 785 mm | 805 mm | 825 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview

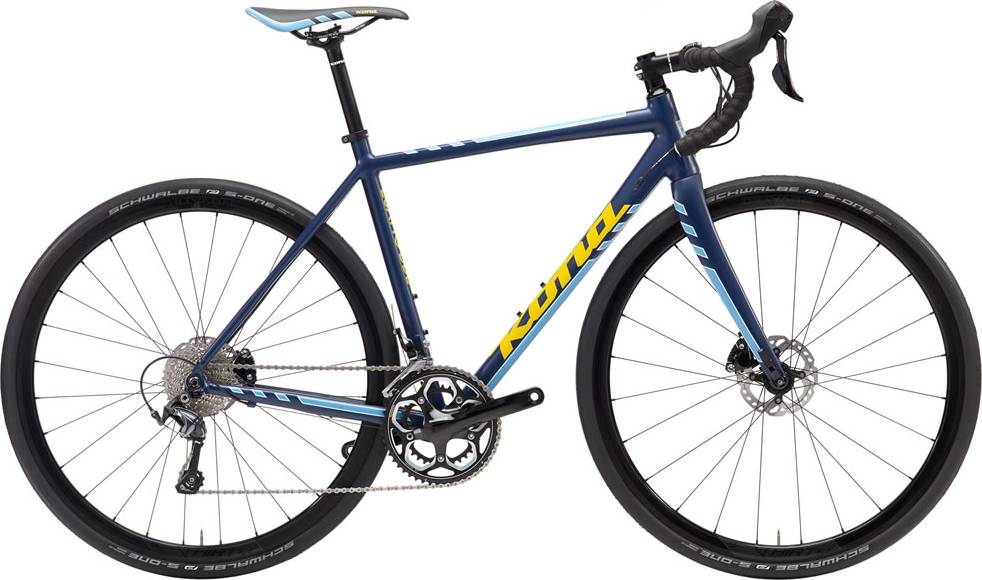

Esatto DDL completes the Kona Esatto model. Kona launched 15 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Kona Esatto 2017 has a starting price of 999$. Kona Esatto DDL 2017 on the other hand is the most expensive at 2099$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2017 for 2099$. In conclusion, this bike price is 11.77% lower than the price of the average Endurance bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Esatto DDL model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona Esatto DDL has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
