Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox
-
Groupset Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light 6061 100mm Travel
Suspension Fork
RockShox XC 32 TK Solo Air 100mm Tapered
Rear Shock
RockShox Monarch RL
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-36t 10 spd
Crank
24/38t
Bottom Bracket
Shimano Deore
Chain
KMC X10
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano
Rear Hub
Shimano Deore 142x12mm
Rims
WTB SX19
Spokes
Stainless 14g
Tires
Maxxis Ikon 29x2.2"
Brakes
Brakes
Shimano M446 Hydraulic
Brake Levers
Shimano M446 Hydraulic
Disk Rotors
Shimano 180mm
Cockpit
Stem
Kona XC/Road
Handlebar
Kona XC/BC Riser
Grips
Kona Race Light LOG
Headset
FSA No.57B-1
Seat
Saddle
WTB Volt Sport SE
Seatpost
Kona Double Clamp w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 676 mm | 689 mm | 702 mm | 714 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 87 mm | 116 mm | 131 mm |
| Stack | 583 mm | 593 mm | 611 mm | 630 mm |
| Reach | 423 mm | 446 mm | 466 mm | 486 mm |
| Top Tube Length | 570 mm | 595 mm | 620 mm | 645 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1116 mm | 1144 mm | 1142 mm | 1154 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 753 mm | 784 mm | 798 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

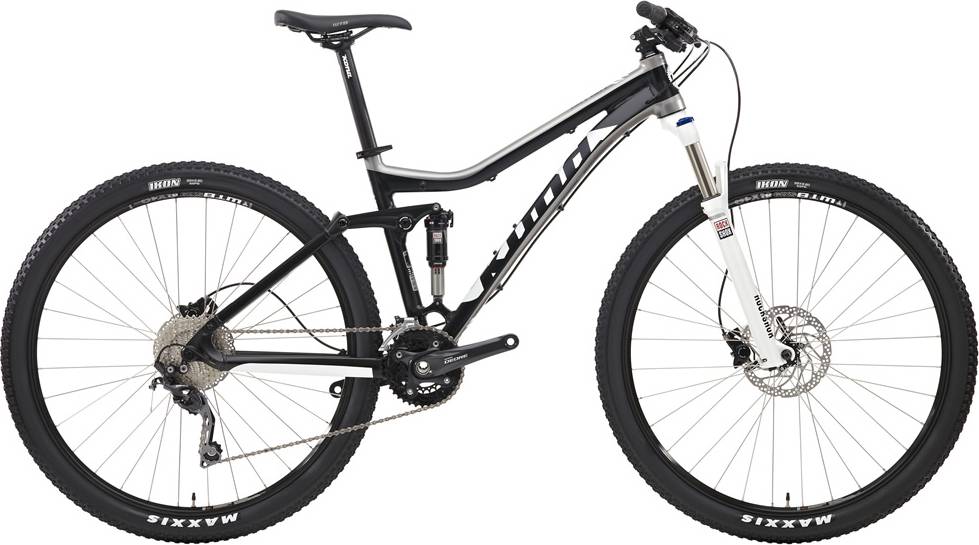

HEI HEI is a Kona Hei model. Kona released 58 bikes variations of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
Kona HEI HEI 2014 bike is equipped with the RockShox fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is RockShox Monarch RL, with a travel distance of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on HEI HEI are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
