Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Float 32
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Carbon 100mm Travel
Suspension Fork
Fox Float 32 CTD Evolution 100mm QR15 Tapered
Rear Shock
Fox Float CTD Evolution
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Front Derailleur
Shimano SLX
Shift Levers
Shimano SLX
Cassette
Shimano SLX 11-36t 10 spd
Crank
24/38t
Bottom Bracket
Shimano SLX Press Fit 92
Chain
KMC X10
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano SLX QR15
Rear Hub
Shimano SLX 142x12mm
Rims
Stan's ZTR Rapid
Spokes
Stainless 15g
Tires
Maxxis Ikon 29x2.2" Folding
Brakes
Brakes
Shimano SLX
Brake Levers
Shimano SLX
Disk Rotors
Shimano SLX 180mm (centerlock)
Cockpit
Stem
Kona XC/Road
Handlebar
Kona XC/BC Riser
Grips
Kona Race Light LOG
Headset
FSA No.57B
Seat
Saddle
WTB Volt Comp
Seatpost
Kona Double Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17" | 18" | 19" | 21" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.36 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 663 mm | 689 mm | 702 mm | 714 mm | 740 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 72 mm | 91 mm | 89 mm | 88 mm |
| Stack | 583 mm | 592 mm | 602 mm | 607 mm | 611 mm |
| Reach | 409 mm | 431 mm | 443 mm | 453 mm | 476 mm |
| Top Tube Length | 570 mm | 595 mm | 608 mm | 620 mm | 646 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 381 mm | 432 mm | 457 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 115 mm | 120 mm | 125 mm | 135 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1104 mm | 1144 mm | 1142 mm | 1154 mm | 1180 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 753 mm | 773 mm | 784 mm | 798 mm | 840 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

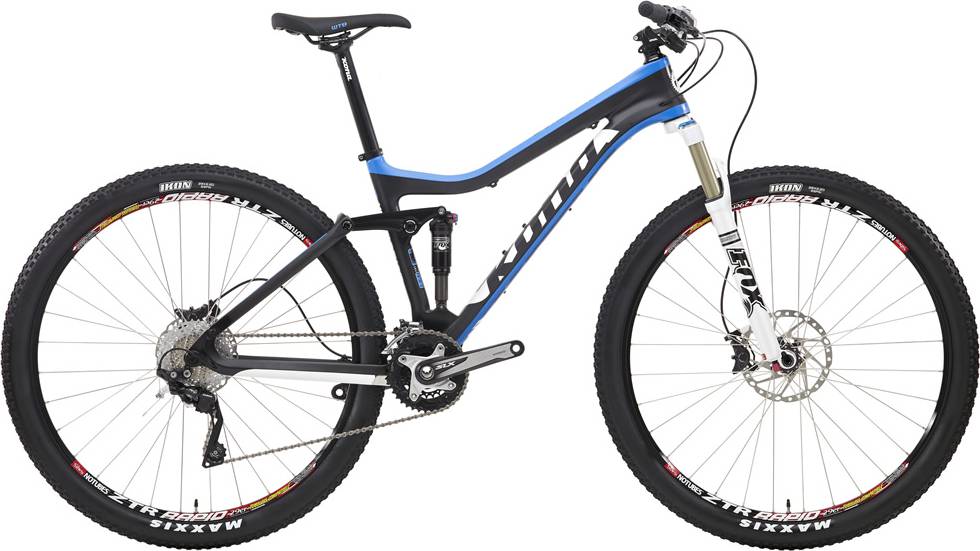

HEI HEI DELUXE is a Kona Hei model. 58 bikes variations carry this model name so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
This bike has the Fox Float 32 fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Fox Float CTD Evolution, with a travel distance of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Kona HEI HEI DELUXE 2014, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
