Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox Recon Gold RL
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Scandium 69 100mm Travel
Suspension Fork
RockShox Recon Gold TK Solo Air 100mm QR15 Tapered
Rear Shock
RockShox Monarch RL
Drivetrain
Rear Derailleur
Shimano SLX Shadow Plus
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-36t 10 spd
Crank
24/38t
Bottom Bracket
Shimano Deore
Chain
KMC X10
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano Deore QR15
Rear Hub
Shimano Deore 142x12mm
Rims
WTB ST i19 TCS
Spokes
Stainless 14g
Tires
Maxxis Ikon 29x2.2"
Brakes
Brakes
Shimano Deore
Brake Levers
Shimano Deore
Disk Rotors
Shimano 180mm (centerlock)
Cockpit
Stem
Kona XC/Road
Handlebar
Kona XC/BC Riser
Grips
Kona Race Light LOG
Headset
FSA No.57B
Seat
Saddle
WTB Volt Sport SE
Seatpost
Kona Double Clamp w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 676 mm | 689 mm | 702 mm | 714 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 87 mm | 116 mm | 131 mm |
| Stack | 583 mm | 593 mm | 611 mm | 630 mm |
| Reach | 423 mm | 446 mm | 466 mm | 486 mm |
| Top Tube Length | 570 mm | 595 mm | 620 mm | 645 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1116 mm | 1144 mm | 1142 mm | 1154 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 753 mm | 784 mm | 798 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

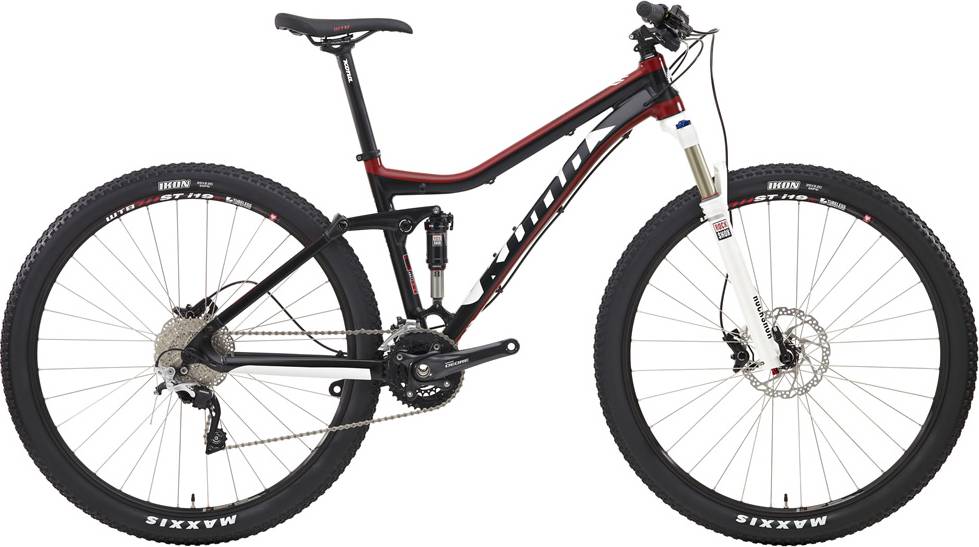

HEI HEI HEI completes the Kona Hei model. Kona launched 58 bikes of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The RockShox Recon Gold RL is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Monarch RL rear shock model, which has a travel of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Kona HEI HEI HEI 2014, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
