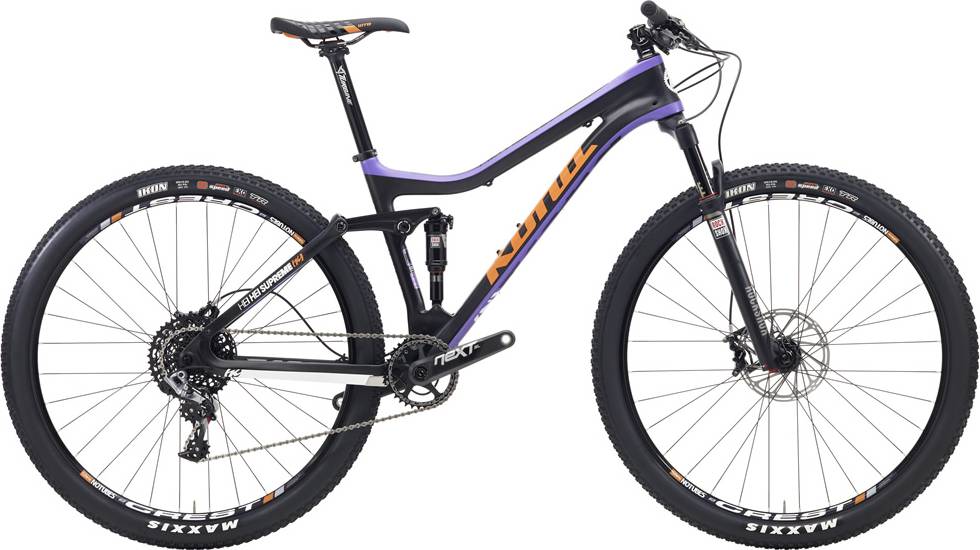

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset XX1, X01 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Carbon 100mm Travel
Suspension Fork
RockShox SID XXS 100mm QR15 Tapered XLOC
Rear Shock
RockShox Monarch RT3
Drivetrain
Rear Derailleur
SRAM XX1
Front Derailleur
n/a
Shift Levers
SRAM XO1
Cassette
SRAM XG1195 10-42t 11spd
Crank
34t
Bottom Bracket
RaceFace Next
Chain
KMC X11
Pedals
n/a
Wheels
Front Hub
Stan's ZTR Crest Wheelset QR15
Rear Hub
Stan's ZTR Crest Wheelset 142x12mm
Rims
Stan's ZTR Crest Wheelset
Spokes
Stan's ZTR Crest Wheelset
Tires
Maxxis Ikon EXO TR 29x2.2"
Brakes
Brakes
SRAM Guide RSC
Brake Levers
SRAM Guide RSC
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
RaceFace Turbine 35
Handlebar
RaceFace Next 35
Grips
Kona Race Light LOG
Headset
FSA No.57E/SLFSA No.57E/SL
Seat
Saddle
WTB Volt Race
Seatpost
RaceFace Turbine
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17" | 18" | 19" | 21" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.36 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 667 mm | 692 mm | 705 mm | 717 mm | 744 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 89 mm | 105 mm | 89 mm | 89 mm | 89 mm |
| Stack | 581 mm | 590 mm | 595 mm | 599 mm | 609 mm |
| Reach | 405 mm | 427 mm | 438 mm | 449 mm | 472 mm |
| Top Tube Length | 566 mm | 591 mm | 604 mm | 616 mm | 642 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.6 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 394 mm | 432 mm | 457 mm | 483 mm | 533 mm |
| Head Tube Angle | 69.8 ° | 69.8 ° | 69.8 ° | 69.8 ° | 69.8 ° |
| Head Tube Length | 105 mm | 115 mm | 120 mm | 125 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1104 mm | 1113 mm | 1142 mm | 1154 mm | 1181 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 26 mm | 26 mm |
| Standover Height | 724 mm | 724 mm | 744 mm | 765 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
HEI HEI SUPREME is part of the Kona Hei model. Kona released 58 bikes variations of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
HEI HEI SUPREME components
Fork
The RockShox SID is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the RockShox Monarch RT3 model, with a travel of 100mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the HEI HEI SUPREME bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The HEI HEI SUPREME has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
