Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
RockShox Recon Silver RL Solo Air 120mm Tapered
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
n/a
Shift Levers
SRAM NX
Cassette
Shimano PG1130 11-42t 11spd
Crank
32t Narrow/Wide
Bottom Bracket
Shimano PF92
Chain
SRAM PC1110
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano Deore 100x15mm
Rear Hub
Shimano Deore 148x12mm
Rims
WTB SX25
Spokes
Stainless Black 14g
Tires
Maxxis Ardent WB 29x2.4"
Brakes
Brakes
Shimano Hydraulic
Brake Levers
Shimano Hydraulic
Disk Rotors
Shimano 180mm (centerlock)
Cockpit
Stem
Kona XC/BC
Handlebar
Kona XC/BC Riser
Grips
Kona Race Light LOG
Headset
FSA No.57B
Seat
Saddle
Kona Trail
Seatpost
KS Eten Integra 31.6mm w/Shim for 34.9 ST
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.35 mm | 1.27 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 709 mm | 737 mm | 766 mm | 805 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 628 mm | 637 mm | 646 mm | 655 mm |
| Reach | 429 mm | 454 mm | 479 mm | 514 mm |
| Top Tube Length | 596 mm | 624 mm | 651 mm | 689 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1120 mm | 1148 mm | 1177 mm | 1216 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 734 mm | 734 mm | 744 mm | 764 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
Model Overview

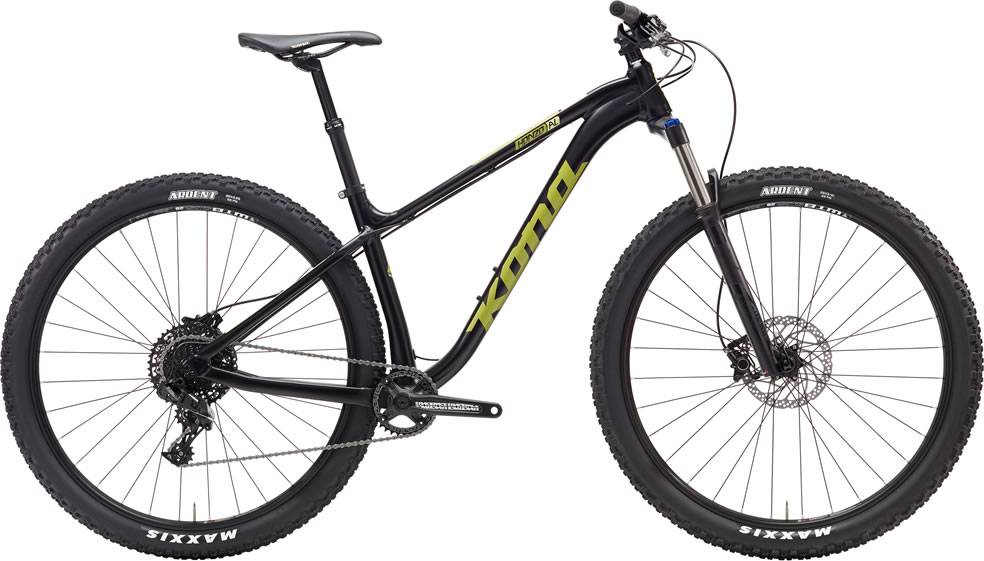

Honzo AL is part of the Kona Honzo model. Kona launched 53 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Kona Honzo AL 2017 is the most affordable bike of this model and has a price of 1599$. On the other hand, Kona Honzo CR Trail DL 2017, is the most expensive and costs 4599$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2017 and its price was 1599$. In conclusion, this bike price is 72.73% smaller than the price of the average Trail bike.
Overview of components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Honzo AL are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Honzo AL comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Kona Honzo AL includes a dropper post. Therefore, climbing or descending will be a breeze.
