Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Fox Float 34 Performance 120mm QR15 Tapered
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-36t 10spd
Crank
32t Narrow/Wide
Bottom Bracket
Shimano PF92
Chain
KMC X10
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano Deore
Rear Hub
Novatech 148x12
Rims
WTB STp i29 TCS Tubeless
Spokes
Sandvik Stainless 14g Black
Tires
Maxxis Minion DHF EXO TR 29x2.3"
Brakes
Brakes
Shimano Deore
Brake Levers
Shimano Deore
Disk Rotors
Shimano Deore 180mm (centerlock)
Cockpit
Stem
Kona XC/BC
Handlebar
Kona XC/BC Riser
Grips
ODI Ruffian MX
Headset
FSA Orbit 1.5 ZS NO.57
Seat
Saddle
WTB Volt Sport
Seatpost
Kona XC/BC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.517 mm | 1.46 mm | 1.391 mm | 1.33 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 697 mm | 718 mm | 745 mm | 772 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Stack | 631 mm | 635 mm | 640 mm | 645 mm |
| Reach | 416 mm | 435 mm | 460 mm | 485 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Wheelbase | 1104 mm | 1125 mm | 1152 mm | 1179 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 670 mm | 670 mm | 690 mm | 710 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
Model Overview

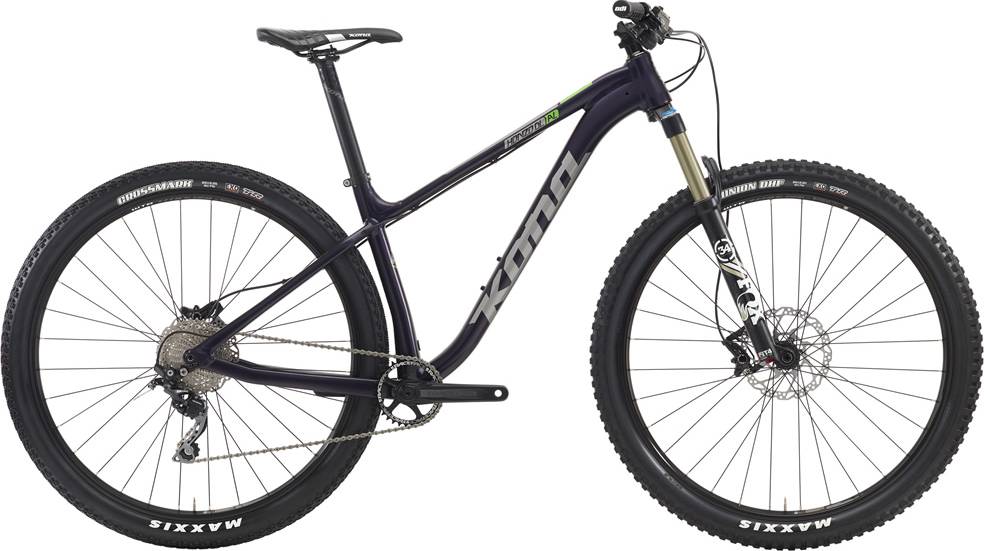

Honzo AL/DL is a Kona Honzo model. There are 53 bikes that carry this model name. Check out the entire range from 2016 of this model, by clicking this link.
Model range prices
Kona Honzo AL 2016 is the most affordable bike of this model and has a price of 1599$. On the other hand, Kona Honzo AL/DL 2016, is the most expensive and costs 2199$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2199$. Comparing the average cost of a Trail bike to this one, you will see that Honzo AL/DL price is 25.6% lower.
Honzo AL/DL components
Fork
The Honzo AL/DL comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Honzo AL/DL 2016 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
