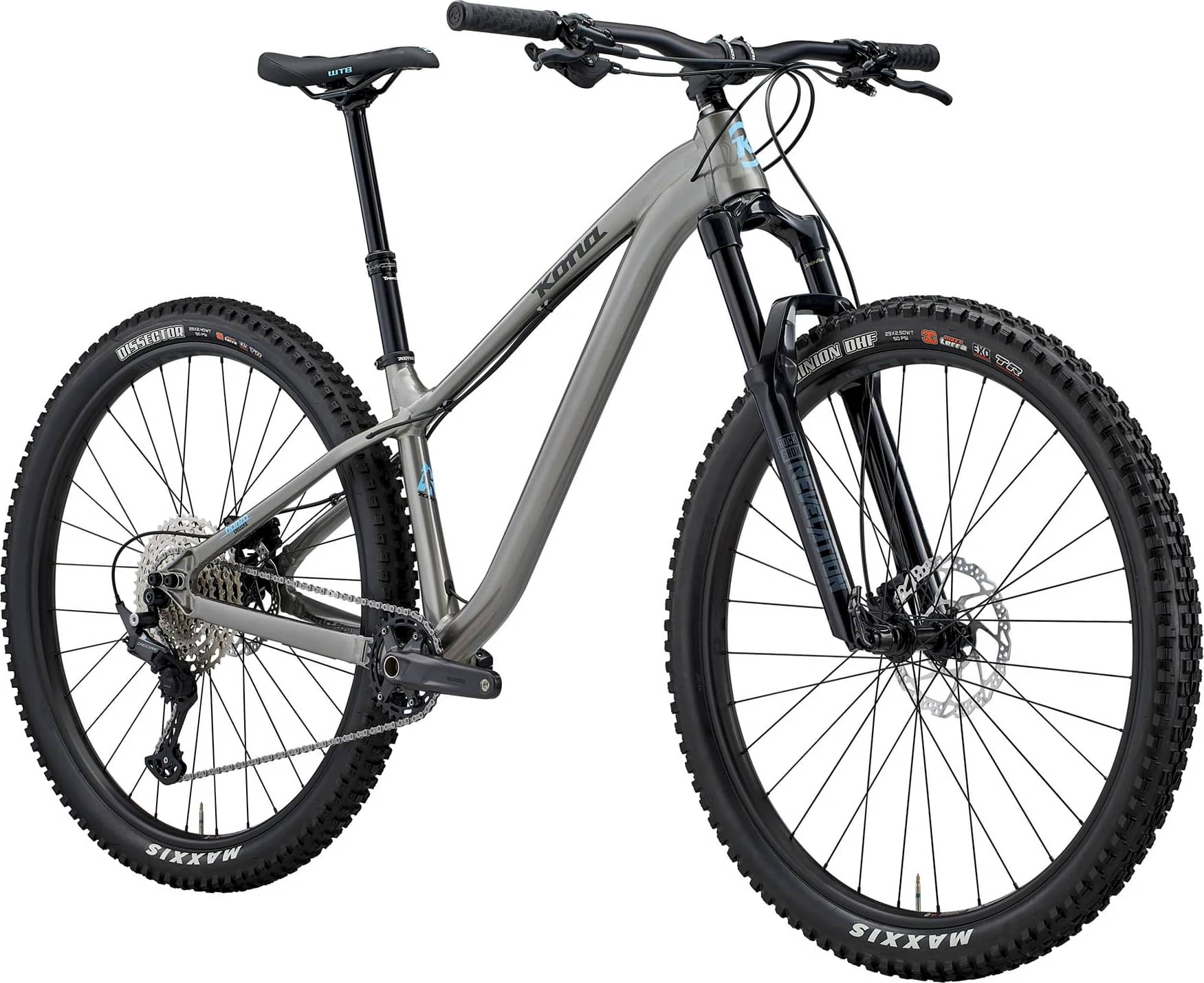

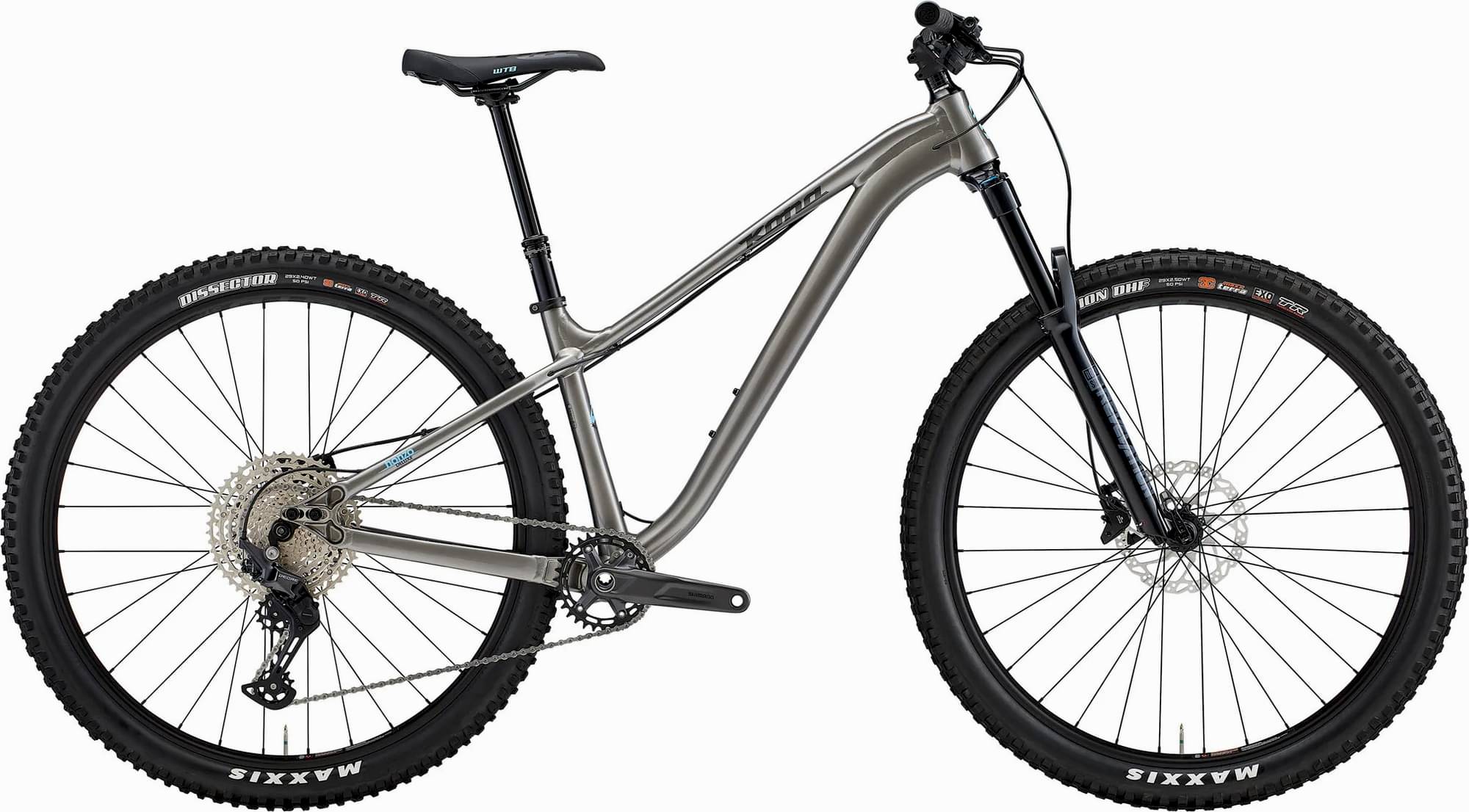

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork RockShox Revelation RC
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

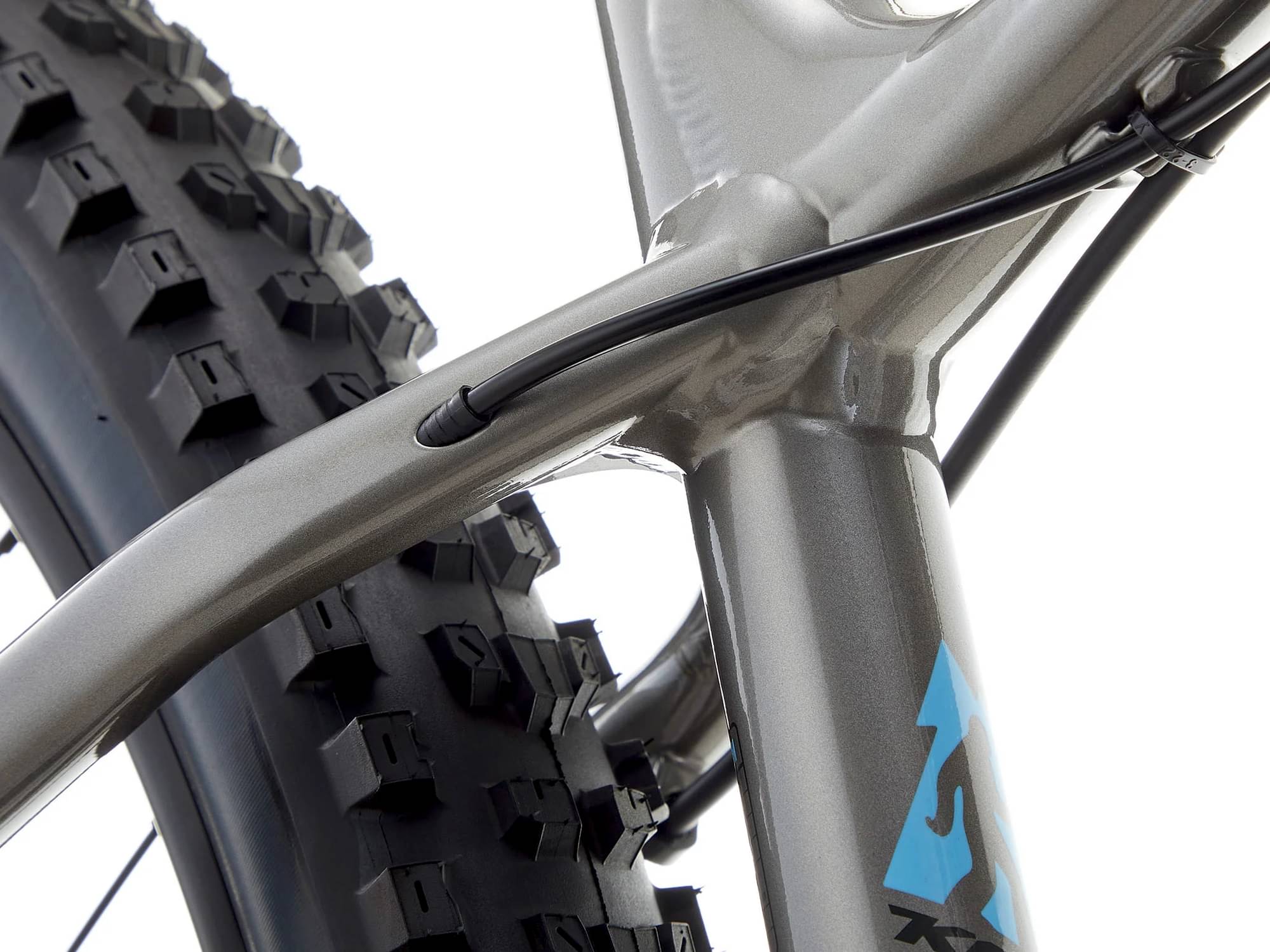

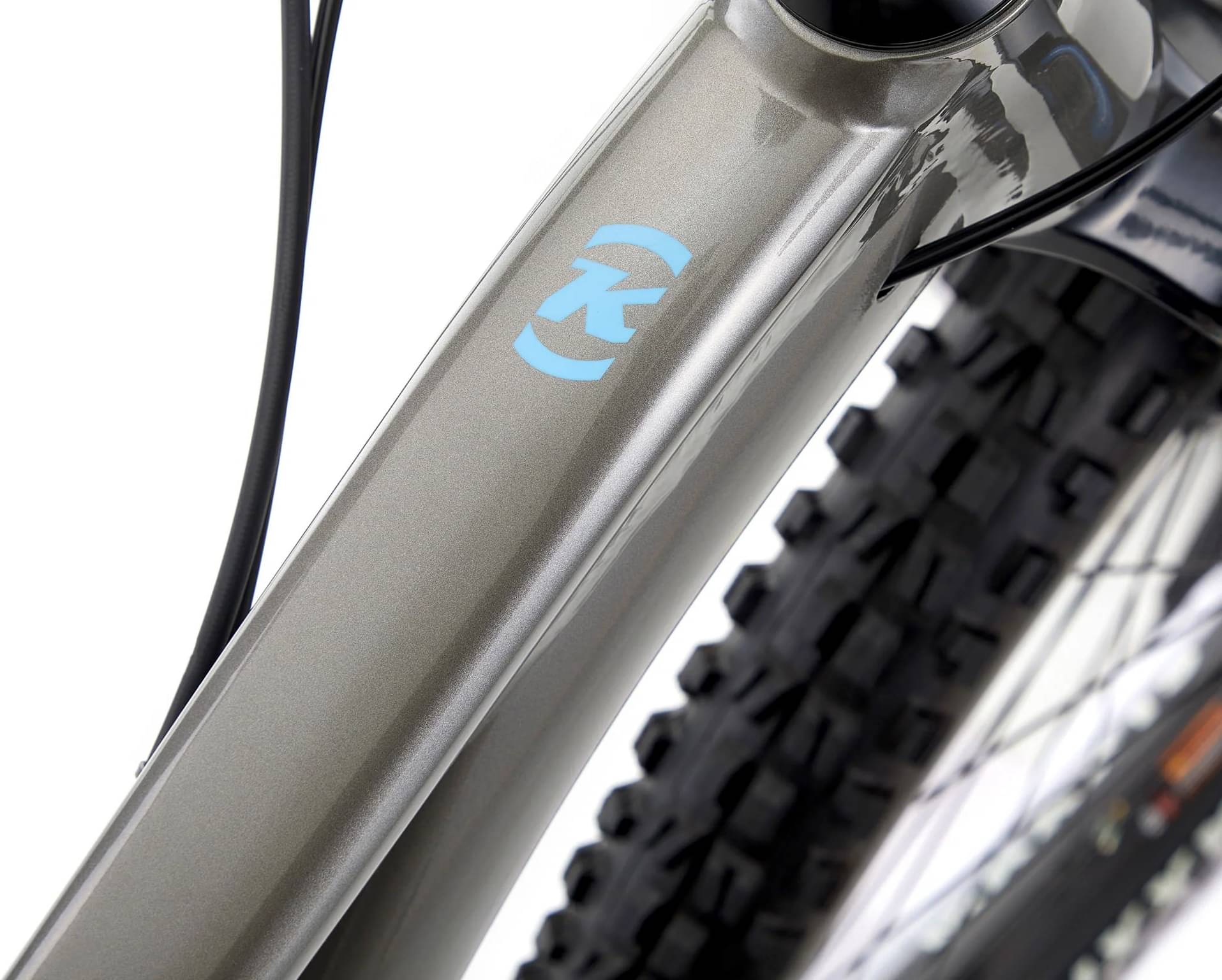

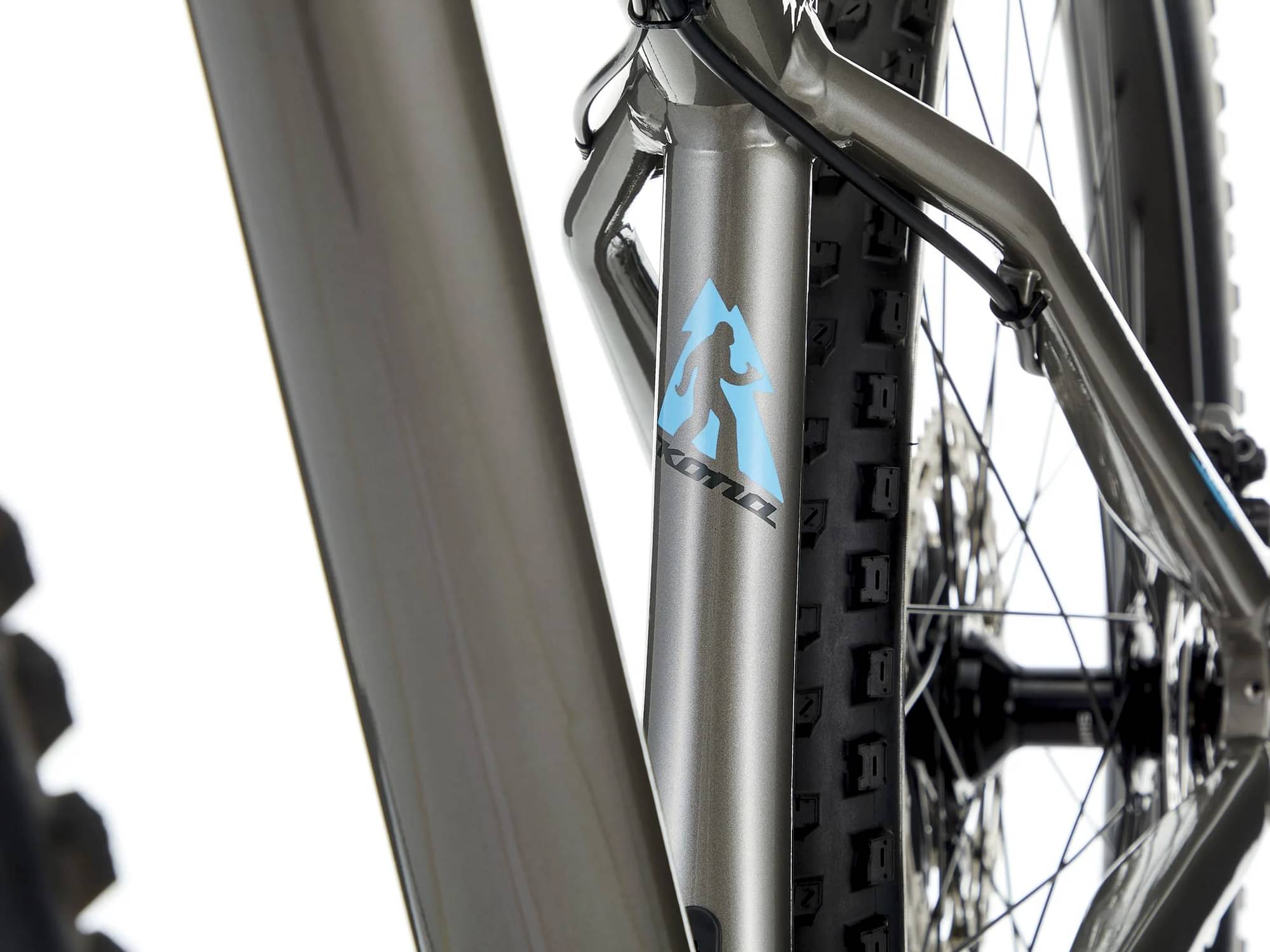

Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
RockShox Revelation RC DebonAir 140mm Tapered 110mm Spacing
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore 12 spd
Front Derailleur
n/a
Shift Levers
Shimano Deore 12 spd
Cassette
Shimano Deore 11-50t 12spd

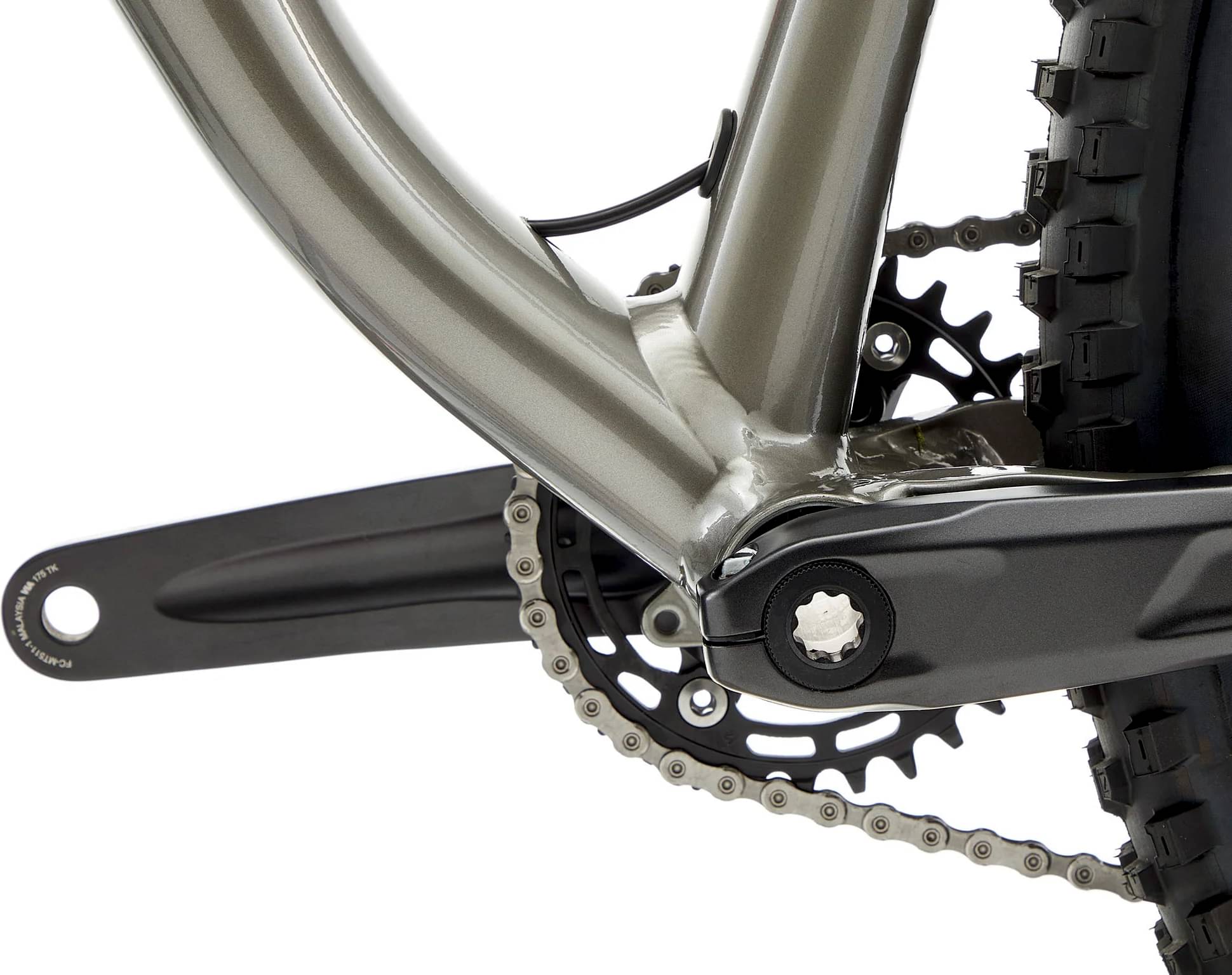

Crank
Shimano Deore 12 spd, 32t
Bottom Bracket
Shimano PF92
Chain
Shimano Deore 12 spd
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano 110x15mm (centerlock)
Rear Hub
Shimano 148x12mm (centerlock)
Rims
WTB ST i30 TCS
Spokes
Stainless Black 14g
Tires
Front: Maxxis Minion DHF EXO TR 3C 29x2.5" WT, Rear: Maxxis Minion DHF EXO TR 3C 29x2.5" WT

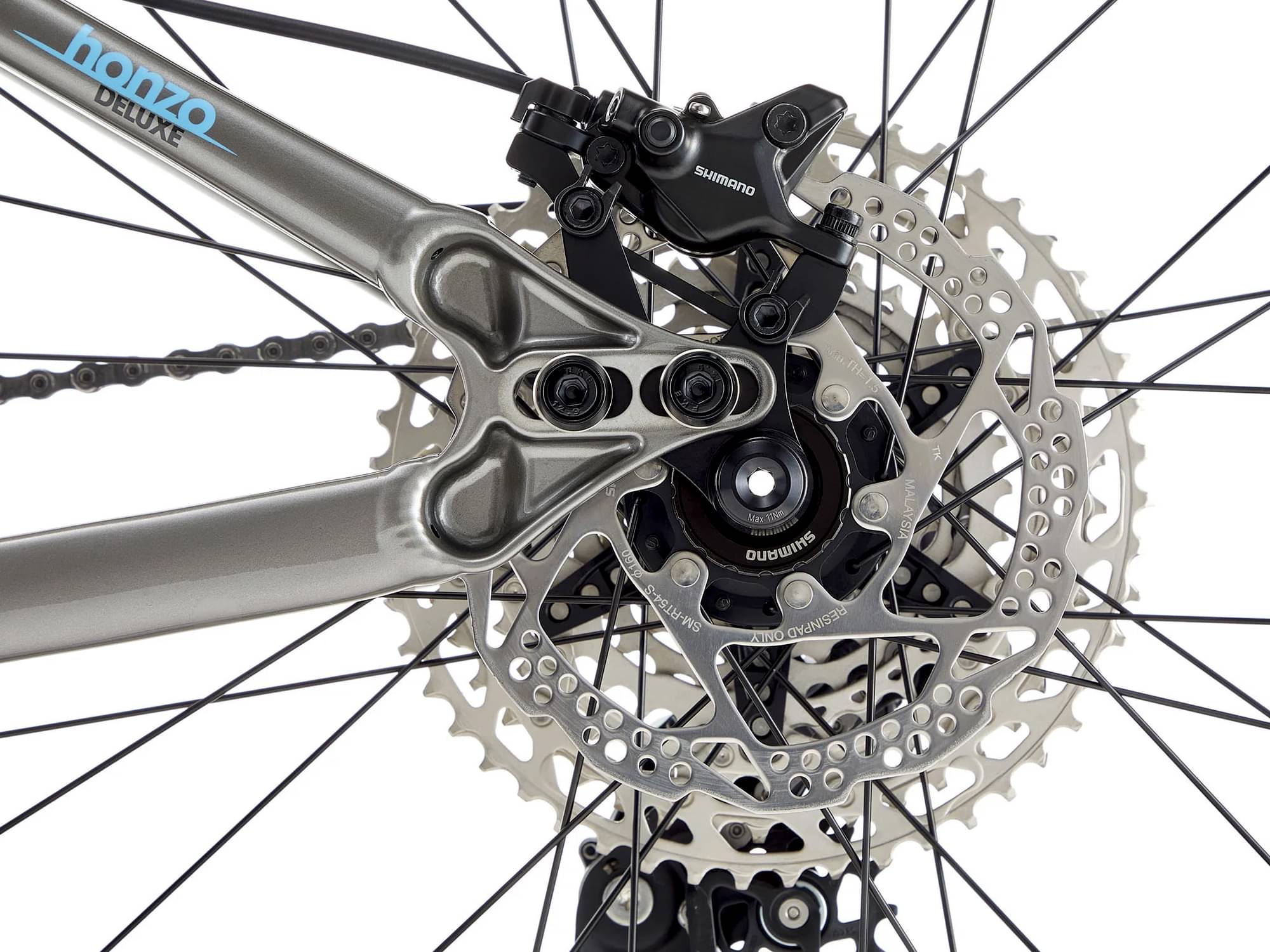

Brakes
Brakes
Shimano MT410 Hydraulic
Brake Levers
Shimano MT410 Hydraulic
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57B
Seat
Saddle
WTB Volt
Seatpost
TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.36 mm | 1.29 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 738 mm | 767 mm | 796 mm | 830 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 114 mm | 124 mm | 114 mm | 114 mm |
| Stack | 627 mm | 636 mm | 645 mm | 654 mm |
| Reach | 426 mm | 451 mm | 476 mm | 506 mm |
| Top Tube Length | 578 mm | 605 mm | 632 mm | 664 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 379 mm | 379 mm | 419 mm | 449 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 1152 mm | 1181 mm | 1210 mm | 1244 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 713 mm | 691 mm | 686 mm | 712 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
Honzo DL is a Kona Honzo model. Kona released 53 bikes variations of this model so far. Take a sneak peek at all Kona Honzo bikes models from 2023, by clicking here.
Model range prices
Kona Honzo 20 2023 is the most economical model, with a starting price of 649$. Kona Honzo ESD 2023 on the other hand costs 3099$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 2699$. If we compare this with the average Trail bike cost we notice that the price is 2.33% smaller.
Honzo DL components

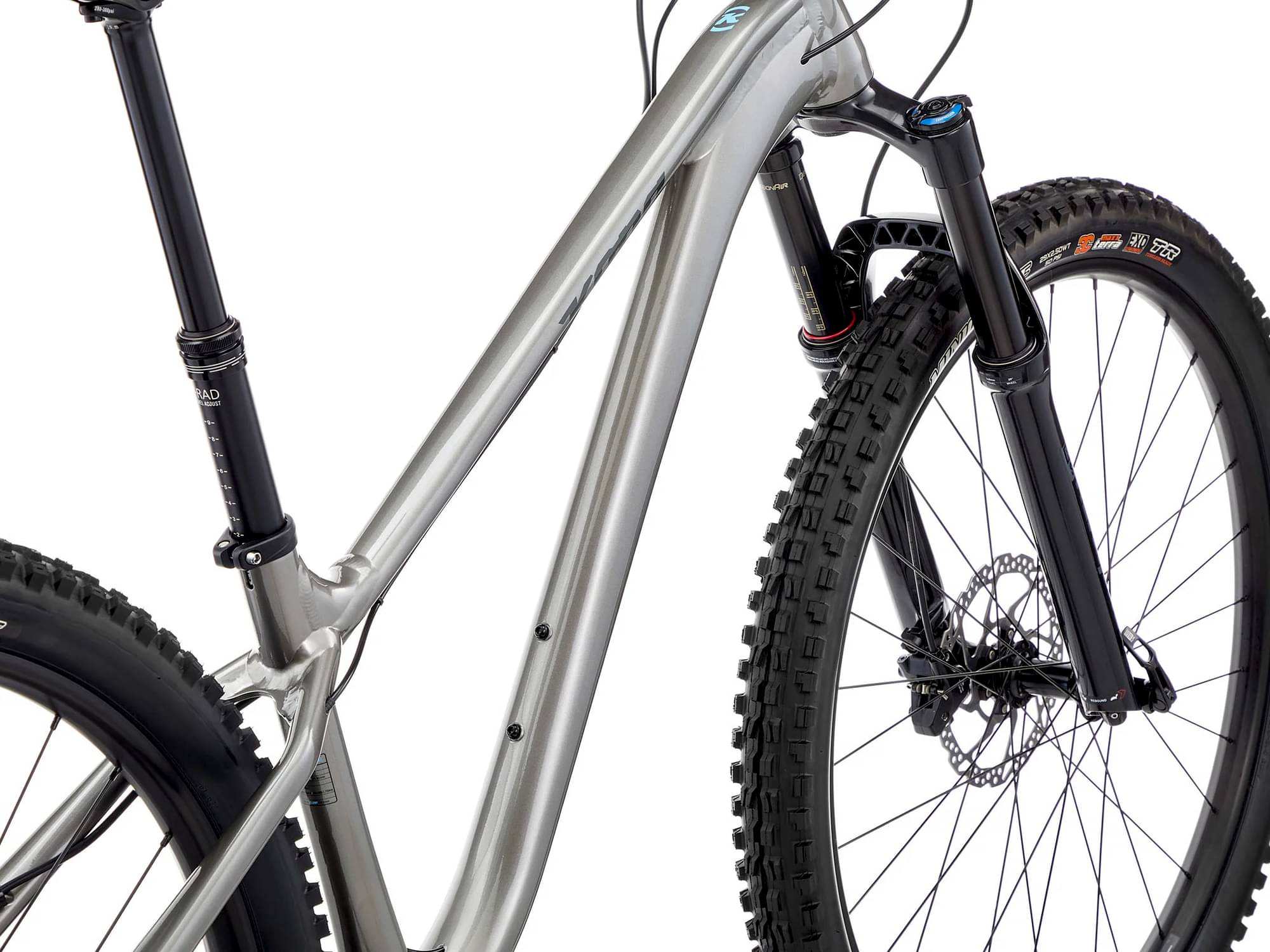

Fork
This bike has the RockShox Revelation RC fork installed. The fork’s travel is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Honzo DL are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Honzo DL comes in 4 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Kona model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
