Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Steel -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.35 mm | 1.28 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 703 mm | 732 mm | 761 mm | 799 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 102 mm | 102 mm | 102 mm | 102 mm |
| Stack | 622 mm | 631 mm | 640 mm | 649 mm |
| Reach | 423 mm | 448 mm | 473 mm | 508 mm |
| Top Tube Length | 596 mm | 624 mm | 653 mm | 691 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 478 mm | 508 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 1108 mm | 1137 mm | 1166 mm | 1204 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 711 mm | 709 mm | 708 mm | 706 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model

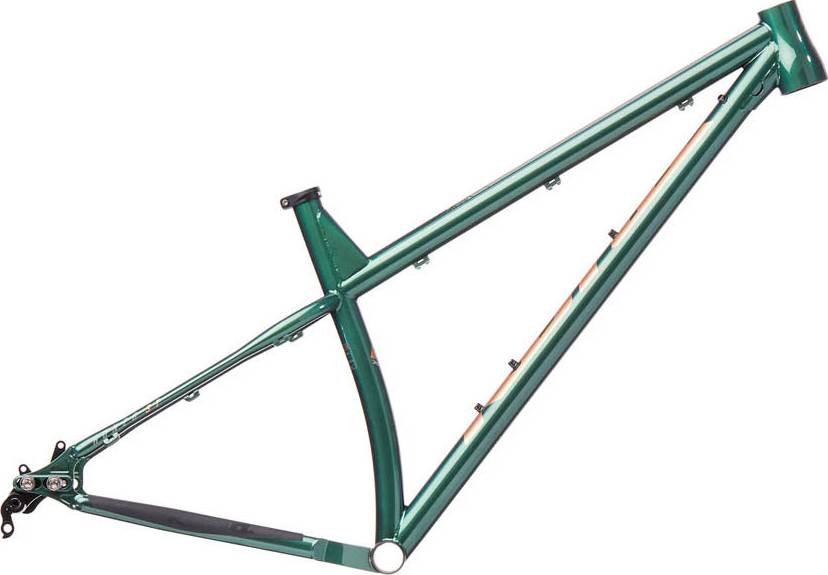

Honzo ST is a Kona Honzo model. Kona launched 53 frames of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry frames
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2019 and its price was 575$. Doing a quick comparison, we notice that Honzo ST price is 193.74% smaller than the average cost of a Crosscountry frame.
Overview of components
Sizes
Kona Honzo ST frame has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
