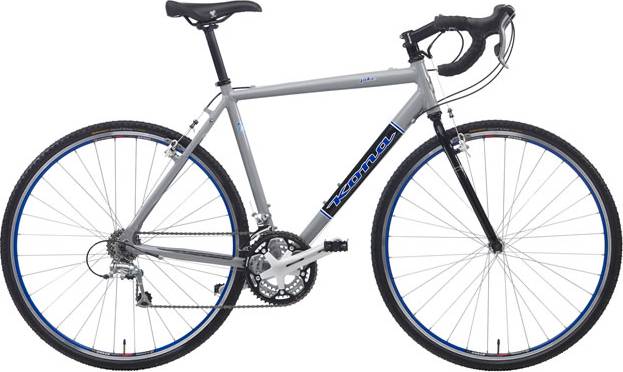

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Rim
Sizing
Recommended size guide.
52cm
157cm - 182cm
54cm
167cm - 188cm
56cm
175cm - 195cm
58cm
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light 7005 Aluminum Butted
Suspension Fork
Kona P2 700C
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra
Cassette
Shimano HG50 (12-25, 9spd)
Crank
50/39/30
Bottom Bracket
FSA MegaExo
Chain
KMC HG53
Pedals
Wellgo LU-A9
Wheels
Front Hub
Formula
Rear Hub
Shimano Tiagra
Rims
Alex AT-450
Spokes
Sandvik Stainless 15g
Tires
Continental SpeedKing Cross 700x35C
Brakes
Brakes
Kore Sport
Brake Levers
Shimano Tiagra
Cockpit
Stem
Kona Road (6°±, 47-52=90, 54-56=100, 58-62=115mm)
Handlebar
Kona Road (31.8mm, 47-49=400, 52-54=420, 56-62=440mm Wide)
Grips
Kona Cork Tape
Headset
TH
Seat
Saddle
WTB Rocket V Comp
Seatpost
Kona Road
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 586 mm | 586 mm | 589 mm | 595 mm | 600 mm | 611 mm | 620 mm | 640 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 522 mm | 532 mm | 543 mm | 553 mm | 563 mm | 578 mm | 592 mm | 612 mm |
| Seat Tube Angle | 74.8 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm | 620 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1016 mm | 1015 mm | 1018 mm | 1024 mm | 1029 mm | 1040 mm | 1049 mm | 1069 mm |
| Bottom Bracket Drop | 59 mm | 59 mm | 59 mm | 59 mm | 59 mm | 59 mm | 59 mm | 59 mm |
| Standover Height | 743 mm | 760 mm | 784 mm | 800 mm | 816 mm | 834 mm | 849 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
JAKE belongs to the Kona Jake model. 47 bikes variations carry this model name so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Cyclocross bikes
If you want an acceptable Cyclocross bike you should know that the average price is 2012$. However, you could also get a good Cyclocross bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Kona JAKE 2010, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona JAKE has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
