Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Kona Project Two Aluminum
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano
Shift Levers
Shimano Sora
Cassette
Shimano Tiagra 12-27t 9 spd
Crank
34/48t
Bottom Bracket
FSA 7420ST
Chain
Shimano HG53
Pedals
N/A
Wheels
Front Hub
Formula
Rear Hub
Shimano 2200
Rims
Shining A-M5
Spokes
Stainless 15g
Tires
Maxxis Locust 24x1.25"
Brakes
Brakes
Tektro Mini-V
Brake Levers
Shimano Sora
Disk Rotors
N/A
Cockpit
Stem
Kona XC/BC
Handlebar
Kona Road Bar
Grips
Kona Cork Tape
Headset
TH ZST No.10
Seat
Saddle
Kona Race Jr
Seatpost
Kona Thumb
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 350 |
|---|---|
| Stack Reach Ratio | 1.36 mm |
| Bottom Bracket Height | 264 mm |
| Front Center | 531 mm |
| Rake | 45 mm |
| Stack | 456 mm |
| Reach | 336 mm |
| Top Tube Length | 458 mm |
| Seat Tube Angle | 75 ° |
| Seat Tube Length | 350 mm |
| Head Tube Angle | 70.5 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 381 mm |
| Wheelbase | 908 mm |
| Bottom Bracket Drop | 30 mm |
| Standover Height | 640 mm |
| Wheels | 24" |
Model Overview

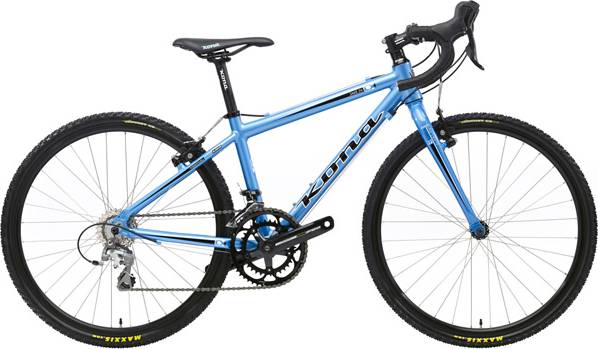

JAKE 24 belongs to the Kona Jake model. 47 bikes variations carry this model name so far. Take a sneak peek at all Kona Jake bikes models from 2013, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Youth bikes average price
If you want an acceptable Youth bike you should know that the average price is 278$. However, this doesn’t mean that if you spend less money on a Youth bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The JAKE 24 2013 bike is equipped with 24″ aluminum wheels when leaving the factory. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
