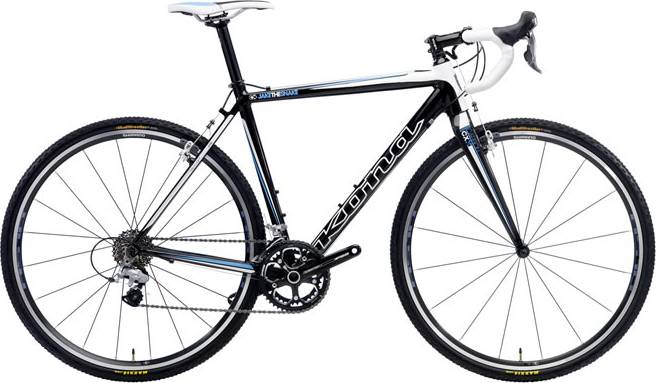

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
56cm
175cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light 7005 Aluminum Butted
Suspension Fork
Kona CX Carbon Race/Tapered Steerer
Drivetrain
Rear Derailleur
Shimano Ultegra SS
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano 105 11-28 10 spd
Crank
36/46
Bottom Bracket
FSA BB30
Chain
Shimano 105
Pedals
N/A
Wheels
Front Hub
Shimano RS10A Wheelset
Rear Hub
Shimano RS10A Wheelset
Rims
Shimano RS10A Wheelset
Spokes
Shimano RS10A Wheelset
Tires
Maxxis Mud Wrestler 700x35C Kevlar
Brakes
Brakes
Kore Race
Brake Levers
Shimano 105
Cockpit
Stem
Kona Road Stem
Handlebar
Kona Road Bar
Grips
Kona Cork Tape
Headset
FSA No. 57-B
Seat
Saddle
WTB Valcon Race
Seatpost
Kona Double Clamp w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 53cm | 56cm | 59cm | 61cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 288 mm | 288 mm | 288 mm |
| Front Center | 594 mm | 599 mm | 606 mm | 612 mm | 627 mm | 636 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 587 mm | 607 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 530 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 110 mm | 110 mm | 135 mm | 155 mm | 175 mm | 185 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1012 mm | 1018 mm | 1024 mm | 1031 mm | 1046 mm | 1055 mm |
| Bottom Bracket Drop | 59 mm | 59 mm | 59 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 752 mm | 767 mm | 799 mm | 824 mm | 849 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
JAKE THE SNAKE is part of the Kona Jake model. 47 bikes variations carry this model name so far. You can get a glimpse at all models from 2011, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Cyclocross bikes average price
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, you could also get a good Cyclocross bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the JAKE THE SNAKE bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
