Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light 7005 Aluminum Butted
Suspension Fork
Kona Full Carbon CX Race Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano 105 11-32t 11spd
Crank
36/46t
Bottom Bracket
FSA Gossamer Threaded Road
Chain
KMC X11
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Novatech Sealed Bearing
Rear Hub
Novatech Sealed Bearing
Rims
WTB STP i19
Spokes
Sandvik 14g Black
Tires
Clement MXP 700x33c
Brakes
Brakes
Hayes CX Expert
Brake Levers
Shimano 105
Disk Rotors
Hayes L Series 160mm
Cockpit
Stem
Kona Road Deluxe
Handlebar
Kona Road
Grips
Kona Cork Tape
Headset
FSA No.57B
Seat
Saddle
WTB Volt Comp
Seatpost
Kona Thumb w/Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 588 mm | 599 mm | 610 mm | 611 mm | 621 mm | 635 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 75 mm | 74 mm | 67 mm | 67 mm | 67 mm |
| Stack | 532 mm | 541 mm | 555 mm | 576 mm | 595 mm | 614 mm |
| Reach | 366 mm | 374 mm | 379 mm | 383 mm | 387 mm | 395 mm |
| Top Tube Length | 510 mm | 525 mm | 540 mm | 555 mm | 570 mm | 590 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 495 mm | 510 mm | 540 mm | 570 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 115 mm | 125 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1004 mm | 1014 mm | 1025 mm | 1027 mm | 1037 mm | 1052 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 735 mm | 750 mm | 765 mm | 795 mm | 820 mm | 840 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

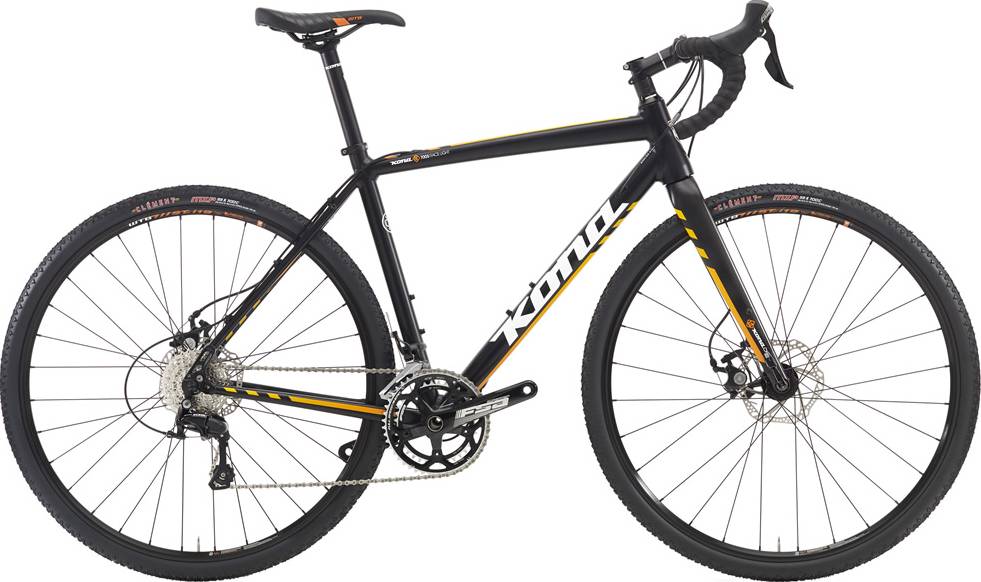

Jake the Snake is a Kona Jake model. Kona released 47 bikes variations of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Model range prices
Kona Jake 24 2016 is the most economical model, with a starting price of 899$. Kona Major Jake 2016 on the other hand costs 3299$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Cyclocross bikes average price
According to our calculations, the average cost of a Cyclocross bike that is reliable is 2012$. However, even though the average price of a Cyclocross bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2016 for 1599$. Comparing this to the average Cyclocross bike price, we see that the price is 25.83% smaller.
Overview of components
Fork material
Jake the Snake has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Jake the Snake 2016 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Jake the Snake has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
