Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
48cm
147cm - 160cm
54cm
167cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light 7005 Aluminum Butted
Suspension Fork
Kona Full Carbon CX Race Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano 105 11-32t 11spd
Crank
36/46t
Bottom Bracket
FSA Gossamer Cross CC
Chain
KMC X11
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Novatec 100x12mm
Rear Hub
Novatec 135x10mm
Rims
WTB STP i19
Spokes
Stainless Black 14g
Tires
Clement MXP 700x33c
Brakes
Brakes
TRP Spyre C
Brake Levers
Shimano 105
Disk Rotors
TRP 160mm
Cockpit
Stem
Kona Road Deluxe
Handlebar
Kona Road
Grips
Kona Cork Tape
Headset
FSA No.57B
Seat
Saddle
WTB Volt Sport
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 49.5cm | 51cm | 54cm | 57cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 588 mm | 599 mm | 610 mm | 611 mm | 621 mm | 635 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 75 mm | 74 mm | 67 mm | 67 mm | 67 mm |
| Stack | 532 mm | 541 mm | 555 mm | 576 mm | 595 mm | 614 mm |
| Reach | 366 mm | 374 mm | 379 mm | 383 mm | 387 mm | 395 mm |
| Top Tube Length | 510 mm | 525 mm | 540 mm | 555 mm | 570 mm | 590 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 495 mm | 510 mm | 540 mm | 570 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 115 mm | 125 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1004 mm | 1014 mm | 1025 mm | 1027 mm | 1037 mm | 1052 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 745 mm | 760 mm | 775 mm | 800 mm | 825 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | cm | cm | 167 cm | cm | cm |
| Rider Max Height | 160 cm | cm | cm | 188 cm | cm | cm |

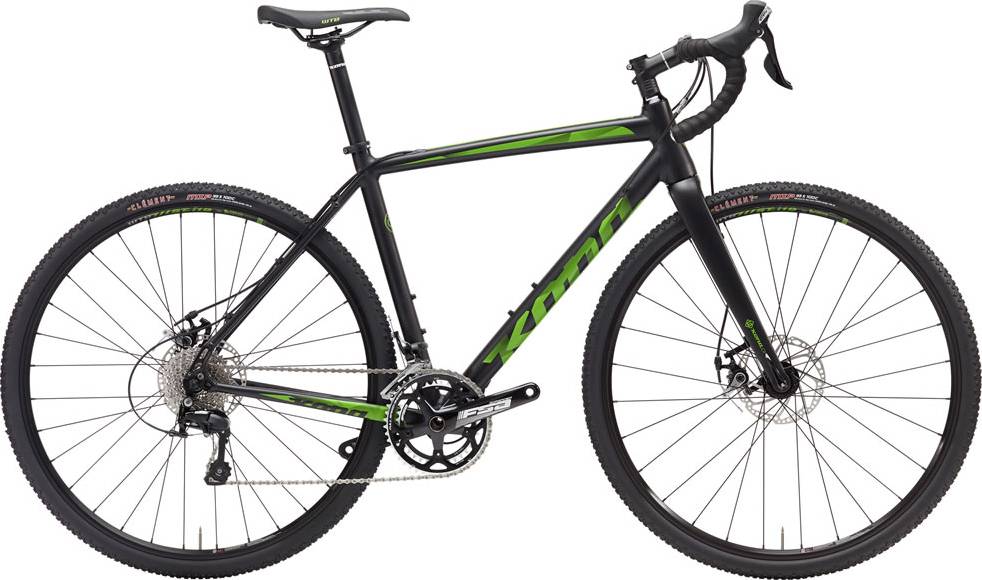

About this model
Jake the Snake is part of the Kona Jake model. Kona launched 47 bikes of this model so far. You can easily view all of the Kona Jake bikes models from 2017, here.
Model range prices
The most economical model, the Kona Jake 2017 has a starting price of 1099$. Kona Jake the Snake CR 2017 on the other hand is the most expensive at 2399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Cyclocross bikes
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Kona released this model in 2017, its price was 1499$. Comparing the average cost of a Cyclocross bike to this one, you will see that Jake the Snake price is 34.22% lower.
Overview of components
Fork material
Jake the Snake has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Jake the Snake 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona Jake the Snake has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
