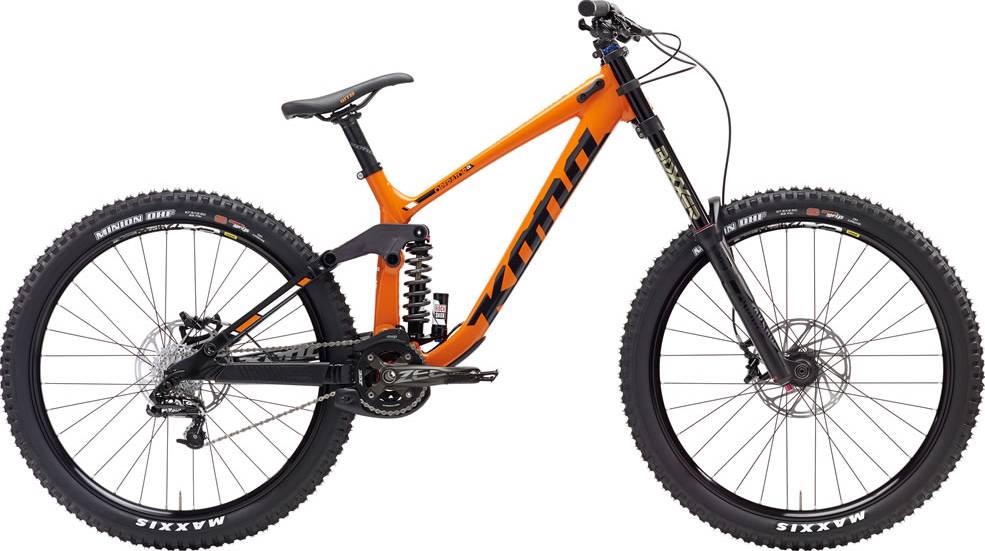

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer
-
Groupset GX -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona DH 6061 Aluminum Butted 200mm Travel
Suspension Fork
RockShox Boxxer RC Coil Spring 200mm
Rear Shock
RockShox Kage RC
Drivetrain
Rear Derailleur
SRAM GX
Front Derailleur
n/a
Shift Levers
SRAM GX
Cassette
SRAM PG1030 11-28t 10spd
Crank
36t
Bottom Bracket
Shimano PF107
Chain
KMC X10
Chain Guide
MRP G3 Steel
Pedals
n/a
Wheels
Front Hub
Formula 110x20mm
Rear Hub
Formula 157x12mm
Rims
Mavic EX729
Spokes
Stainless Black 14g
Tires
Maxxis Minion DHF DH 3C 27.5x2.5"
Brakes
Brakes
SRAM Guide R
Brake Levers
SRAM Guide R
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
Kona Direct Mount
Handlebar
Kona DH
Grips
Kona S-LOG
Headset
FSA Orbit 1.5ZS SC
Seat
Saddle
WTB Volt Sport SE 250
Seatpost
Kona OB 34.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 797 mm | 825 mm | 855 mm |
| Rake | 48 mm | 48 mm | 48 mm |
| Trail | 127 mm | 127 mm | 127 mm |
| Stack | 608 mm | 613 mm | 622 mm |
| Reach | 428 mm | 453 mm | 478 mm |
| Top Tube Length | 577 mm | 604 mm | 634 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76 ° |
| Seat Tube Length | 410 mm | 410 mm | 410 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm |
| Wheelbase | 1213 mm | 1241 mm | 1270 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm |
| Standover Height | 713 mm | 713 mm | 713 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 182 cm | 195 cm | 195 cm |
Model Overview
Operator DL belongs to the Kona Operator model. 17 bikes variations carry this model name so far. You can easily view all of the Kona Operator bikes models from 2017, here.
Model range prices
Kona Operator 2017 is the most economical model, with a starting price of 3199$. Kona Operator DL 2017 on the other hand costs 3999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Downhill bikes
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2017 and its price was 3999$. Comparing this to the average Downhill bike price, we see that the price is 17.93% higher.
Overview of components
Fork
The fork installed on this bike is the RockShox BoXXer model. The travel on this model is 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Operator DL has a rear shock with a travel of 200mm. The model RockShox Kage RC is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Operator DL 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Operator DL comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Operator DL comes in 3 sizes, that range from 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
