Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 134mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 154cm
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

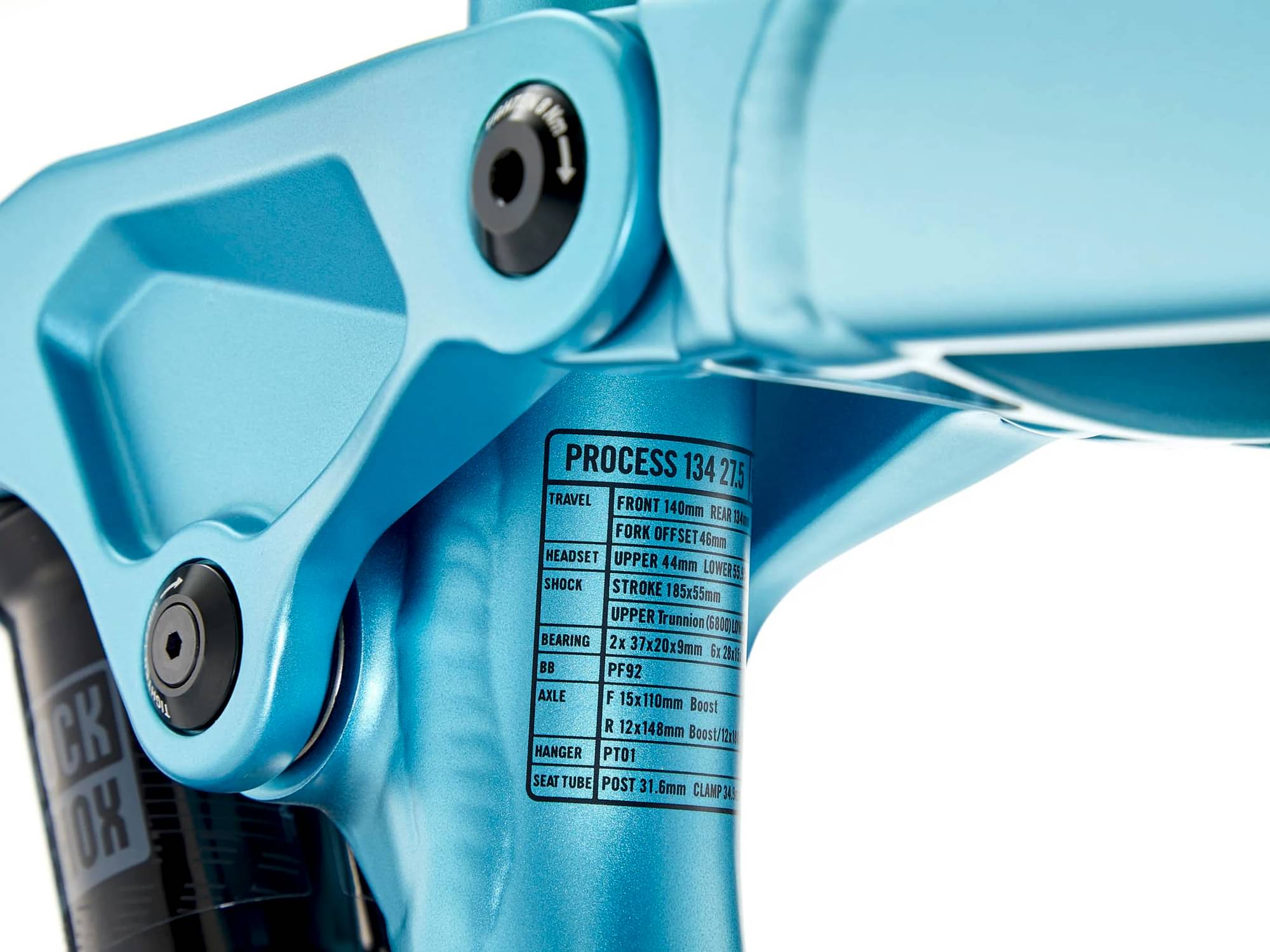

Frame
Frame
Kona 6061 Aluminum Butted 134mm Travel
Suspension Fork
RockShox Recon RL Motion Control Solo Air 140mm Tapered 110mm Spacing

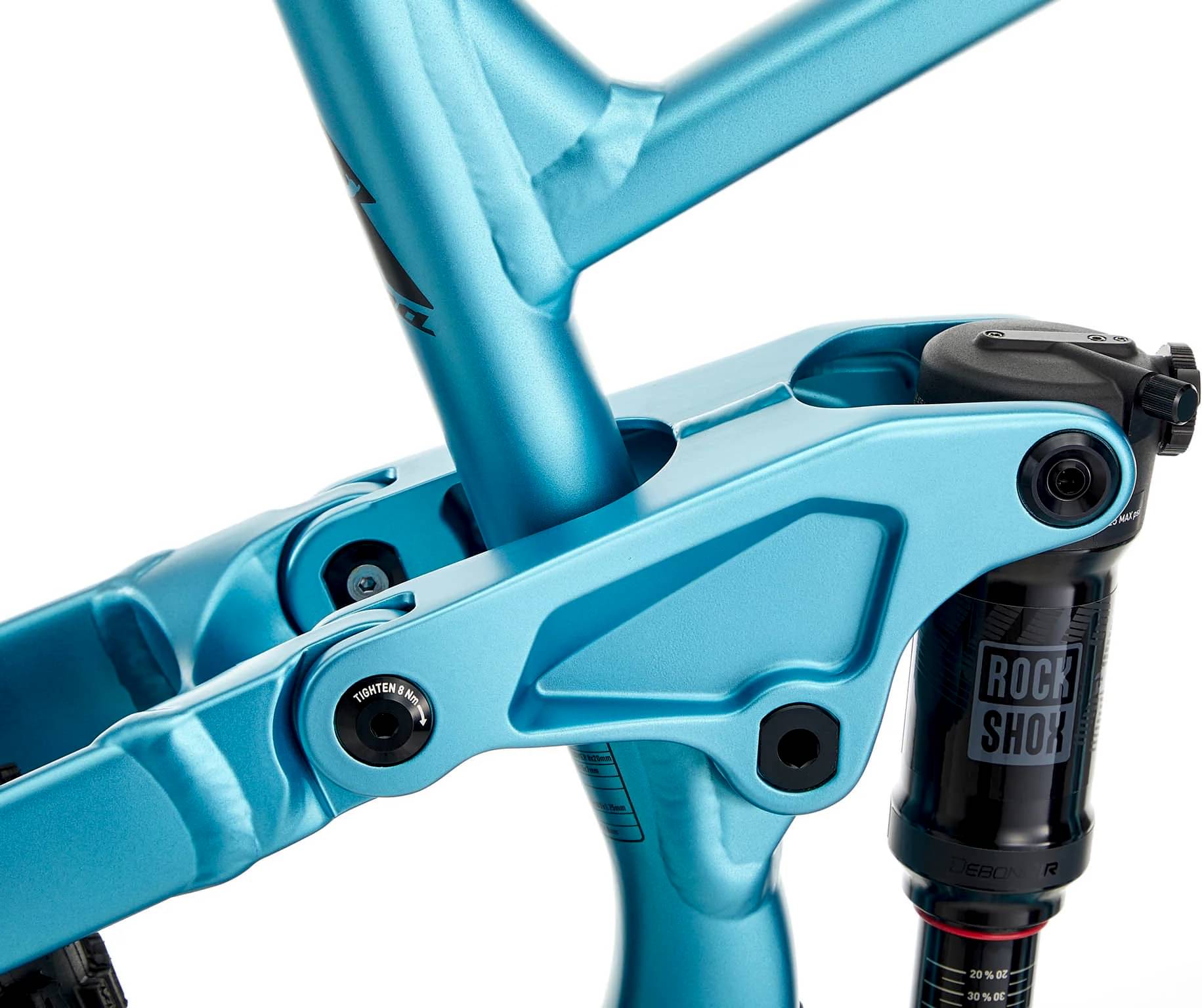

Rear Shock
RockShox Deluxe Select Trunnion

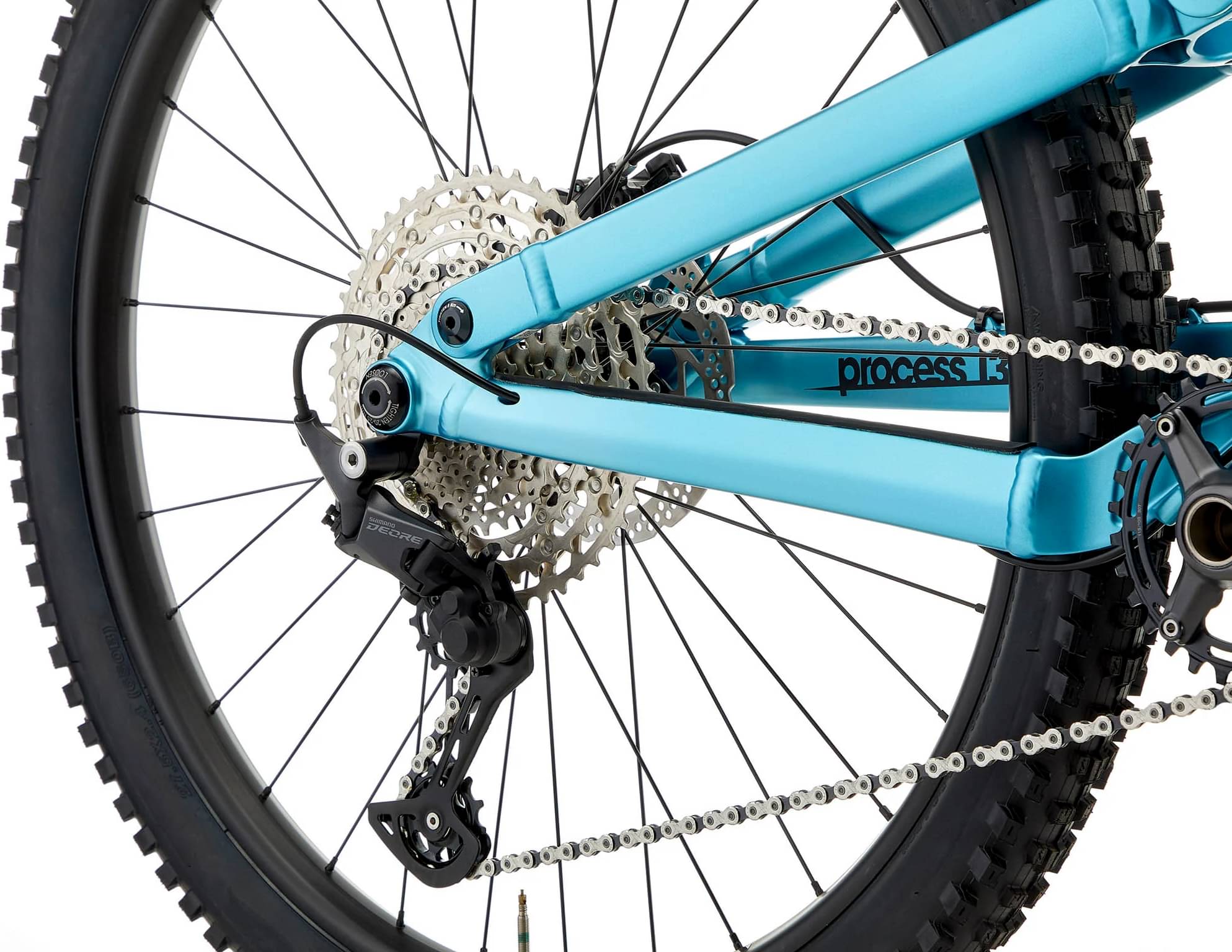

Drivetrain

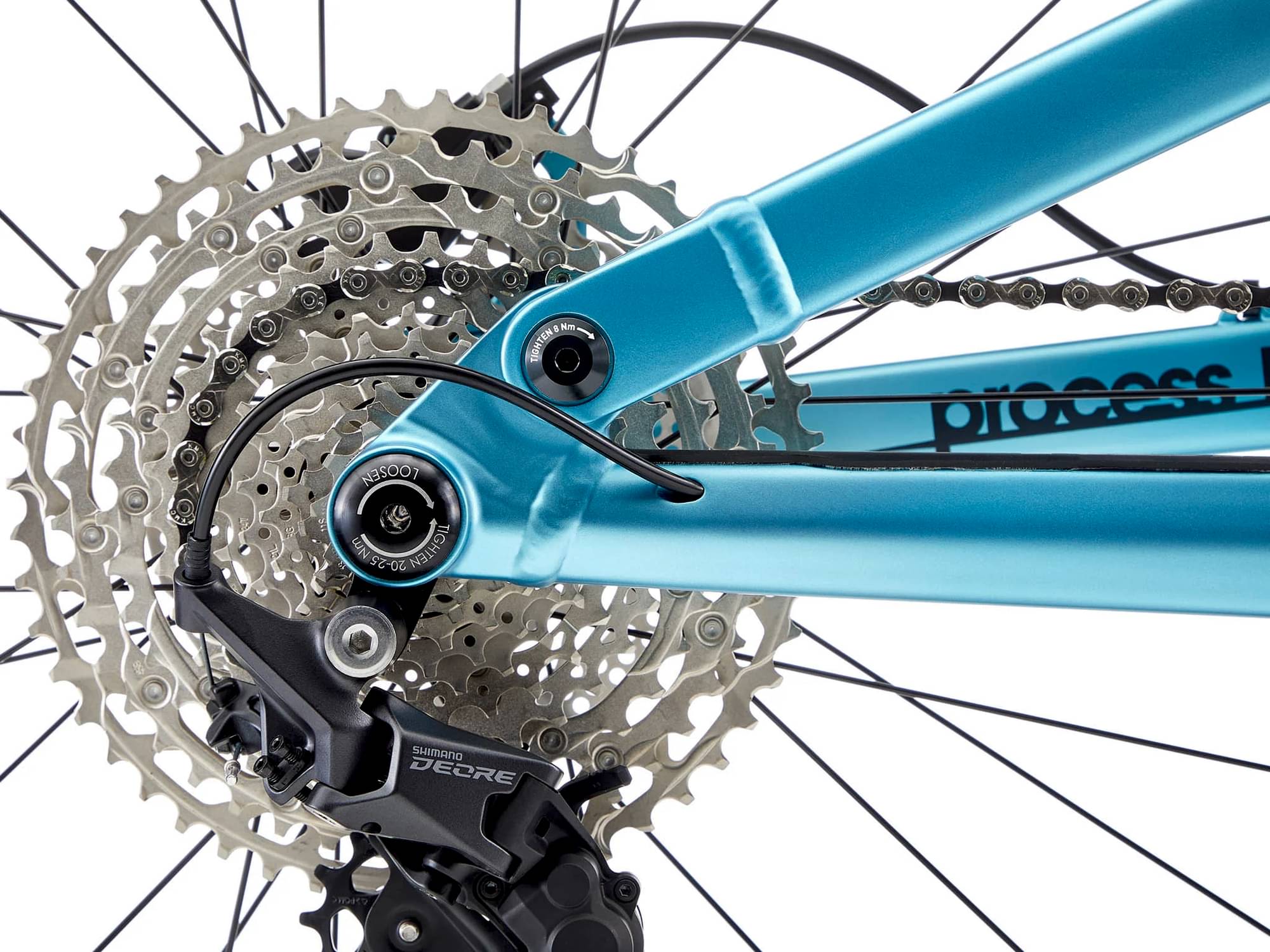

Rear Derailleur
Shimano Deore 11spd
Front Derailleur
n/a
Shift Levers
Shimano Deore 11spd
Cassette
Shimano Deore 11-51t 11spd

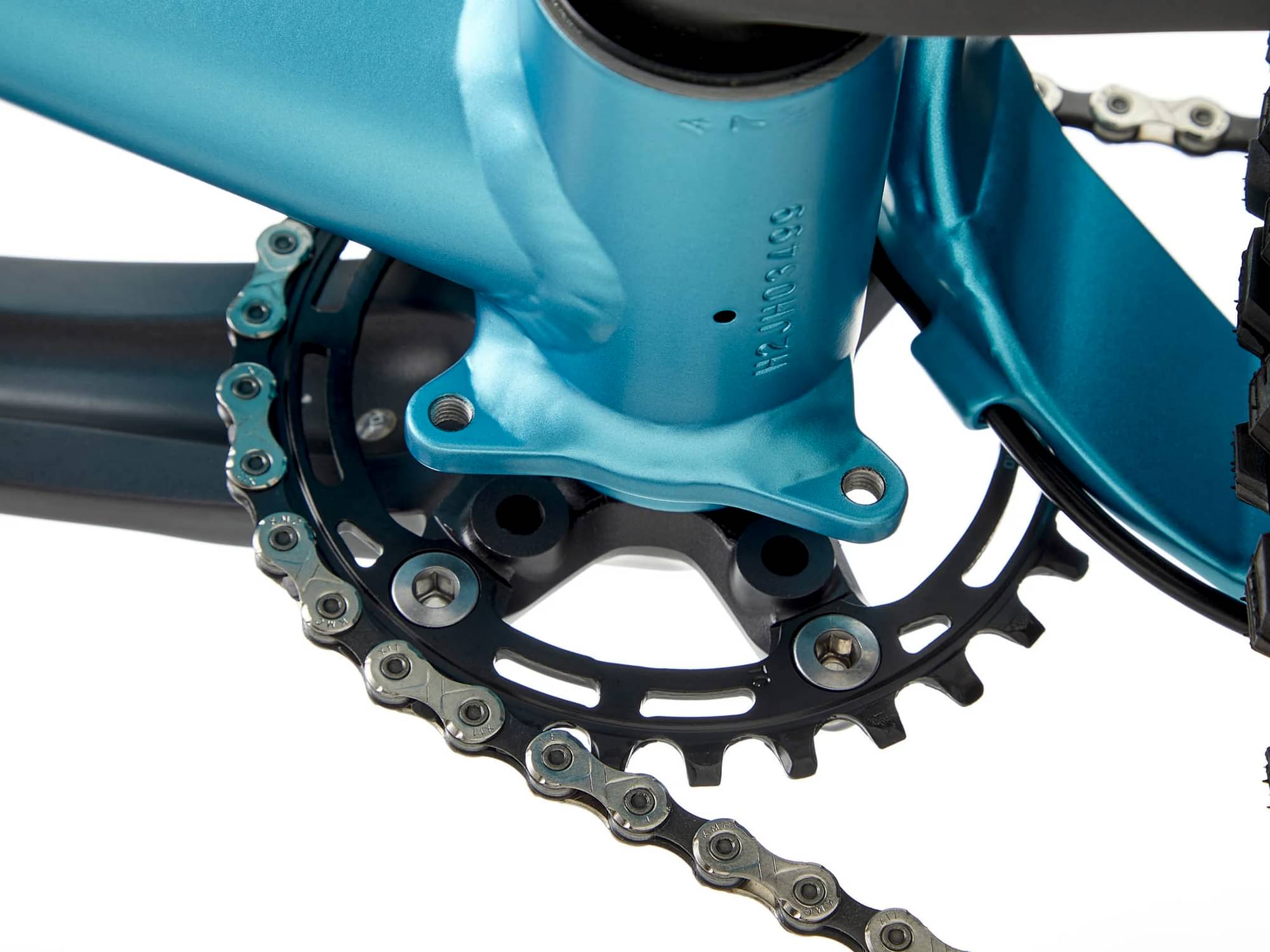

Crank
Shimano Deore, 30t
Bottom Bracket
Shimano Deore PF92
Chain
KMC X11
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano 110x15mm
Rear Hub
Shimano 148x12mm
Rims
WTB ST i30 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Minion DHF EXO TR DUAL 27.5x2.5" WT, Rear: Maxxis Minion DHF EXO TR DUAL 27.5x2.5" WT
Brakes
Brakes
Shimano MT201 Hydraulic
Brake Levers
Shimano MT201 Hydraulic

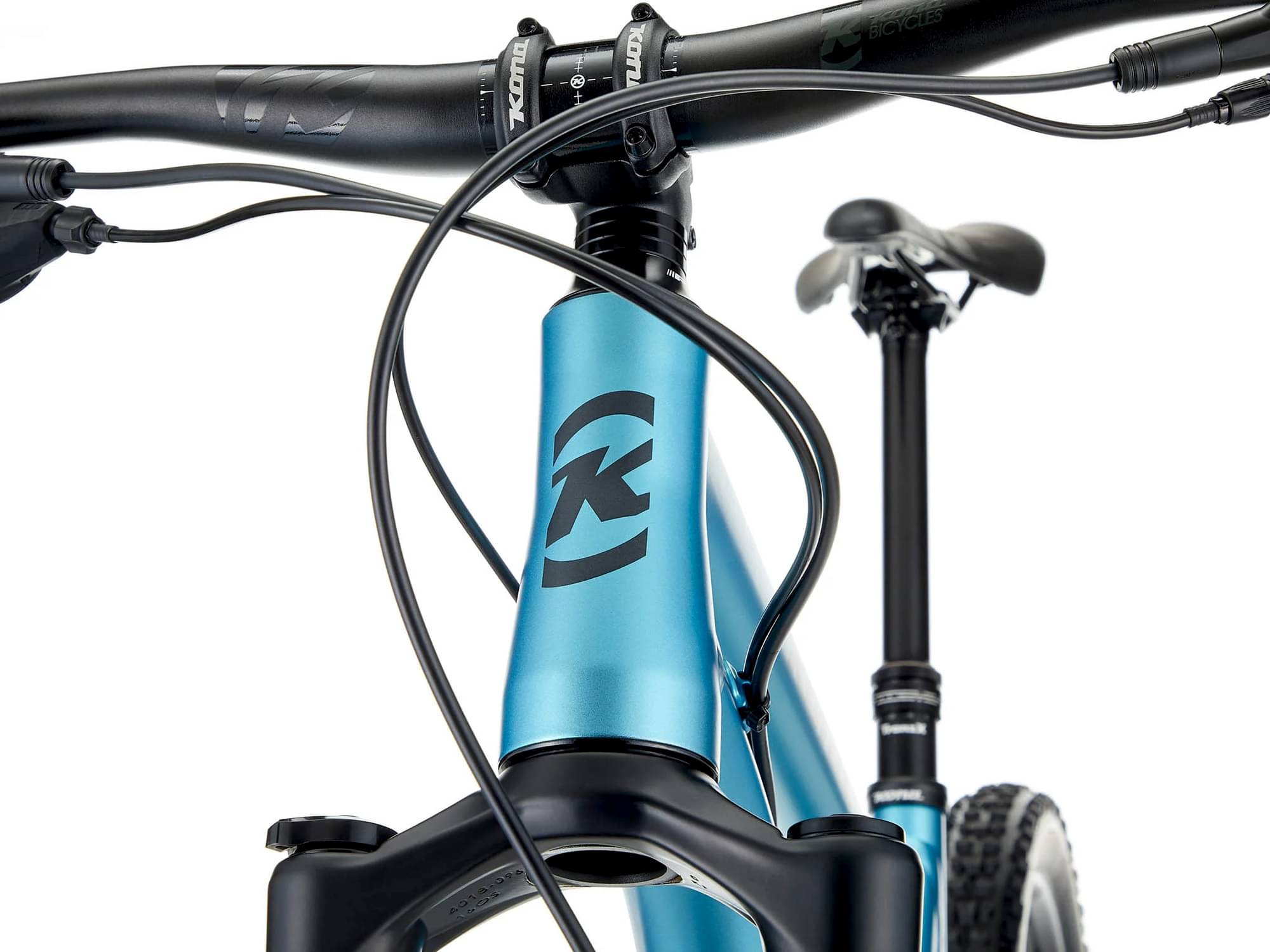

Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57B
Seat
Saddle
Kona Trail
Seatpost
TranzX Dropper +RAD Internal 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.35 mm | 1.3 mm | 1.23 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 706 mm | 735 mm | 765 mm | 794 mm | 834 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 107 mm | 108 mm | 107 mm | 108 mm | 108 mm |
| Stack | 579 mm | 589 mm | 599 mm | 609 mm | 620 mm |
| Reach | 394 mm | 419 mm | 444 mm | 469 mm | 504 mm |
| Top Tube Length | 531 mm | 561 mm | 590 mm | 619 mm | 658 mm |
| Seat Tube Angle | 76.8 ° | 76.6 ° | 76.5 ° | 76.3 ° | 76.2 ° |
| Seat Tube Length | 360 mm | 385 mm | 410 mm | 450 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 116 mm | 127 mm | 138 mm | 149 mm | 160 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1125 mm | 1154 mm | 1184 mm | 1213 mm | 1253 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 668 mm | 681 mm | 706 mm | 706 mm | 705 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 154 cm | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
Process 134 27.5 belongs to the Kona Process 134 model. There are 38 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Kona Process 134 27.5 2023 is the most economical model, with a starting price of 2599$. Kona Process 134 CR 29 2023 on the other hand costs 5199$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2599$. Comparing this to the average Trail bike price, we see that the price is 6.27% smaller.
Process 134 27.5 components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Process 134 27.5 has a rear shock with a travel of 134mm. The model RockShox Deluxe Select Trunnion is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Process 134 27.5 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.

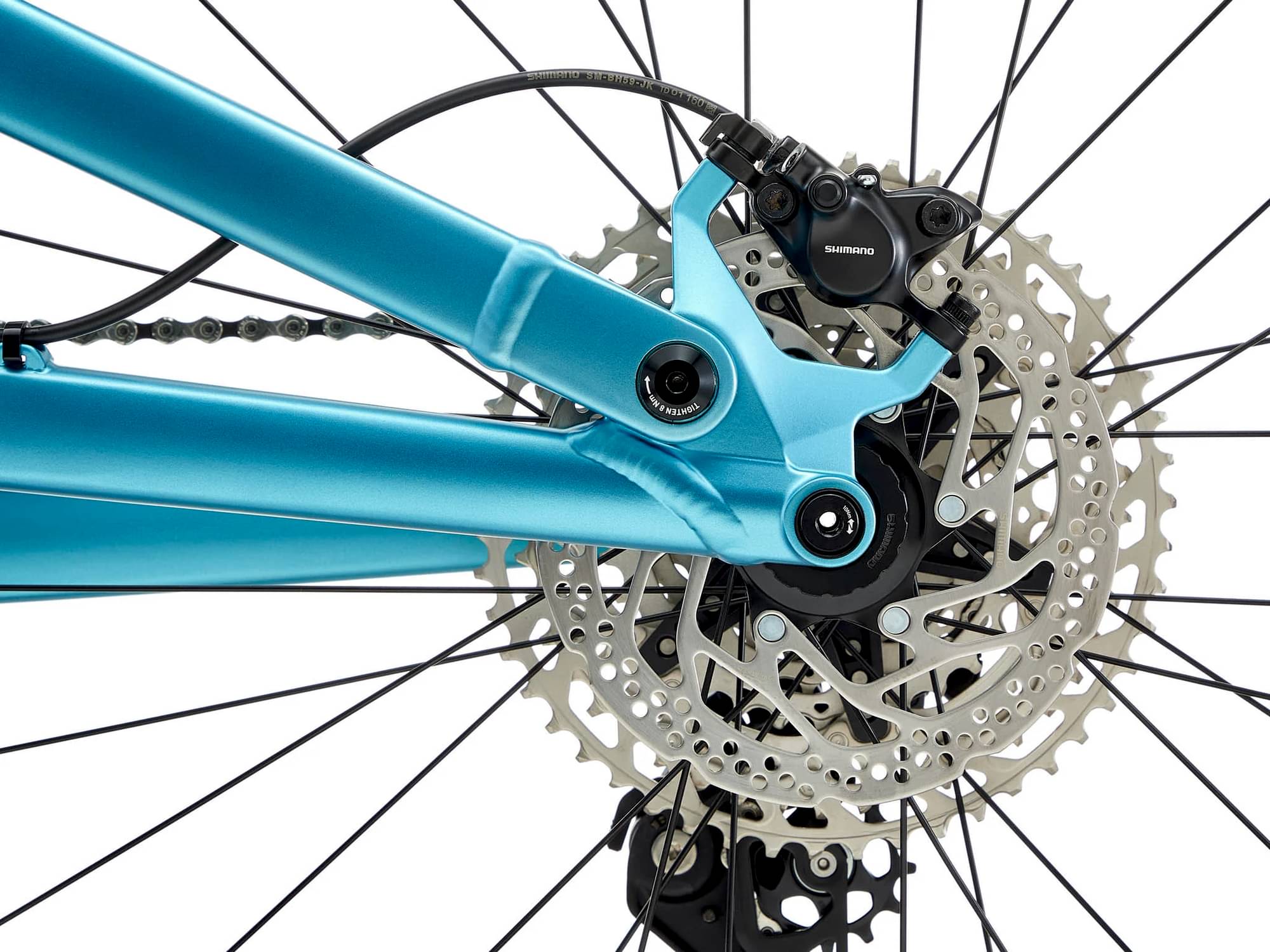

Brakes
When you want to stop the bike in time, the brakes are vital. The Process 134 27.5 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 195 cm (4.82 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Kona Process 134 27.5 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
