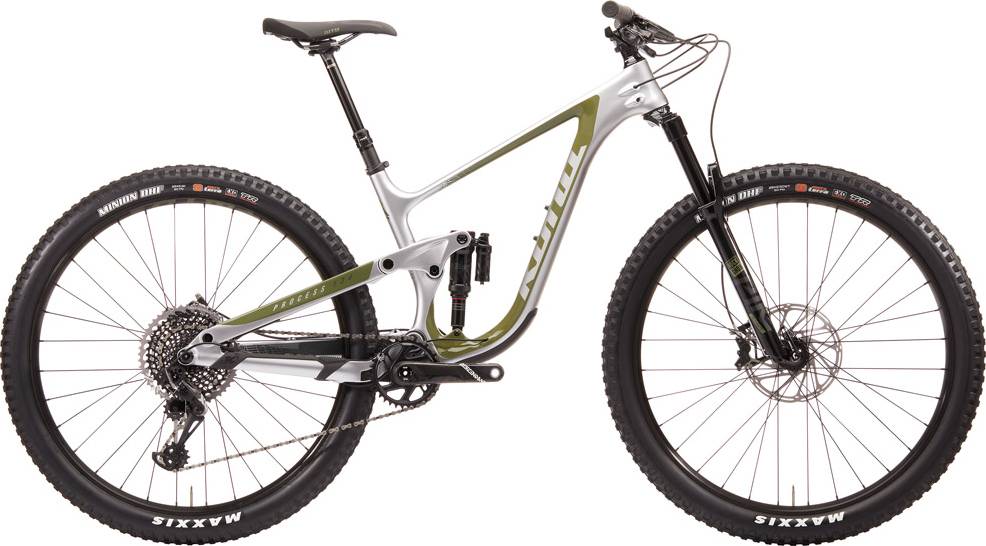

Kona Process 134 CR/DL 29 2020
2020 Mountain
Estimate price |
5,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 134mm -
Fork RockShox Pike Ultimate
-
Groupset X01, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Carbon 134mm Travel
Suspension Fork
RockShox Pike Ultimate RC2 Charger 2 DebonAir 140mm Tapered 110mm Spacing
Rear Shock
RockShox Super Deluxe Ultimate Trunnion
Drivetrain
Rear Derailleur
SRAM X01-Eagle
Front Derailleur
n/a
Shift Levers
SRAM X01-Eagle
Cassette
SRAM X01-Eagle 10-50t 12spd
Crank
SRAM Descendant Carbon DUB, 34t X-Sync Eagle
Bottom Bracket
SRAM DUB PF92
Chain
SRAM GX-Eagle
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
DT Swiss 370 110x15mm
Rear Hub
DT Swiss 370 148x12mm
Rims
WTB KOM Light i30 TCS
Spokes
Stainless Black 14g
Tires
Maxxis Minion DHF EXO TR 3C 29x2.5" WT
Brakes
Brakes
SRAM G2 RSC
Brake Levers
SRAM G2 RSC
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA Orbit 1.5 E ZS
Seat
Saddle
WTB Volt Pro
Seatpost
Rock Shox Reverb w/1x Remote Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.34 mm | 1.29 mm | 1.22 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 734 mm | 761 mm | 791 mm | 830 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 603 mm | 607 mm | 617 mm | 627 mm |
| Reach | 427 mm | 452 mm | 477 mm | 512 mm |
| Top Tube Length | 571 mm | 598 mm | 627 mm | 666 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.3 ° | 76.2 ° |
| Seat Tube Length | 385 mm | 410 mm | 450 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 93 mm | 98 mm | 109 mm | 120 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1161 mm | 1188 mm | 1218 mm | 1257 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 717 mm | 727 mm | 727 mm | 727 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
Process 134 CR/DL 29 belongs to the Kona Process 134 model. Kona released 38 bikes variations of this model so far. Take a sneak peek at all Kona Process 134 bikes models from 2020, by clicking here.
Model range prices
Kona Process 134 29 2020 is the most affordable bike of this model and has a price of 2399$. On the other hand, Kona Process 134 CR/DL 29 2020, is the most expensive and costs 5999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5999$. Doing a quick comparison, we notice that Process 134 CR/DL 29 price is 117.2% higher than the average cost of a Trail bike.
Process 134 CR/DL 29 components
Fork
The Process 134 CR/DL 29 comes factory-installed with the RockShox Pike Ultimate fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Process 134 CR/DL 29 has a rear shock with a travel of 134mm. The model RockShox Super Deluxe Ultimate Trunnion is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Process 134 CR/DL 29 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Process 134 CR/DL 29 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Kona Process 134 CR/DL 29 bike has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Kona Process 134 CR/DL 29 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
