Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 134mm -
Fork RockShox Pike RCT3
-
Groupset XX1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 134mm Travel
Suspension Fork
RockShox Pike RCT3 140mm QR15 Tapered
Rear Shock
RockShox Monarch RT
Drivetrain
Rear Derailleur
SRAM XX1
Front Derailleur
n/a
Shift Levers
SRAM XX1
Cassette
SRAM XX1 10-42t 11spd
Crank
34t
Bottom Bracket
SRAM Press Fit GXP 92
Chain
SRAM XX1
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Hope Pro II QR15
Rear Hub
Hope Pro II 142x12mm
Rims
WTB Frequency Team i23 TCS
Spokes
DT Competition 2.0/1.8 Black
Tires
Maxxis Ardent EXO TR 27.5x2.4"
Brakes
Brakes
Shimano XT
Brake Levers
Shimano XT
Disk Rotors
Shimano IceTech 180mm
Cockpit
Stem
Kona 40mm
Handlebar
RaceFace Atlas
Grips
Kona S-LOG
Headset
FSA Orbit 1.5 ZS No.57
Seat
Saddle
WTB Volt Team
Seatpost
KS Lev Integra
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 697 mm | 715 mm | 747 mm | 776 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 97 mm | 102 mm | 97 mm | 97 mm |
| Stack | 601 mm | 610 mm | 615 mm | 624 mm |
| Reach | 421 mm | 440 mm | 465 mm | 490 mm |
| Top Tube Length | 587 mm | 605 mm | 636 mm | 665 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 405 mm | 405 mm | 450 mm | 465 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1128 mm | 1146 mm | 1178 mm | 1206 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 655 mm | 655 mm | 665 mm | 665 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
Model Overview

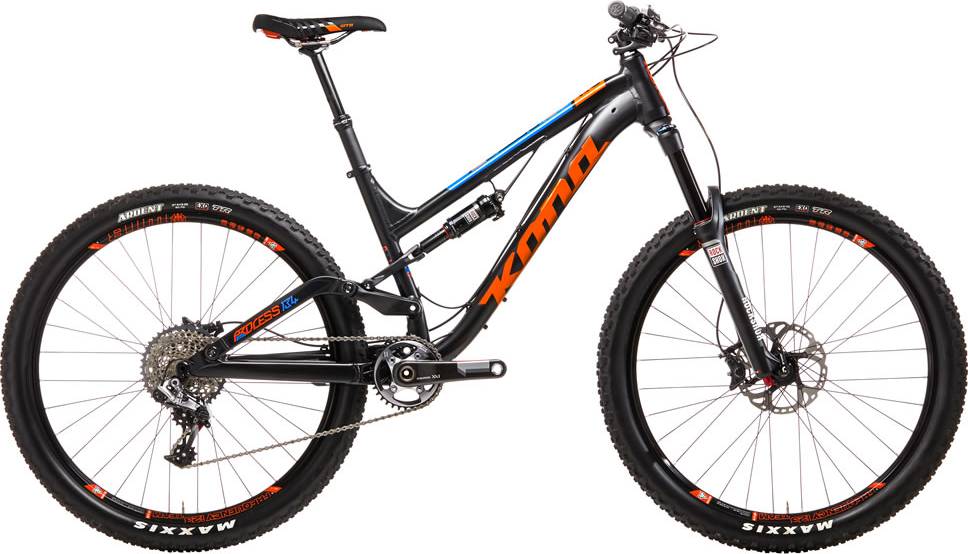

PROCESS 134 SUP belongs to the Kona Process 134 model. 38 bikes variations carry this model name so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The fork installed on this bike is the RockShox Pike RCT3 model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The PROCESS 134 SUP has a rear shock with a travel of 134mm. The model RockShox Monarch RT is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the PROCESS 134 SUP bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The PROCESS 134 SUP has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Kona PROCESS 134 SUP comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
