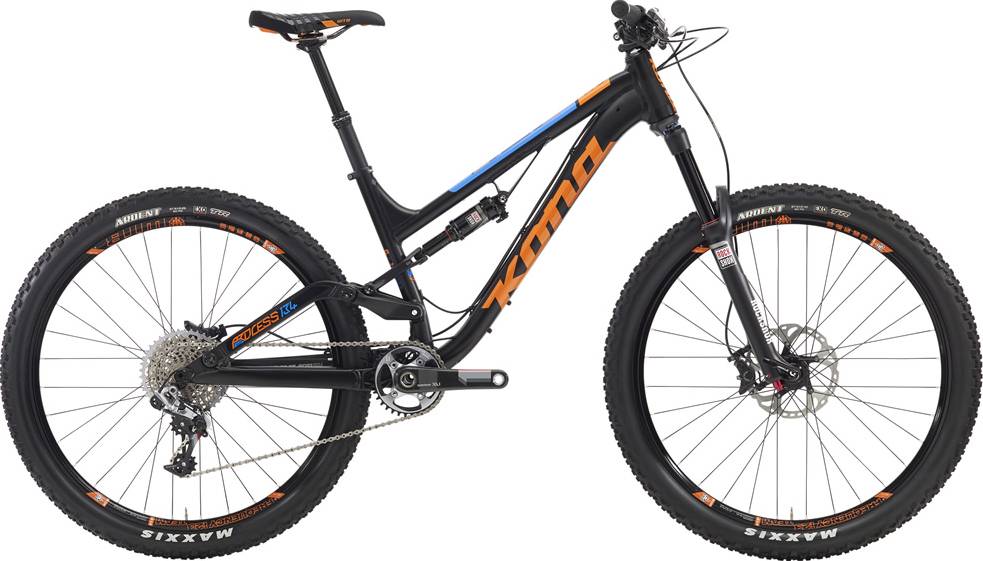

Kona Process 134 Supreme 2016
2016 Mountain
Estimate price |
5,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 134mm -
Fork RockShox Pike RCT3
-
Groupset XX1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 134mm Travel
Suspension Fork
RockShox Pike RCT3 140mm QR15 Tapered
Rear Shock
RockShox Monarch RT3
Drivetrain
Rear Derailleur
SRAM XX1
Front Derailleur
n/a
Shift Levers
SRAM XX1
Cassette
SRAM XX1 10-42t 11spd
Crank
34t
Bottom Bracket
SRAM Press Fit GXP 92
Chain
SRAM XX1
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Hope Pro II QR15
Rear Hub
Hope Pro II 142x12mm
Rims
WTB Frequency Team i23 TCS
Spokes
DT Competition 2.0/1.8 Black
Tires
Maxxis Ardent EXO TR 27.5x2.4"
Brakes
Brakes
Shimano XT
Brake Levers
Shimano XT
Disk Rotors
Shimano IceTech 180mm
Cockpit
Stem
Kona 40mm
Handlebar
RaceFace Atlas
Grips
Kona S-LOG
Headset
FSA Orbit 1.5 ZS No.57
Seat
Saddle
WTB Volt Team / Volt Team 250
Seatpost
KS Lev Integra
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 697 mm | 715 mm | 747 mm | 776 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 97 mm | 102 mm | 97 mm | 97 mm |
| Stack | 601 mm | 610 mm | 615 mm | 624 mm |
| Reach | 421 mm | 440 mm | 465 mm | 490 mm |
| Top Tube Length | 587 mm | 605 mm | 636 mm | 665 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 405 mm | 405 mm | 450 mm | 465 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1128 mm | 1146 mm | 1178 mm | 1206 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 655 mm | 655 mm | 665 mm | 665 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
Process 134 Supreme belongs to the Kona Process 134 model. Kona launched 38 bikes of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Model range prices
Kona Process 134 2016 is the most affordable bike of this model and has a price of 2899$. On the other hand, Kona Process 134 Supreme 2016, is the most expensive and costs 5499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Kona released this model in 2016, its price was 5499$. If we compare this with the average Trail bike cost we notice that the price is 99.09% higher.
Overview of components
Fork
The fork installed on this bike is the RockShox Pike RCT3 model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the RockShox Monarch RT3 rear shock model, which has a travel of 134mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Process 134 Supreme 2016 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona Process 134 Supreme is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Kona Process 134 Supreme bike has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Kona Process 134 Supreme includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
