Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 153mm -
Fork RockShox Lyrik Select
-
Groupset GX, NX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 153mm Travel w/Carbon Rocker
Suspension Fork
RockShox Lyrik Select RC Charger DebonAir 160mm Tapered 110mm Spacing
Rear Shock
RockShox Super Deluxe Select Plus Trunnion
Drivetrain
Rear Derailleur
SRAM GX-Eagle
Front Derailleur
n/a
Shift Levers
SRAM NX-Eagle
Cassette
SRAM NX-Eagle 11-50t 12spd
Crank
SRAM NX Eagle DUB, 32t X-Sync Eagle
Bottom Bracket
SRAM DUB PF92
Chain
SRAM SX-Eagle
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 148x12mm
Rims
WTB KOM Trail TCS
Spokes
Stainless Black 14g
Tires
Maxxis Assegai EXO TR 3C 29x2.5" WT
Brakes
Brakes
SRAM Guide R
Brake Levers
SRAM Guide R
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA Orbit 1.5 E ZS
Seat
Saddle
WTB Volt Comp
Seatpost
Trans-X Dropper Internal 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.31 mm | 1.24 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Front Center | 766 mm | 795 mm | 834 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 112 mm | 111 mm | 110 mm |
| Stack | 606 mm | 614 mm | 623 mm |
| Reach | 443 mm | 468 mm | 503 mm |
| Top Tube Length | 596 mm | 625 mm | 664 mm |
| Seat Tube Angle | 76 ° | 75.8 ° | 75.7 ° |
| Seat Tube Length | 410 mm | 450 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1182 mm | 1211 mm | 1251 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm |
| Standover Height | 699 mm | 713 mm | 726 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 182 cm | 195 cm | 195 cm |
About this model

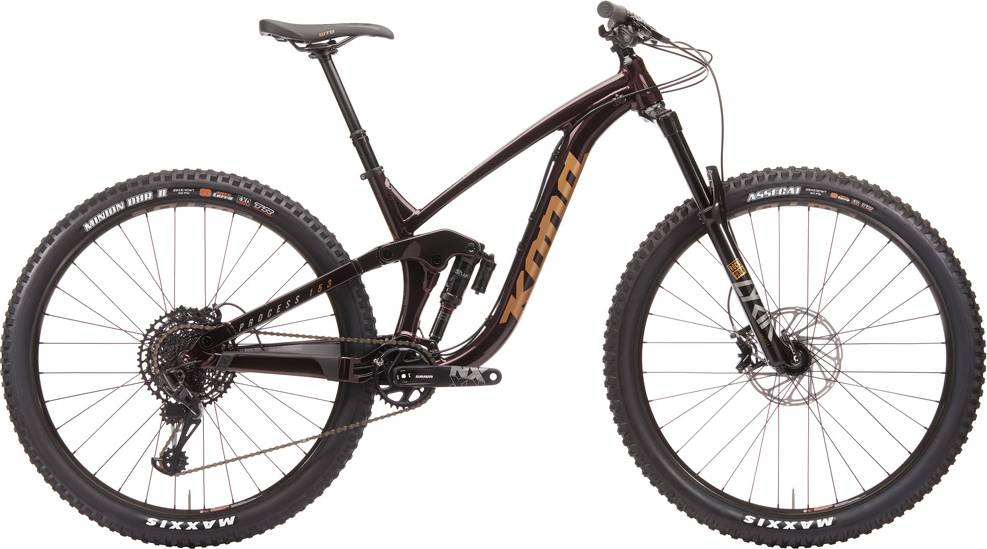

Process 153 DL 29 is part of the Kona Process 153 model. Kona released 42 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Kona Process 153 27.5 2020 has a starting price of 2799$. Kona Process 153 CR/DL 29 TEAM REPLICA 2020 on the other hand is the most expensive at 7999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3499$. Comparing the average cost of an Enduro bike to this one, you will see that Process 153 DL 29 price is 2.86% smaller.
Overview of components
Fork
Kona Process 153 DL 29 2020 bike is equipped with the RockShox Lyrik Select fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Kona Process 153 DL 29 bike has the RockShox Super Deluxe Select Plus Trunnion model installed, and has a travel of 153mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Process 153 DL 29 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona Process 153 DL 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Process 153 DL 29. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
