Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 190mm -
Travel Rear 162mm -
Fork RockShox BoXXer Select
-
Groupset X7, X5 -
Suspension Full -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 162mm Travel
Suspension Fork
RockShox Boxxer Select DebonAir 190mm
Rear Shock
RockShox Super Deluxe Coil Trunnion
Drivetrain

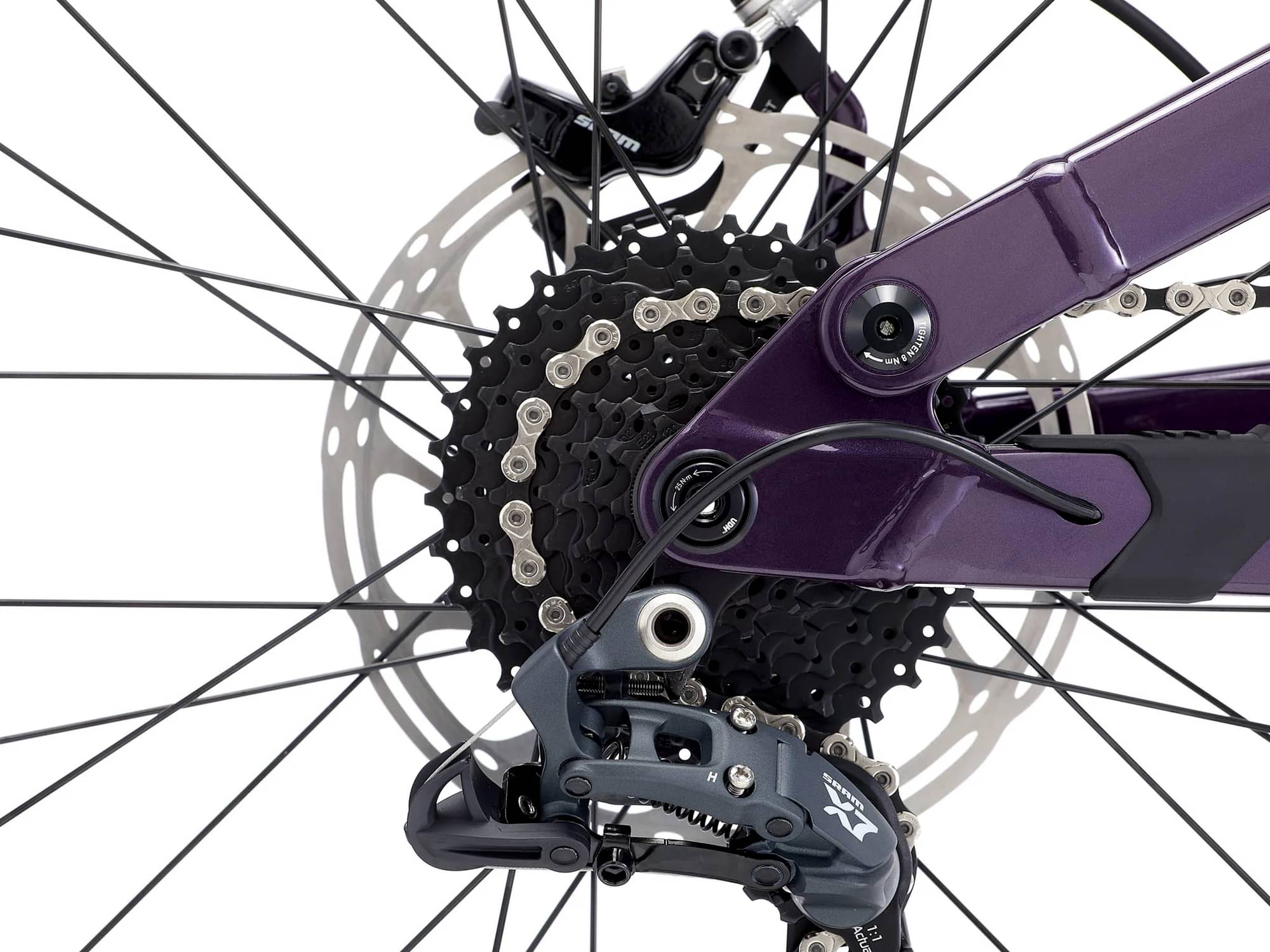

Rear Derailleur
SRAM X7
Front Derailleur
n/a
Shift Levers
SRAM X5
Cassette
SRAM PG920 11-34t 9spd

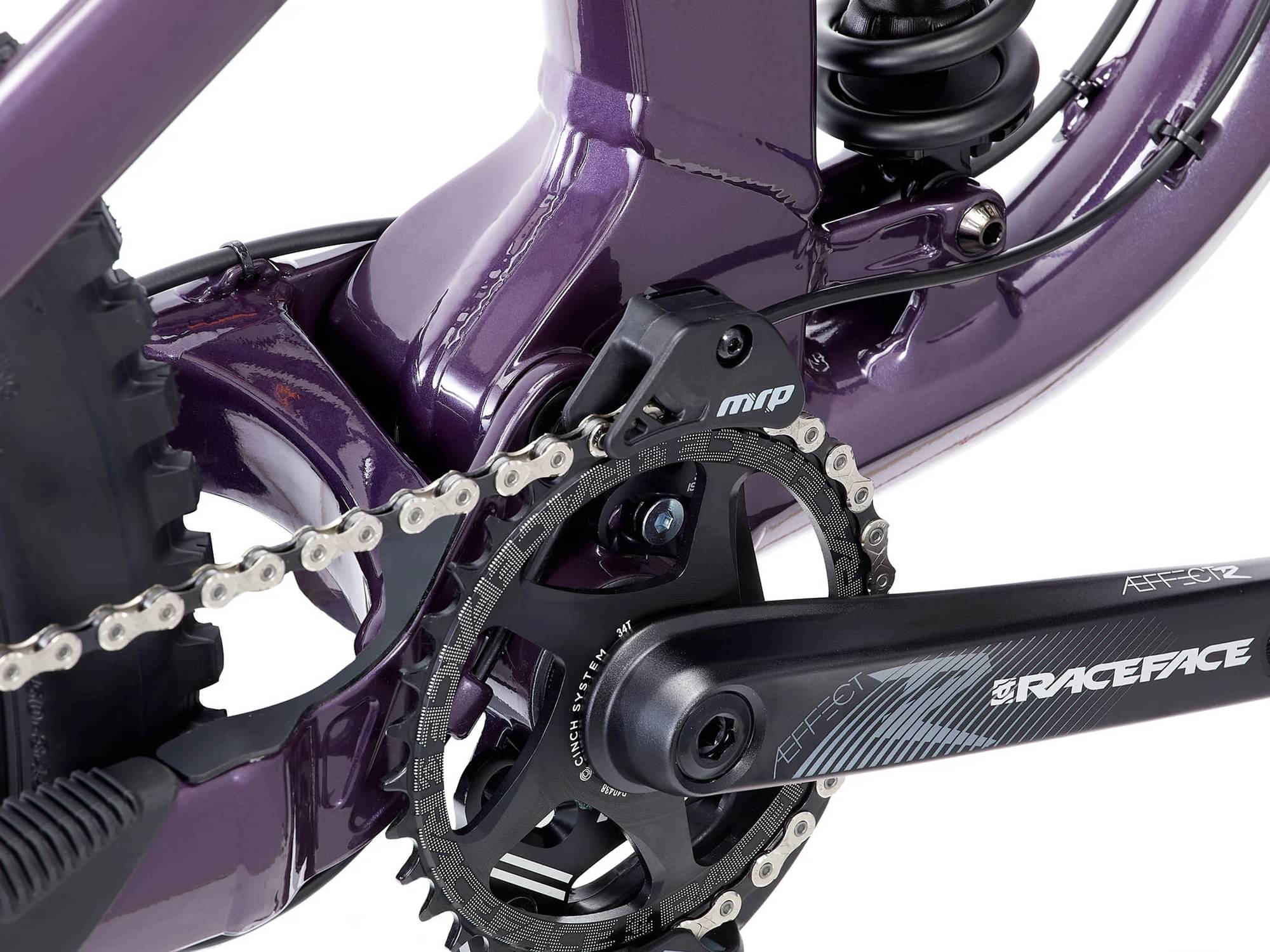

Crank
Race Face Aeffect R, 34t
Bottom Bracket
Race Face PF92
Chain
KMC X9
Chain Guide
MRP
Pedals
n/a
Wheels
Front Hub
Formula 110x20mm
Rear Hub
Formula 148x12mm
Rims
WTB ST i30 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Assegai DH 29x2.5" WT, Rear: Maxxis Assegai DH 29x2.5" WT
Brakes
Brakes
SRAM Guide T
Brake Levers
SRAM Guide T
Cockpit
Stem
Race Face Chester
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA Orbit 1.5 EP ZS
Seat
Saddle
WTB Volt
Seatpost
Kona OB 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.36 mm | 1.3 mm | 1.22 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 783 mm | 808 mm | 838 mm | 878 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 150 mm | 150 mm | 148 mm | 145 mm |
| Stack | 629 mm | 629 mm | 634 mm | 638 mm |
| Reach | 437 mm | 462 mm | 487 mm | 522 mm |
| Top Tube Length | 566 mm | 591 mm | 620 mm | 659 mm |
| Seat Tube Angle | 77.9 ° | 77.9 ° | 77.8 ° | 77.8 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 450 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1218 mm | 1243 mm | 1273 mm | 1313 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 697 mm | 697 mm | 707 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
Model Overview
Process X DH belongs to the Kona Process X model. Kona launched 8 bikes of this model so far. Take a sneak peek at all Kona Process X bikes models from 2024, by clicking here.
Model range prices
Kona Process X 2024 is the most affordable bike of this model and has a price of 4499$. On the other hand, Kona Process X DH 2024, is the most expensive and costs 4699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Downhill bikes
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Kona released this model in 2024, its price was 4699$. If we compare this with the average Downhill bike cost we notice that the price is 38.57% more expensive.
Overview of components

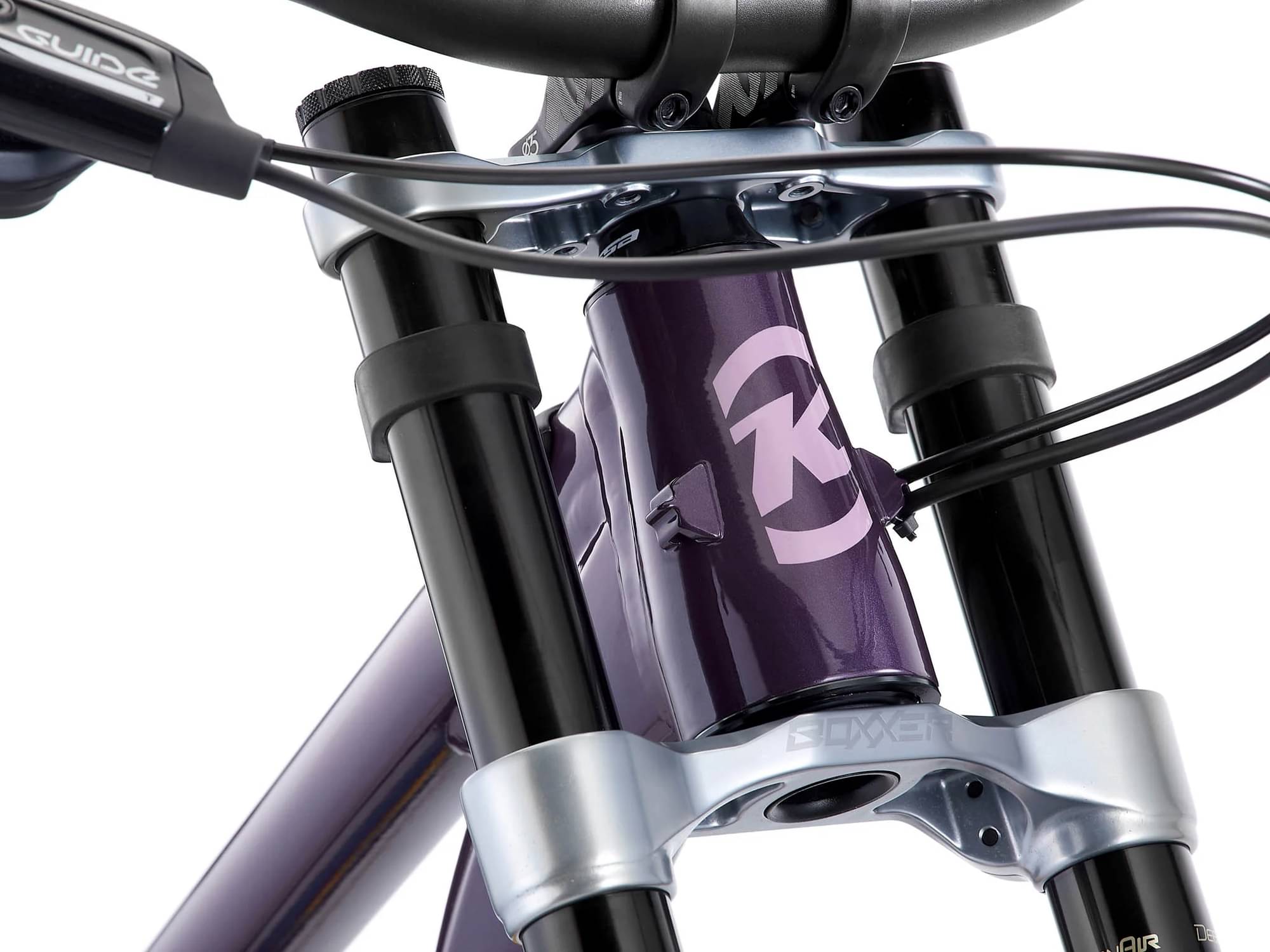

Fork

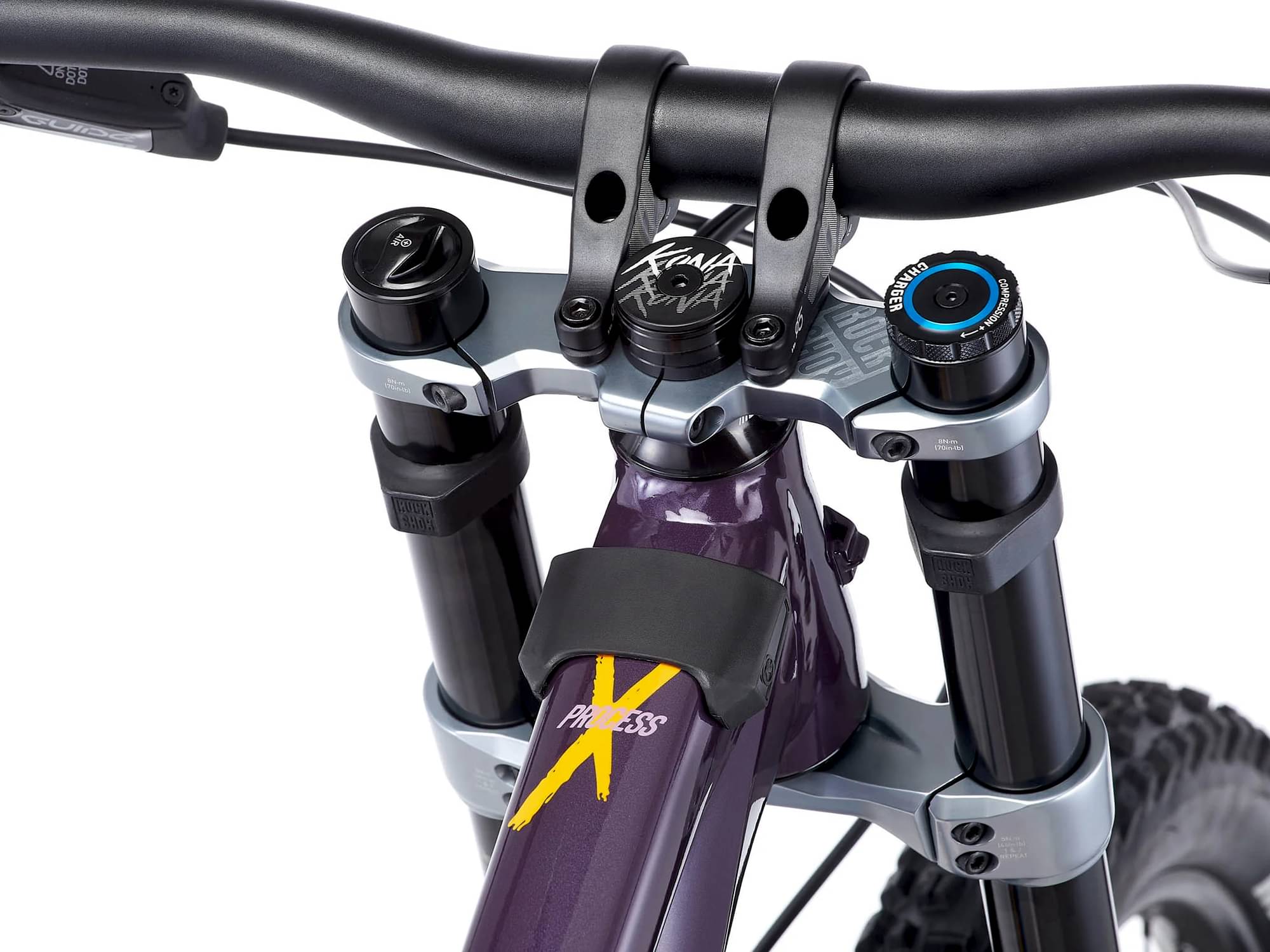

The Process X DH comes factory-installed with the RockShox BoXXer Select fork. This has a travel range of 190mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.

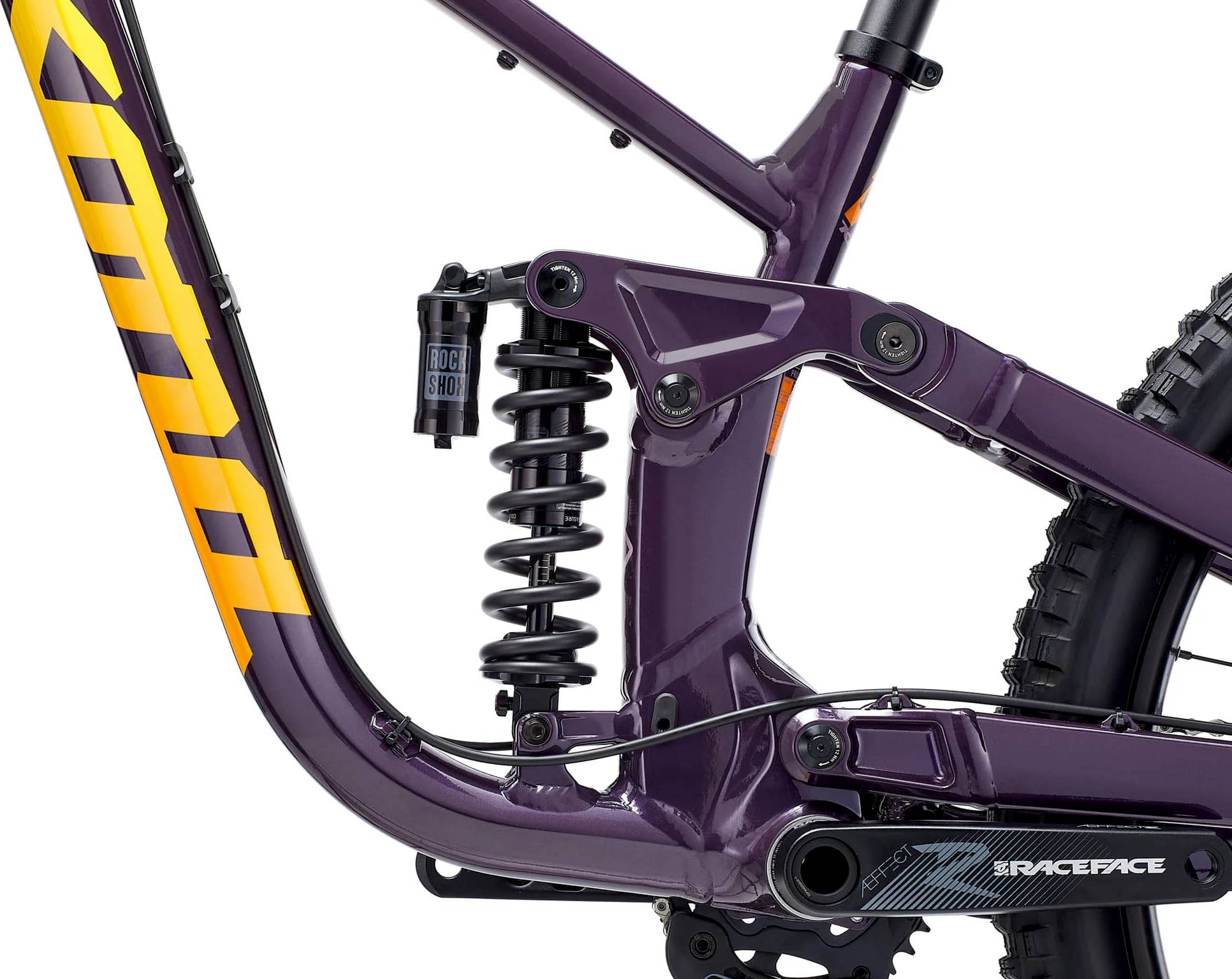

Rear Shock

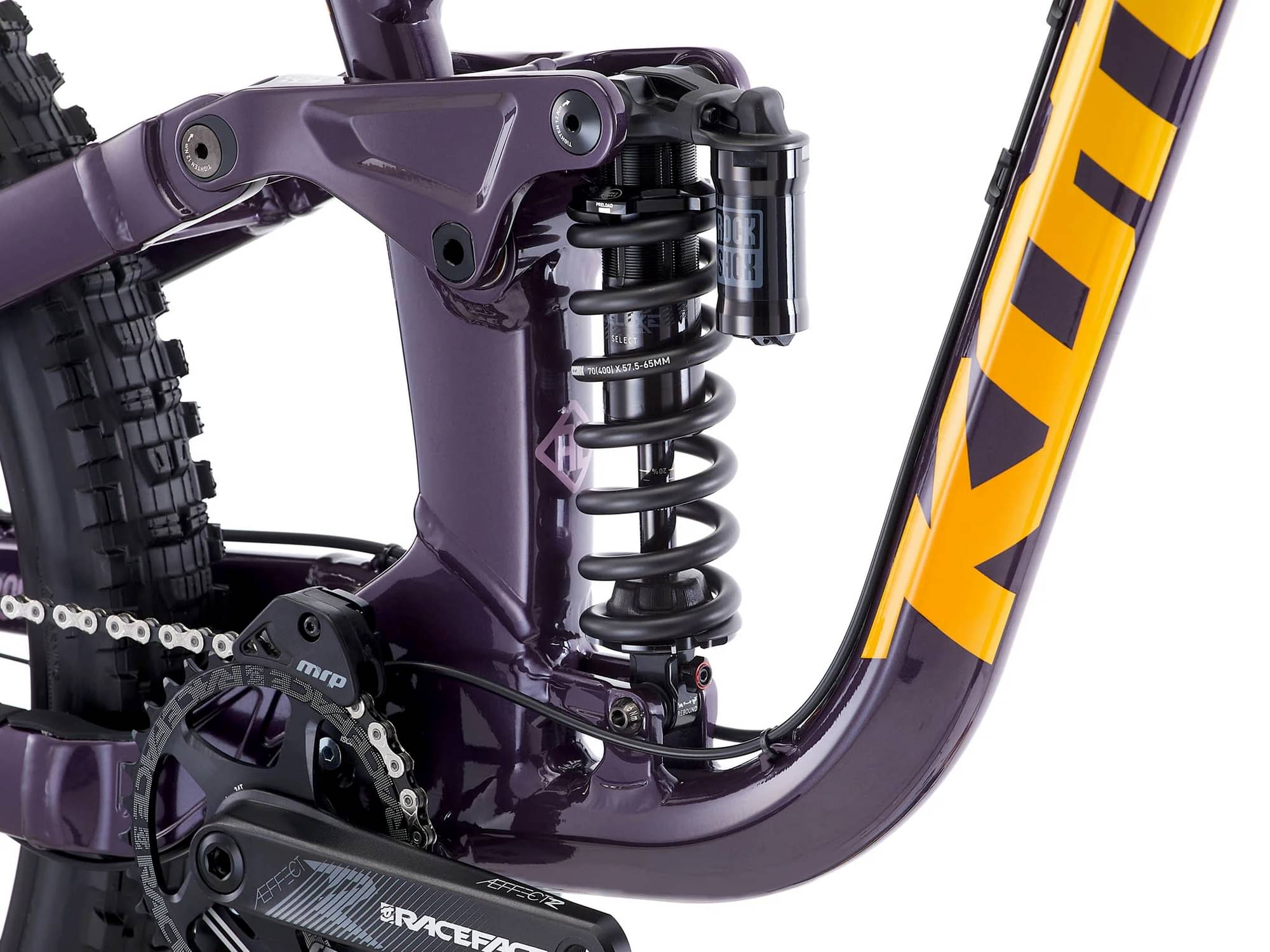

As for the rear shock, this bike has the RockShox Super Deluxe Coil Trunnion model, with a travel of 162mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Process X DH bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes

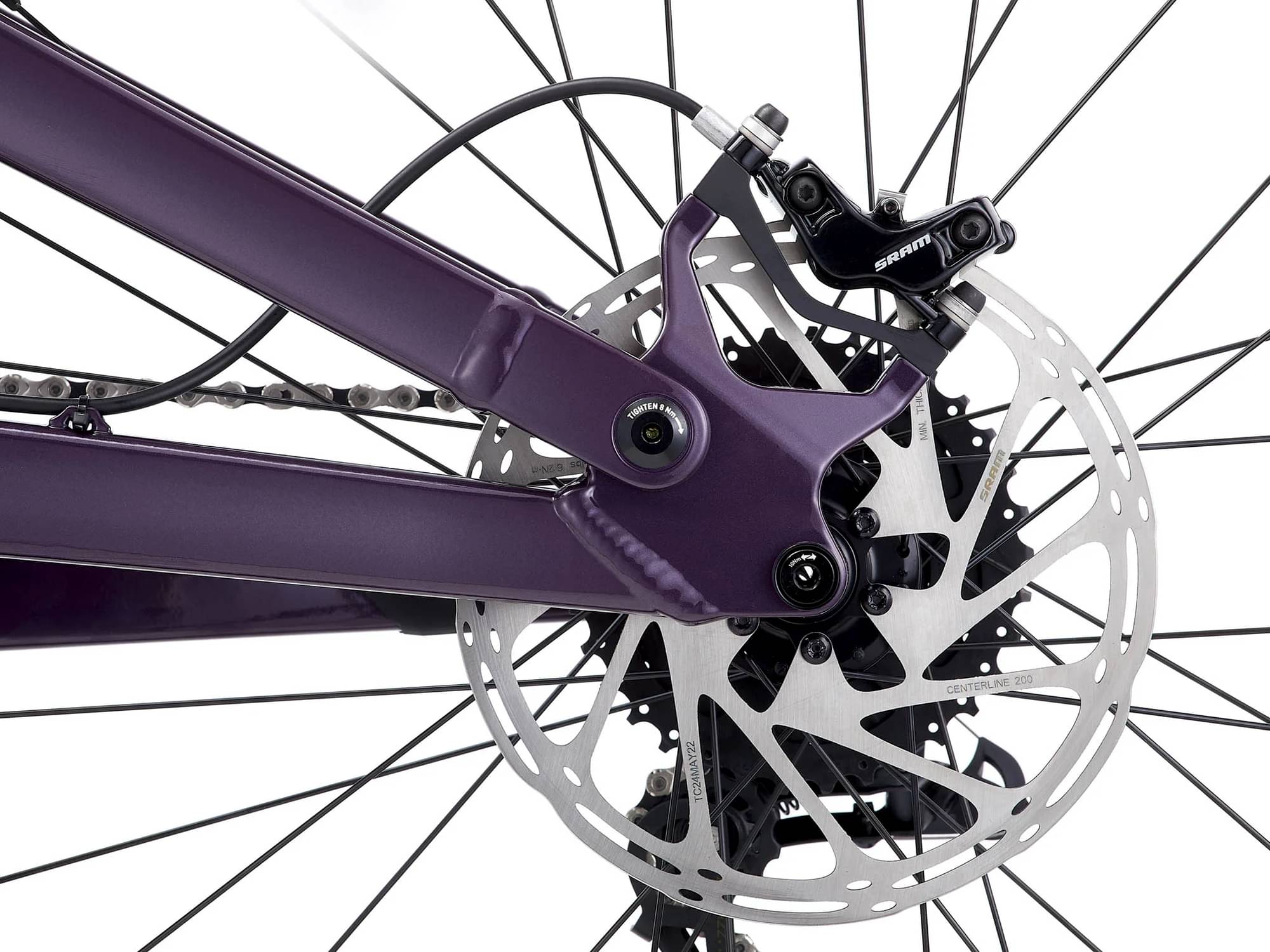

Nothing is more important on a bike than its ability to brake properly. Kona Process X DH is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
