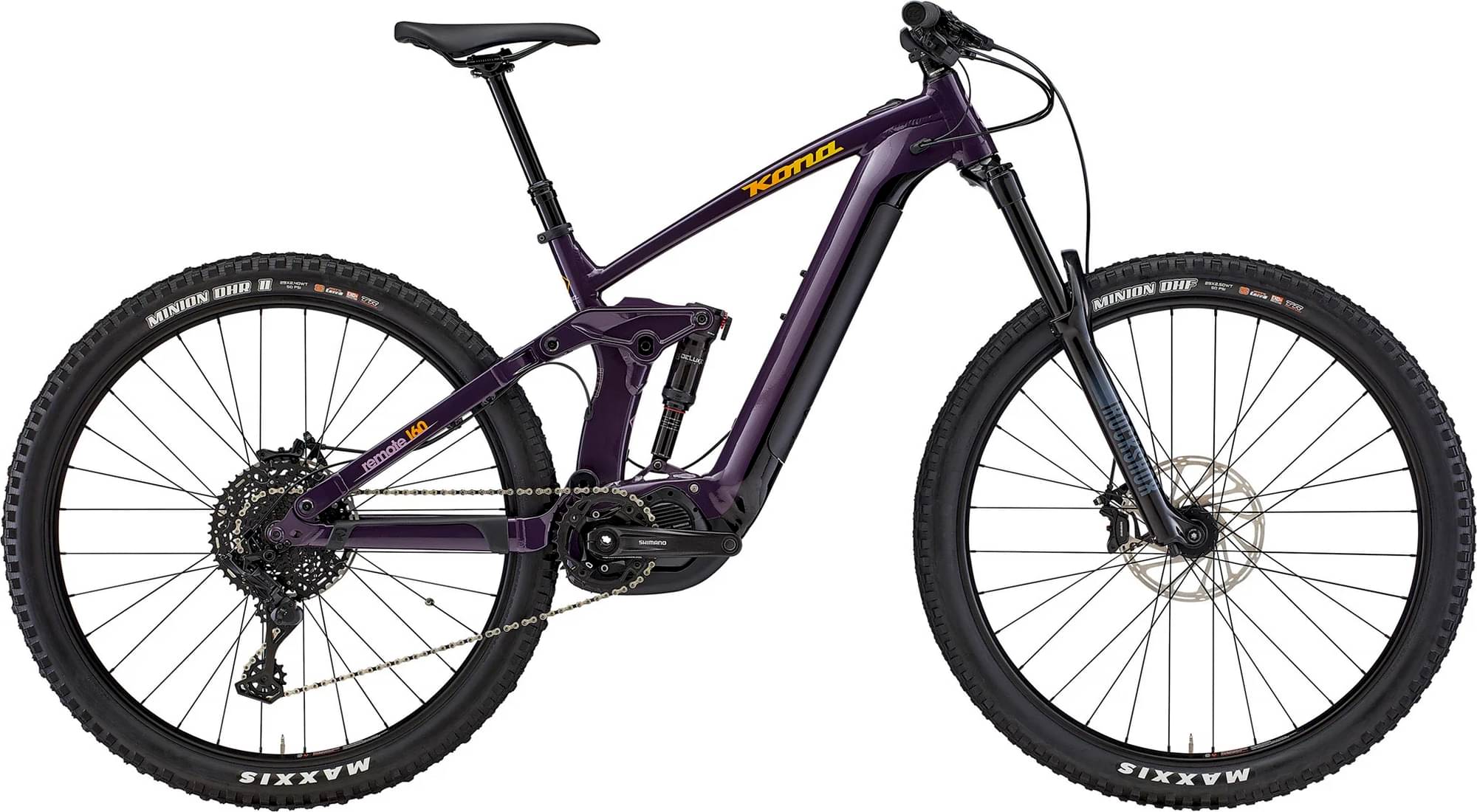

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Gold RL
-
Groupset microSHIFT Advent X, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 160mm Travel
Suspension Fork
RockShox 35 Gold RL DebonAir 160mm Tapered 110 Spacing
Rear Shock
RockShox Deluxe Select + Trunnion
Drivetrain
Rear Derailleur
Microshift Advent X
Front Derailleur
n/a
Shift Levers
Microshift Advent X
Cassette
Microshift Advent X 11-48t 10spd
Crank
Shimano E8000, 34t
Bottom Bracket
n/a
Chain
KMX X10
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 157x12mm
Rims
WTB ST i30 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Minion DHF EXO+ TR 3C 29x2.5" WT, Rear: Maxxis Minion DHF EXO+ TR 3C 29x2.5" WT
Brakes
Brakes
SRAM Guide RE
Brake Levers
SRAM Guide RE
Cockpit

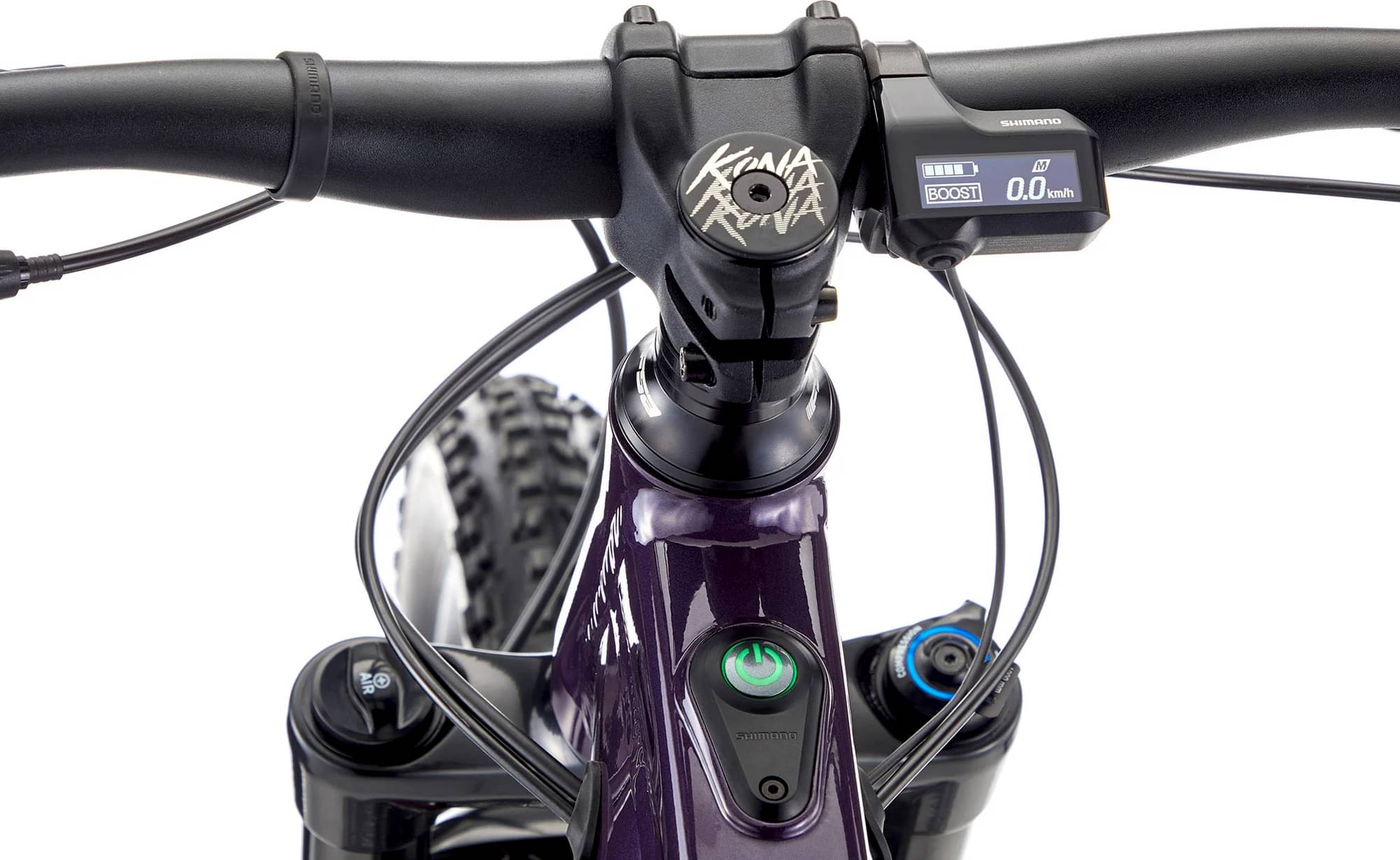

Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57E
Seat
Saddle
WTB Volt
Seatpost
TranzX Dropper Internal 31.6mm
Motor & Battery

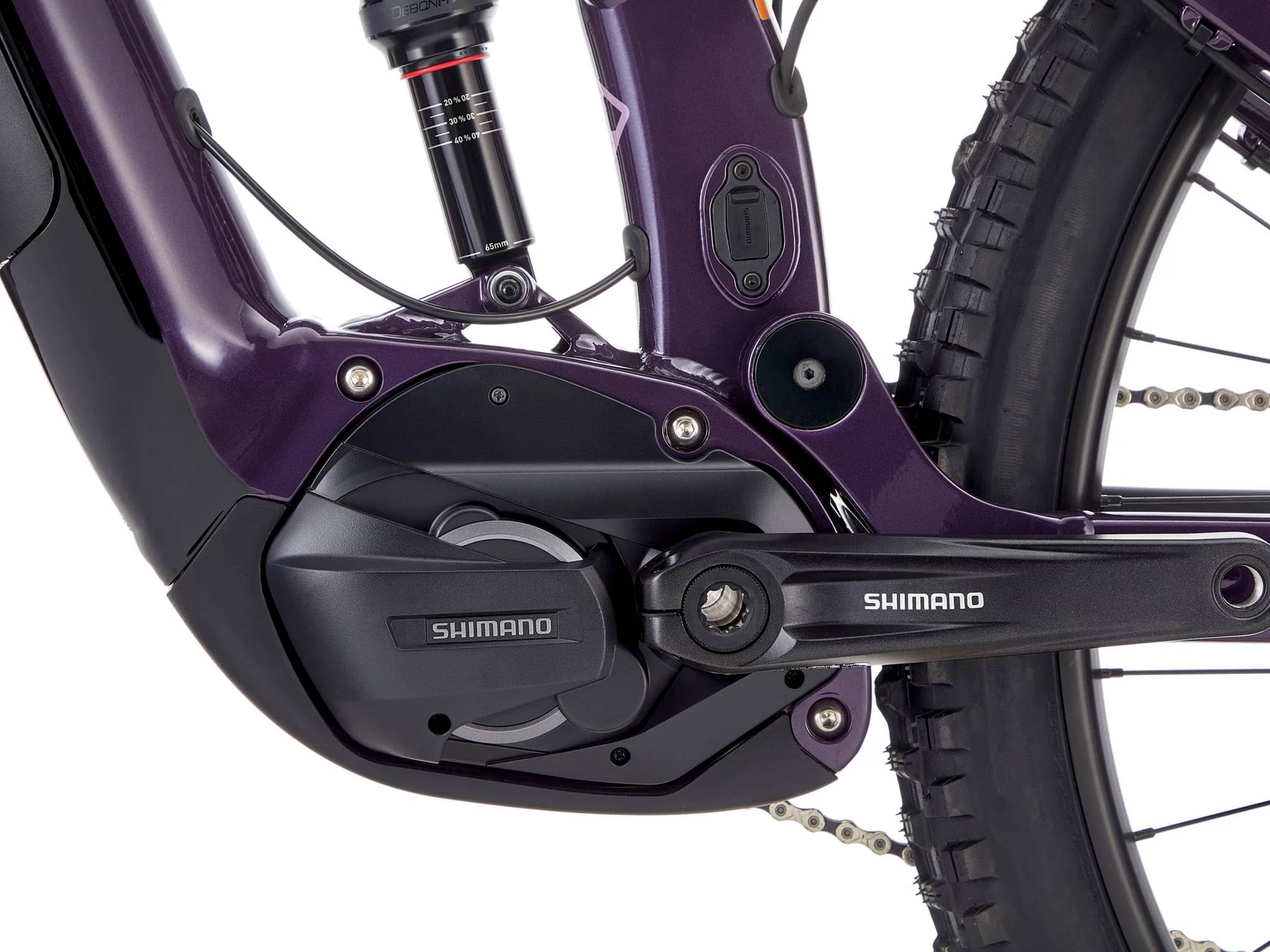

Motor
Shimano E7000 20MPH
Battery
Shimano 504Wh
Charger
Shimano STEPS 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.36 mm | 1.28 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 761 mm | 788 mm | 818 mm | 857 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 126 mm | 127 mm | 127 mm | 127 mm |
| Stack | 622 mm | 627 mm | 637 mm | 646 mm |
| Reach | 419 mm | 444 mm | 469 mm | 504 mm |
| Top Tube Length | 584 mm | 611 mm | 640 mm | 679 mm |
| Seat Tube Angle | 75.1 ° | 75 ° | 74.9 ° | 74.8 ° |
| Seat Tube Length | 385 mm | 410 mm | 450 mm | 485 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1200 mm | 1227 mm | 1256 mm | 1296 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 754 mm | 769 mm | 767 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
Remote 160 is a Kona E Remote model. Kona launched 16 e-bikes of this model so far. You can easily view all of the Kona E Remote e-bikes models from 2023, here.
Model range prices
Kona Remote 2023 is the most economical model, with a starting price of 4799$. Kona Remote 130 2023 on the other hand costs 6399$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6299$. If we compare this with the average Enduro e-bike cost we notice that the price is 31.64% higher.
Overview of components

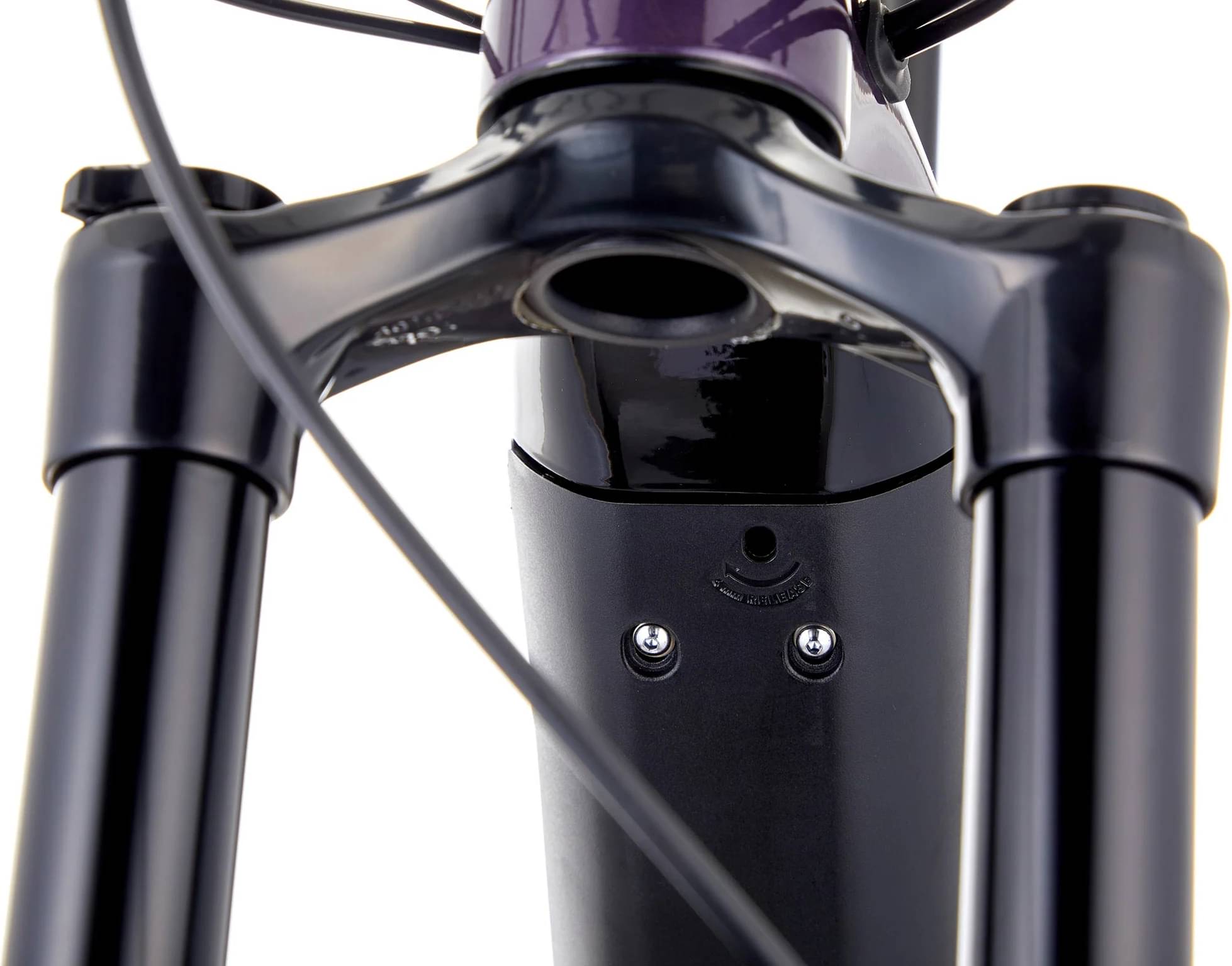

Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.

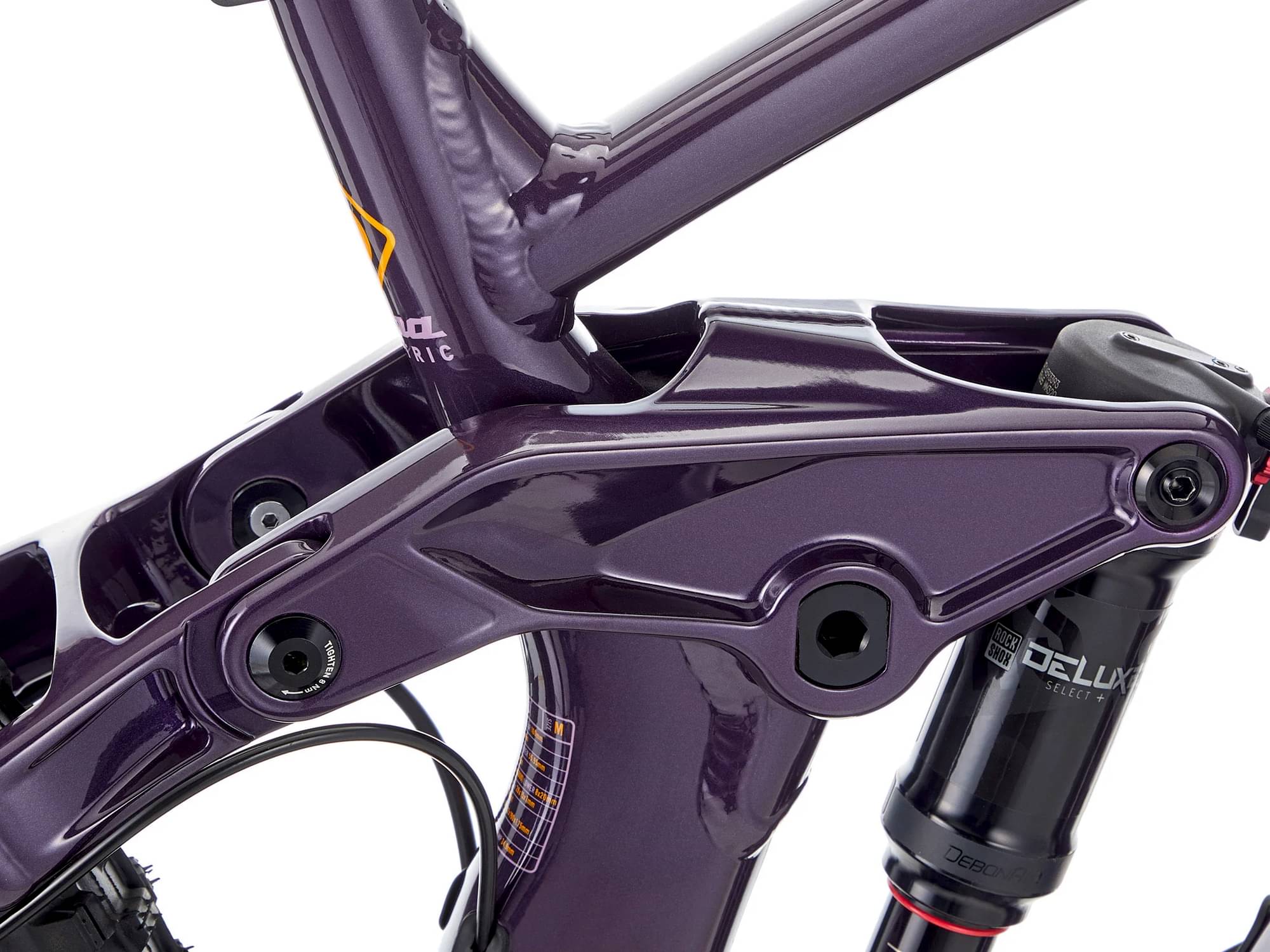

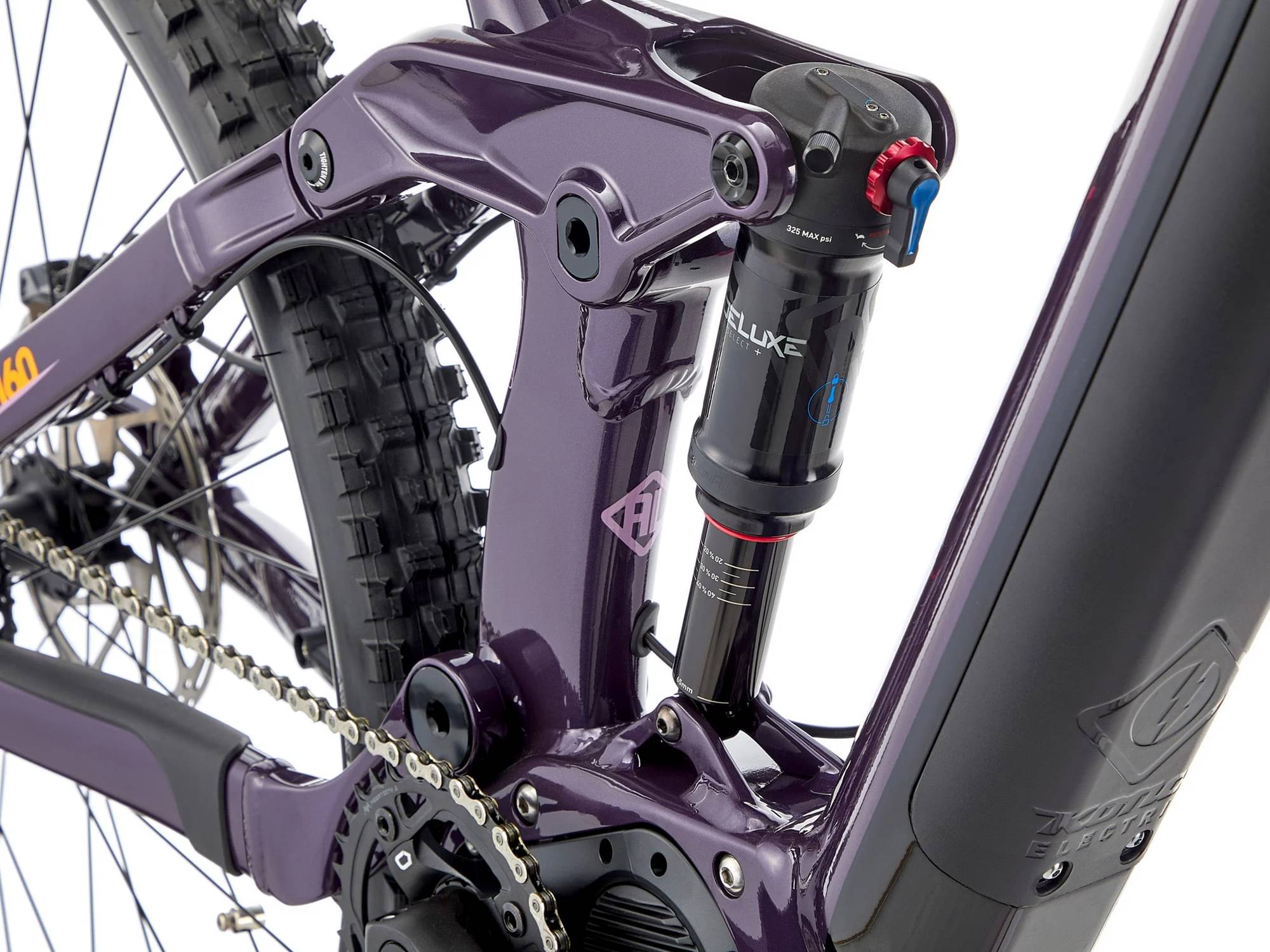

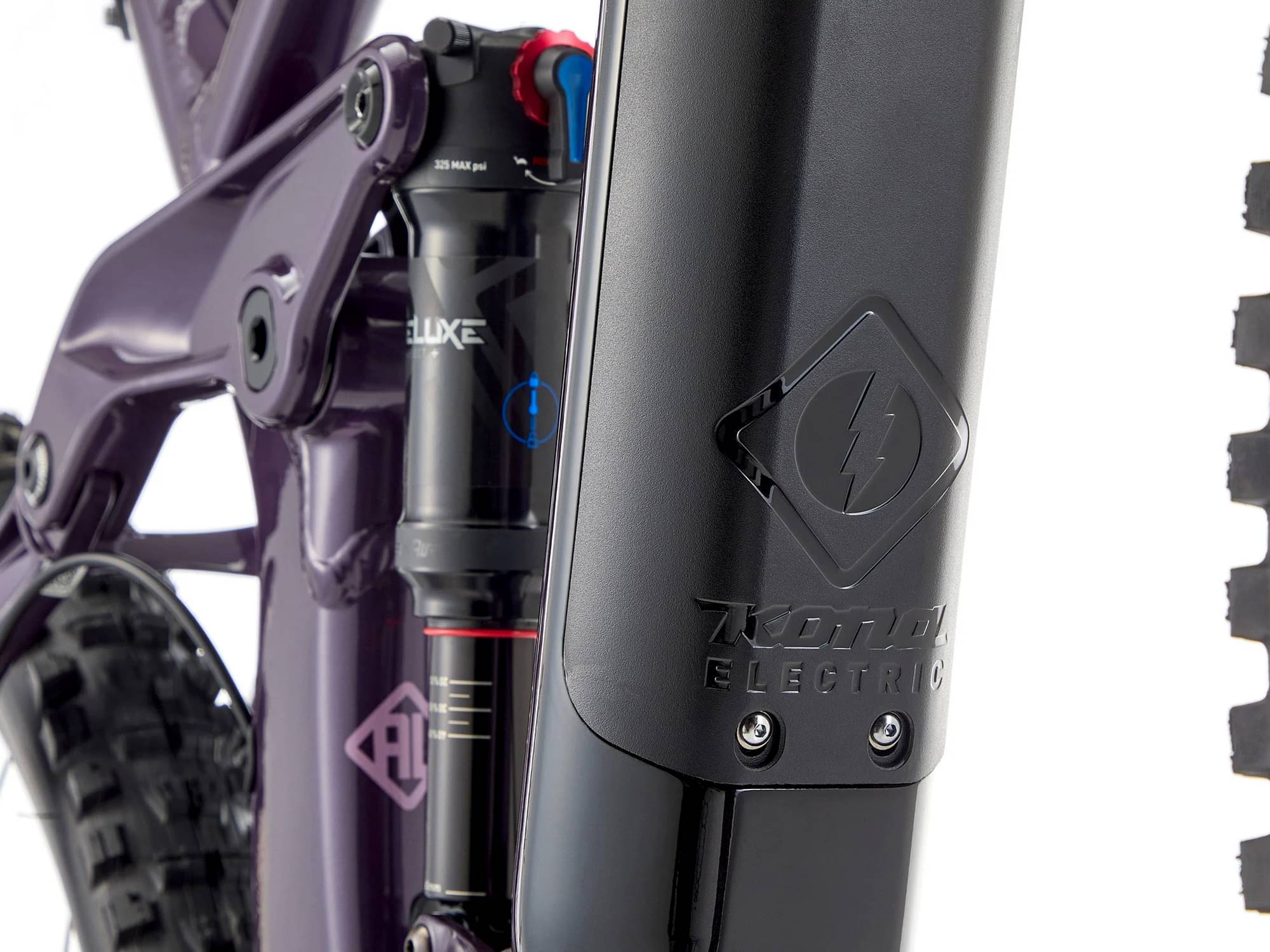

Rear Shock
The Remote 160 has a rear shock with a travel of 160mm. The model RockShox Deluxe Select + Trunnion is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Remote 160 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.

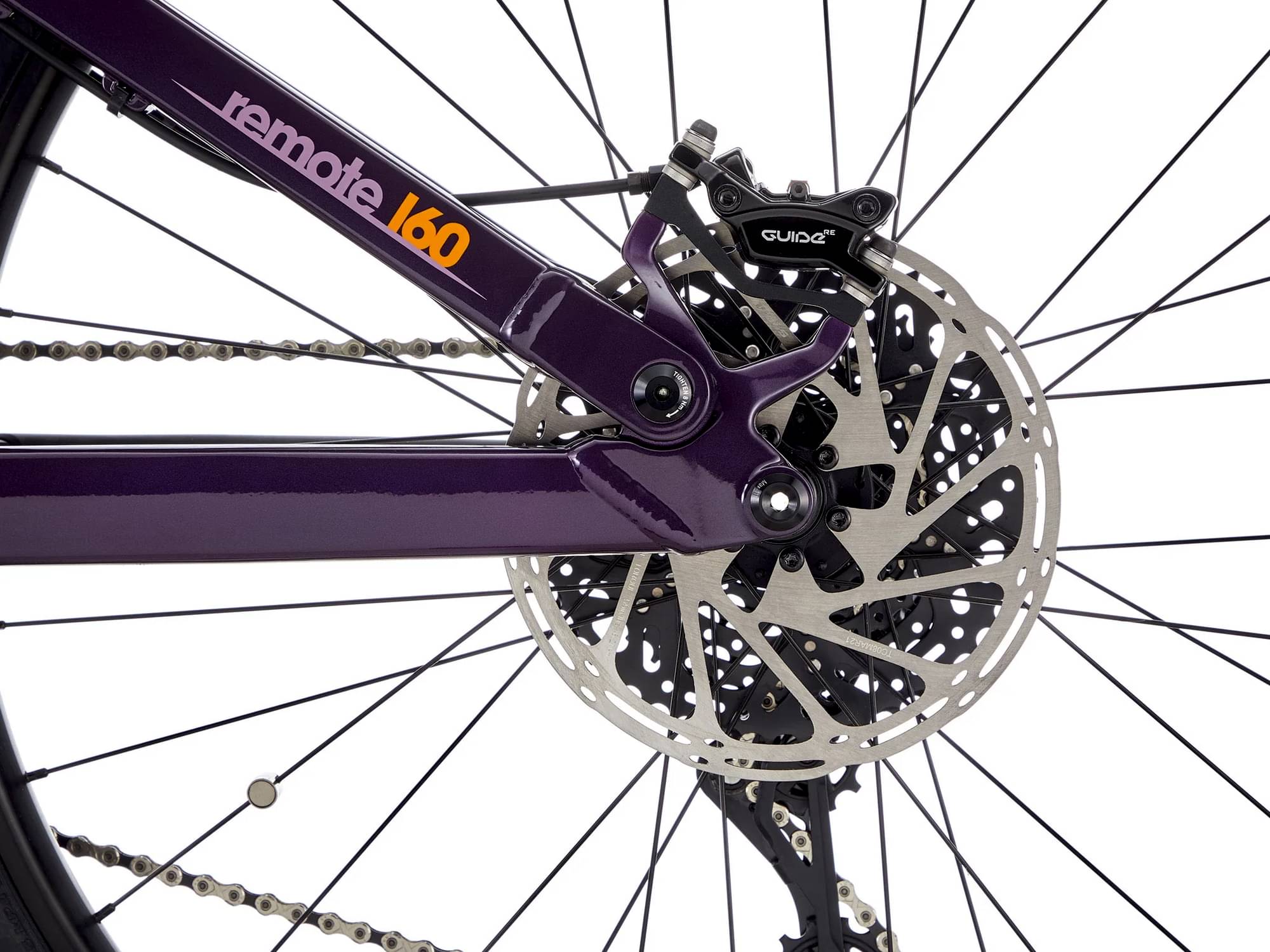

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Remote 160 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Kona Remote 160 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
