Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 132mm -
Fork RockShox Yari RC
-
Groupset NX, EX1 -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500W -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 132mm Travel
Suspension Fork
RockShox Yari RC Motion Control DebonAir 150mm Tapered 110 Spacing
Rear Shock
RockShox Monarch Plus R Solo Air
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
n/a
Shift Levers
SRAM NX
Cassette
SRAM PG1130 11-42t 11spd
Crank
SRAM EX1, 14t
Bottom Bracket
n/a
Chain
SRAM PC1110
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 148x12mm
Rims
WTB ST i40 TCS
Spokes
Stainless Black 14g
Tires
Maxxis Rekon EXO TR DUAL 27.5x2.8"
Brakes
Brakes
SRAM Guide RE
Brake Levers
SRAM Guide RE
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57B
Seat
Saddle
WTB Volt Sport
Seatpost
Trans-X Dropper Internal 30.9mm
Motor & Battery
Motor
Bosch Performance Line CX 20MPH
Battery
Bosch PowerTube 500W
Remote
Bosch Purion
Charger
2A Compact Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.39 mm | 1.32 mm | 1.24 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 753 mm | 778 mm | 803 mm | 842 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm | 102 mm |
| Stack | 629 mm | 629 mm | 629 mm | 638 mm |
| Reach | 428 mm | 453 mm | 478 mm | 513 mm |
| Top Tube Length | 607 mm | 632 mm | 657 mm | 695 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.2 ° |
| Seat Tube Length | 420 mm | 445 mm | 475 mm | 505 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 130 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1240 mm | 1265 mm | 1290 mm | 1330 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 793 mm | 781 mm | 773 mm | 793 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model

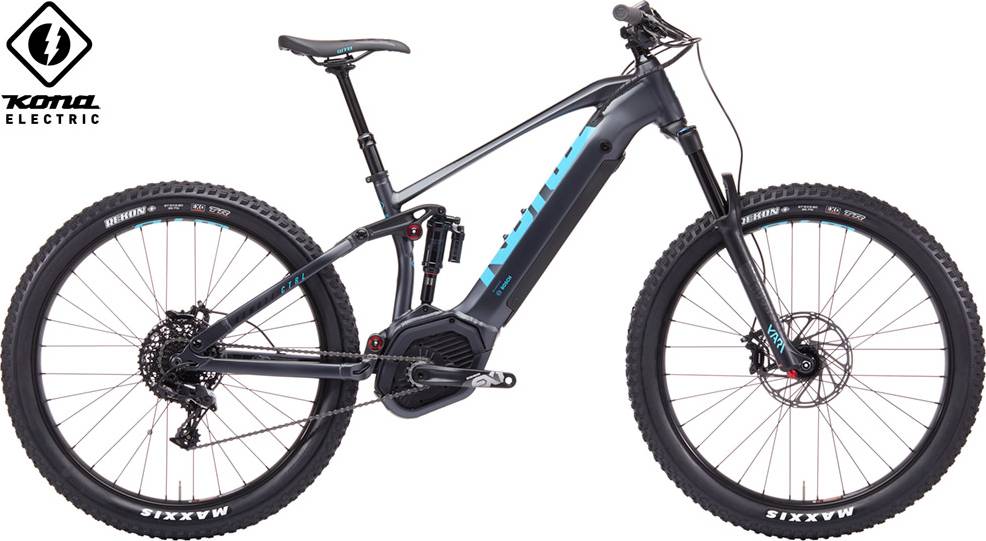

Remote CTRL completes the Kona E Remote model. Kona released 16 e-bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Kona Remote 2019 has a starting price of 4299$. Kona Remote CTRL 2019 on the other hand is the most expensive at 4999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2019 and its price was 4999$. Comparing the average cost of a Trail e-bike to this one, you will see that Remote CTRL price is 48.56% higher.
Overview of components
Fork
This e-bike has the RockShox Yari RC fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Monarch Plus R Solo Air model, with a travel of 132mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Remote CTRL 2019 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Remote CTRL comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Remote CTRL comes in 4 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Kona model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
