Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Revelation RC
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 130mm Travel
Suspension Fork
RockShox Revelation RC Solo Air 140mm Tapered 110mm Spacing
Rear Shock
RockShox Deluxe RL DebonAir Trunnion
Drivetrain
Rear Derailleur
SRAM GX-Eagle
Front Derailleur
n/a
Shift Levers
SRAM GX-Eagle
Cassette
SRAM GX-Eagle 10-50t 12spd
Crank
SRAM Descendant 6K, 34t X-Sync Eagle
Bottom Bracket
SRAM GXP PF92
Chain
SRAM GX-Eagle
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 148x12mm
Rims
WTB STP i29 TCS
Spokes
Stainless Black 15g
Tires
Maxxis Minion DHF TR DUAL 29x2.3"
Brakes
Brakes
SRAM Guide R
Brake Levers
SRAM Guide R
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57E
Seat
Saddle
WTB Volt Comp (Volt 250 Comp size S)
Seatpost
RockShox Reverb w/Plunger Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.32 mm | 1.25 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 715 mm | 744 mm | 772 mm | 811 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 613 mm | 622 mm | 631 mm | 641 mm |
| Reach | 429 mm | 454 mm | 479 mm | 514 mm |
| Top Tube Length | 554 mm | 581 mm | 609 mm | 646 mm |
| Seat Tube Angle | 78.4 ° | 78.4 ° | 78.3 ° | 78.3 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1147 mm | 1176 mm | 1205 mm | 1244 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 730 mm | 767 mm | 767 mm | 787 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |

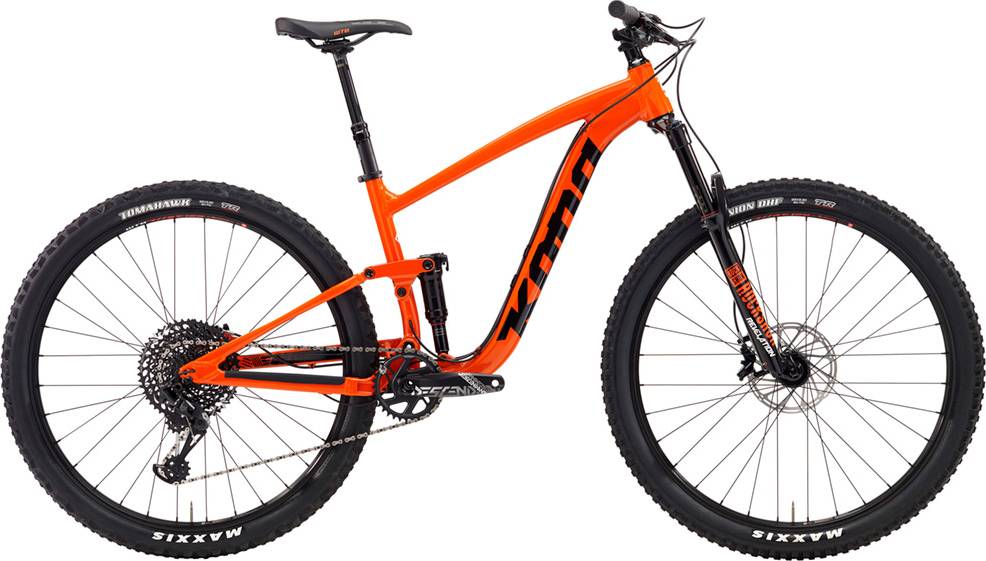

Model Overview
Satori DL is part of the Kona Satori model. 7 bikes variations carry this model name so far. Take a sneak peek at all Kona Satori bikes models from 2019, by clicking here.
Model range prices
Kona Satori 2019 is the most affordable bike of this model and has a price of 2399$. On the other hand, Kona Satori DL 2019, is the most expensive and costs 3499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 3499$. In conclusion, this bike price is 26.68% more expensive than the price of the average Trail bike.
Overview of components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Satori DL has a rear shock with a travel of 130mm. The model RockShox Deluxe RL DebonAir Trunnion is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Satori DL bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Kona Satori DL bike has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
