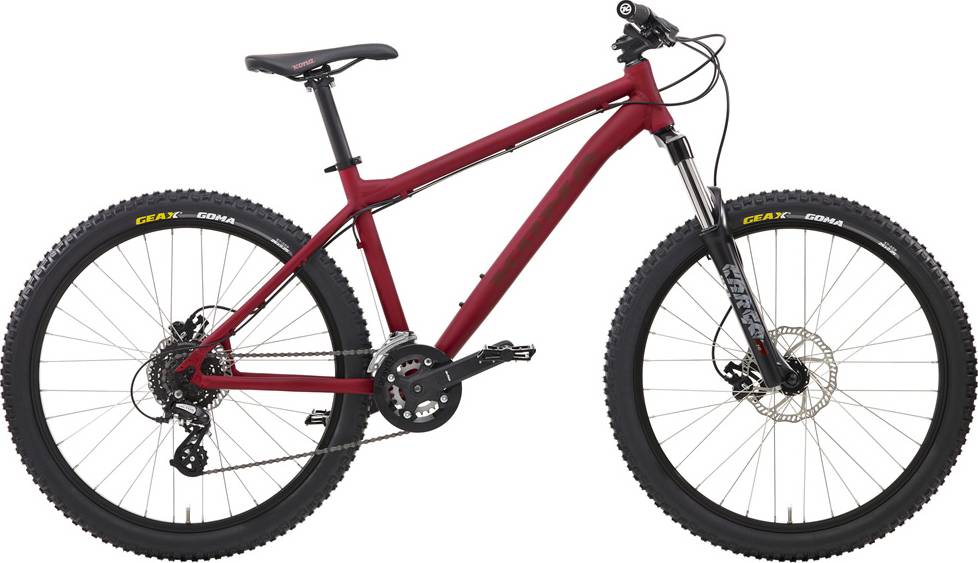

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Groupset Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Spinner Cargo 340 120mm
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus
Cassette
Shimano HG318 11-32t 8 spd
Crank
24/36t/Guard
Bottom Bracket
FSA ISIS
Chain
KMC HG40
Chain Guide
n/a
Pedals
Kona JackShit
Wheels
Front Hub
Joytech 20mm
Rear Hub
Shimano M475
Rims
Alex DM24
Spokes
Stainless 14g
Tires
Geax Goma 26x2.25"
Brakes
Brakes
Tektro HDC300
Brake Levers
Tektro HDC300
Disk Rotors
Tektro HDC300 180mm
Cockpit
Stem
Kona DH
Handlebar
Kona XC/BC
Grips
Kona S-LOG
Headset
Internal CH
Seat
Saddle
Kona OB
Seatpost
Kona Thumb
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 17" | 20" |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.34 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm |
| Front Center | 663 mm | 702 mm | 741 mm |
| Rake | 48 mm | 48 mm | 48 mm |
| Trail | 93 mm | 95 mm | 93 mm |
| Stack | 578 mm | 592 mm | 607 mm |
| Reach | 386 mm | 420 mm | 453 mm |
| Top Tube Length | 566 mm | 604 mm | 642 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 356 mm | 432 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1088 mm | 1127 mm | 1167 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm |
| Standover Height | 738 mm | 779 mm | 822 mm |
| Wheels | 26" | 26" | 26" |
Model Overview
SHRED is part of the Kona Shred model. 25 bikes variations carry this model name so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
SHRED components
Wheels size
The wheels on SHRED are the 26″ aluminum type. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona SHRED is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
