Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Suntour NEX HLO DS700C 63mm
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano M191
Shift Levers
Shimano Acera Rapidfire Plus
Cassette
Shimano HG31 11-34t 8spd
Crank
22/32/44t
Bottom Bracket
FSA 7420
Chain
KMC Z72
Pedals
Wellgo Platform
Wheels
Front Hub
Joytech
Rear Hub
Joytech
Rims
WTB SX19
Spokes
Sandvik Stainless 15g fr /14g rr
Tires
Schwalbe Tyrago 700x40c
Brakes
Brakes
Tektro HDC-M290
Brake Levers
Tektro HDC-M290
Disk Rotors
Tektro HDC-M290 160mm
Cockpit
Stem
Kona Control
Handlebar
Kona Aluminum Riser
Grips
Kona Control
Headset
TH ZST No.10
Seat
Saddle
Kona Crosstrail
Seatpost
Kona Thumb
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.46 mm | 1.43 mm | 1.42 mm |
| Front Center | 634 mm | 661 mm | 687 mm | 714 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 88 mm | 87 mm | 88 mm | 87 mm |
| Stack | 592 mm | 606 mm | 624 mm | 643 mm |
| Reach | 394 mm | 415 mm | 435 mm | 454 mm |
| Top Tube Length | 570 mm | 595 mm | 620 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1065 mm | 1094 mm | 1120 mm | 1147 mm |
| Bottom Bracket Drop | 58 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 718 mm | 753 mm | 793 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

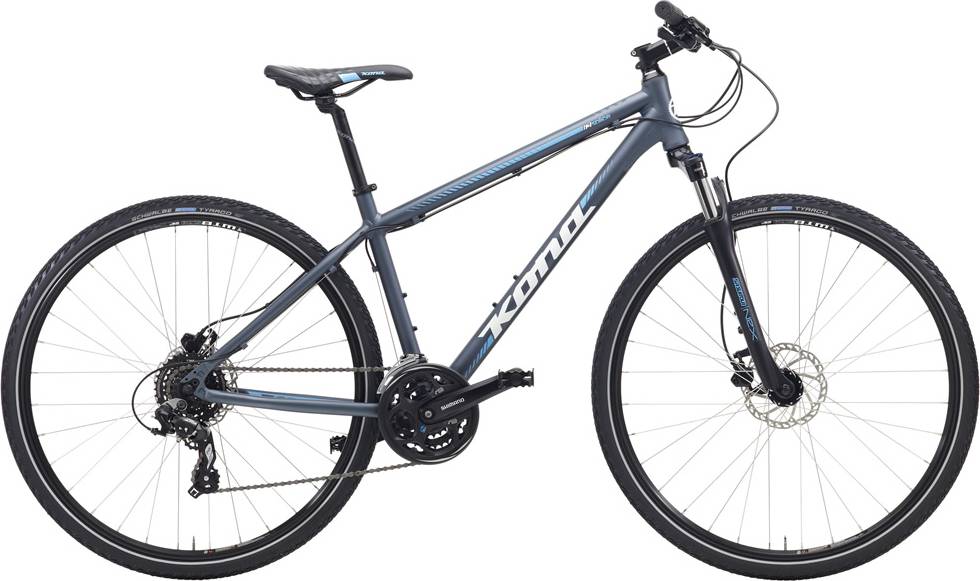

SPLICE belongs to the Kona Splice model. Kona released 17 bikes variations of this model so far. Take a sneak peek at all Kona Splice bikes models from 2015, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
SPLICE components
Fork
Kona SPLICE 2015 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Kona SPLICE 2015, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona SPLICE has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
