Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Suntour NCX D LO 63mm
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Altus
Shift Levers
Shimano Alivio
Cassette
Shimano Acera 11-34t 9spd
Crank
22/32/44t
Bottom Bracket
Shimano UN26
Chain
KMC X9
Pedals
Wellgo Platform
Wheels
Front Hub
Joytech
Rear Hub
Joytech
Rims
WTB SX17
Spokes
Sandvik Stainless 15g fr /14g rr
Tires
CST C1436 700x42c
Brakes
Brakes
Shimano Hydraulic
Brake Levers
Shimano Hydraulic
Disk Rotors
Shimano 160mm
Cockpit
Stem
Kona Control
Handlebar
Kona Aluminum Riser
Grips
Kona Control
Headset
TH ZST No.10
Seat
Saddle
Freedom Aon
Seatpost
Kona Thumb w/Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.42 mm | 1.4 mm |
| Front Center | 638 mm | 665 mm | 692 mm | 719 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 82 mm | 83 mm | 82 mm |
| Stack | 588 mm | 602 mm | 621 mm | 640 mm |
| Reach | 395 mm | 416 mm | 436 mm | 456 mm |
| Top Tube Length | 570 mm | 595 mm | 620 mm | 646 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1070 mm | 1098 mm | 1124 mm | 1152 mm |
| Bottom Bracket Drop | 58 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 718 mm | 758 mm | 793 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview

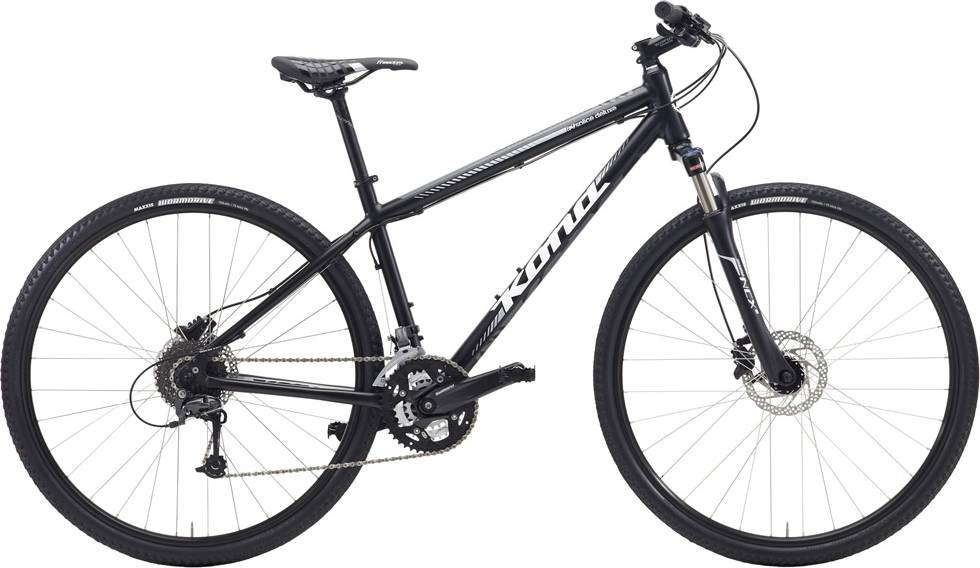

SPLICE DELUXE completes the Kona Splice model. Kona released 17 bikes variations of this model so far. Take a sneak peek at all Kona Splice bikes models from 2015, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
SPLICE DELUXE components
Fork
Kona SPLICE DELUXE 2015 bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the SPLICE DELUXE model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona SPLICE DELUXE is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
