Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 200mm -
Travel Rear 205mm -
Fork RockShox BoXXer
-
Groupset XT, e*thirteen -
Suspension Full -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
SM
152cm - 170cm
MD
157cm - 182cm
MD
157cm - 182cm
LG
175cm - 195cm
LG
175cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Clump DH 7005 Aluminum, 8" Travel w/DOPE
Suspension Fork
RockShox Boxxer Race 200mm w/20mm Dropouts
Rear Shock
FOX VAN R (9.5 x 3.0, Spring: S=350, M=400, L=450lb)
Drivetrain
Rear Derailleur
Shimano XT Shadow
Front Derailleur
E13 LS1
Shift Levers
Shimano Deore (rh only)
Cassette
Shimano Ultegra (12-23, 9spd)
Crank
36T
Bottom Bracket
FSA MegaExo
Chain
Shimano Deore
Pedals
Kona Jackshit
Wheels
Front Hub
Formula Disc
Rear Hub
Sun Ringle Demon 12mm
Rims
Alex FR-32
Spokes
Sandvik Stainless 14g
Tires
Maxxis 26 x 2.5 DHF front/High Roller rear
Brakes
Brakes
Avid Code 8"
Brake Levers
Avid Code
Cockpit
Stem
Kona OB/DH (6° x 60mm)
Handlebar
Kona DH (31.8mm x 780mm Wide)
Grips
Kona LOG
Headset
FSA Gravity SXE
Seat
Saddle
WTB Pure V Race
Seatpost
Kona XC/BC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 352 mm | 339 mm | 352 mm | 339 mm | 352 mm | 339 mm |
| Front Center | 721 mm | 721 mm | 746 mm | 746 mm | 771 mm | 765 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 562 mm | 569 mm | 589 mm | 595 mm | 615 mm | 623 mm |
| Seat Tube Angle | 73.4 ° | 71.9 ° | 73 ° | 71.6 ° | 72.6 ° | 71.3 ° |
| Head Tube Angle | 64.3 ° | 63.3 ° | 64.3 ° | 63.3 ° | 64.3 ° | 63.3 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 442 mm | 447 mm | 442 mm | 447 mm | 442 mm | 447 mm |
| Wheelbase | 1163 mm | 1169 mm | 1188 mm | 1194 mm | 1213 mm | 1219 mm |
| Bottom Bracket Drop | -9 mm | 4 mm | -9 mm | 4 mm | -9 mm | 4 mm |
| Standover Height | 809 mm | 798 mm | 814 mm | 803 mm | 819 mm | 808 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 152 cm | 152 cm | 157 cm | 157 cm | 175 cm | 175 cm |
| Rider Max Height | 170 cm | 170 cm | 182 cm | 182 cm | 195 cm | 195 cm |
About this model

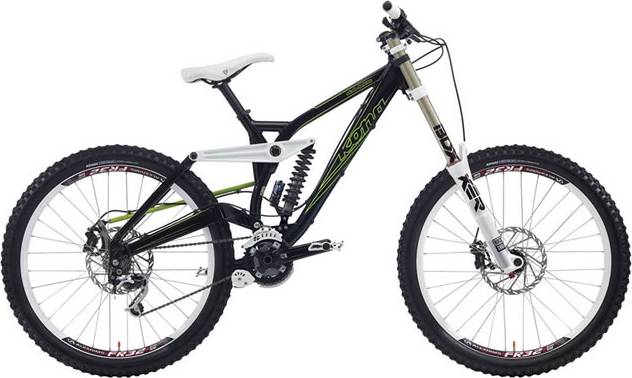

STAB DELUXE belongs to the Kona Stab model. Kona released 2 bikes variations of this model so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill bikes
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
STAB DELUXE components
Fork
The STAB DELUXE comes factory-installed with the RockShox BoXXer fork. This has a travel range of 200mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Kona STAB DELUXE bike has the FOX VAN R (9.5 x 3.0 model installed, and has a travel of 205mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the STAB DELUXE bike is equipped with the 26″ aluminum model. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona STAB DELUXE has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 6 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
