Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 200mm -
Travel Rear 205mm -
Fork RockShox BoXXer
-
Groupset Saint, e*thirteen LG1 -
Suspension Full -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
SM
152cm - 170cm
MD
157cm - 182cm
MD
157cm - 182cm
LG
175cm - 195cm
LG
175cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Clump DH 7005 Aluminum, 8" Travel w/DOPE
Suspension Fork
RockShox Boxxer World Cup 200mm w/20mm Dropouts
Rear Shock
Fox DHX RC4 (9.5 x 3.0 S=350, M=400, L=450lb)
Drivetrain
Rear Derailleur
Shimano Saint
Front Derailleur
E13 LG1 Alloy w/Taco
Shift Levers
Shimano Saint
Cassette
Shimano Ultegra (12-23, 9spd)
Crank
36T
Bottom Bracket
Shimano Saint
Chain
Shimano SLX
Pedals
Kona Wah-Wah
Wheels
Front Hub
Shimano Saint
Rear Hub
Shimano Saint
Rims
Sun MTX 33
Spokes
Sandvik Stainless 14g
Tires
Maxxis 26 x 2.5 DHF front/High Roller rear 3C DH casing
Brakes
Brakes
Shimano Saint Disc 8"
Brake Levers
Shimano Saint Disc
Cockpit
Stem
FSA Gravity Light (50mm/55mm Length, 31.8)
Handlebar
FSA Gravity Light (800mm Wide, 25mm Rise)
Grips
Kona LOG
Headset
FSA Gravity DX
Seat
Saddle
WTB Devo Team
Seatpost
FSA Gravity DH-300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 347 mm | 334 mm | 347 mm | 334 mm | 347 mm | 334 mm |
| Front Center | 712 mm | 712 mm | 737 mm | 737 mm | 762 mm | 762 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Top Tube Length | 558 mm | 565 mm | 585 mm | 592 mm | 610 mm | 619 mm |
| Seat Tube Angle | 74.2 ° | 72.7 ° | 73.8 ° | 72.4 ° | 73.4 ° | 72 ° |
| Head Tube Angle | 65 ° | 63.9 ° | 65 ° | 63.9 ° | 65 ° | 63.9 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 442 mm | 447 mm | 442 mm | 447 mm | 442 mm | 447 mm |
| Wheelbase | 1154 mm | 1159 mm | 1179 mm | 1184 mm | 1204 mm | 1209 mm |
| Bottom Bracket Drop | -4 mm | 9 mm | -4 mm | 9 mm | -4 mm | 9 mm |
| Standover Height | 803 mm | 792 mm | 808 mm | 797 mm | 813 mm | 802 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 152 cm | 152 cm | 157 cm | 157 cm | 175 cm | 175 cm |
| Rider Max Height | 170 cm | 170 cm | 182 cm | 182 cm | 195 cm | 195 cm |
Model Overview

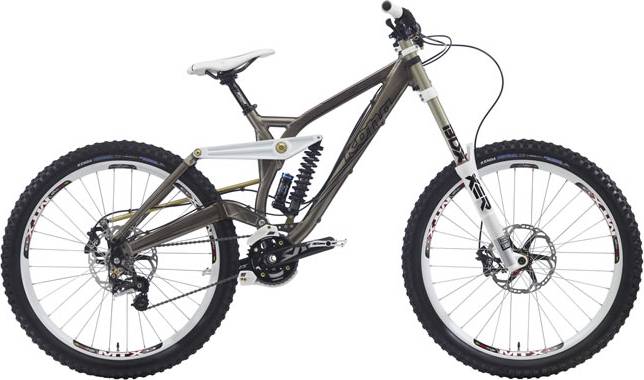

STAB SUPREME is a Kona Stab model. There are 2 bikes that carry this model name. Take a sneak peek at all Kona Stab bikes models from 2010, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The RockShox BoXXer is included from the factory. It has a travel distance of 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox DHX RC4 (9.5 x 3.0 S=350 rear shock model, which has a travel of 205mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the STAB SUPREME bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Kona STAB SUPREME bike has 6 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
