Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 180mm -
Travel Rear 180mm -
Fork Marzocchi
-
Groupset X9 -
Suspension Full -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Clump DH 7005 Aluminum, 7" Travel w/DOPE
Suspension Fork
Marzocchi 66 RC3 180mm w/20mm Dropouts
Rear Shock
Marzocchi ROCO TST R (8.5 x 2.5 15=350lb, 15.5=400lb, 16=450lb, 16.5=500lb, 17=550lb)
Drivetrain
Rear Derailleur
SRAM X-9
Front Derailleur
Hammerschmidt FR
Shift Levers
SRAM X-9
Cassette
SRAM PG 950 (11-32, 9spd)
Crank
22T
Bottom Bracket
Hammerschmidt FR
Chain
SRAM PC 951
Pedals
Kona Wah-Wah
Wheels
Front Hub
Mavic Crossline Wheelset
Rear Hub
Mavic Crossline Wheelset
Rims
Mavic Crossline Wheelset
Spokes
Mavic Crossline Wheelset
Tires
Maxxis 26 x 2.5 DHF front/High Roller rear
Brakes
Brakes
Avid Code 8"
Brake Levers
Avid Code
Cockpit
Stem
Kona Clump (10° x 50mm)
Handlebar
Kona OB/DH (31.8mm x 710mm Wide)
Grips
Kona Log
Headset
FSA Big Fat Pig
Seat
Saddle
WTB Pure V Race FR
Seatpost
Kona XC/BC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 381 | 394 | 40.6cm | 41.9cm | 43.2cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm | 358 mm | 358 mm |
| Front Center | 727 mm | 740 mm | 752 mm | 768 mm | 781 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Top Tube Length | 557 mm | 571 mm | 582 mm | 595 mm | 608 mm |
| Seat Tube Angle | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 381 mm | 394 mm | 406 mm | 419 mm | 432 mm |
| Head Tube Angle | 64.2 ° | 64.2 ° | 64.2 ° | 64.2 ° | 64.2 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 140 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1165 mm | 1178 mm | 1190 mm | 1205 mm | 1218 mm |
| Bottom Bracket Drop | -15 mm | -15 mm | -15 mm | -15 mm | -15 mm |
| Standover Height | 801 mm | 798 mm | 794 mm | 798 mm | 801 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

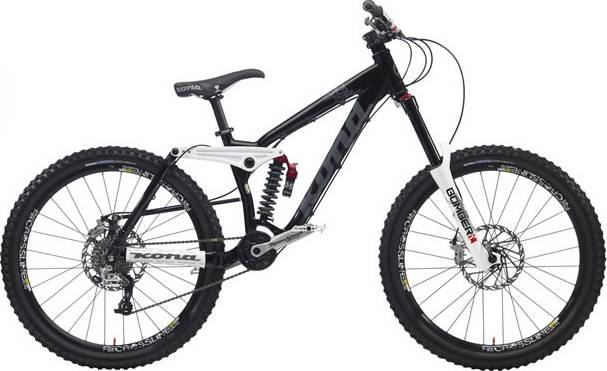

STINKY DELUXE is a Kona Stinky model. There are 14 bikes that carry this model name. Check out the entire range from 2010 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Downhill bikes
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The STINKY DELUXE comes factory-installed with the Marzocchi fork. This has a travel range of 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Marzocchi ROCO TST R (8.5 x 2.5 15=350lb, with a travel distance of 180mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the STINKY DELUXE bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STINKY DELUXE comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
