Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Marzocchi
-
Groupset Deore -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Clump 7005 Aluminum, 6" Travel
Suspension Fork
Marzocchi 55-RS 160mm w/20mm
Rear Shock
Marzocchi Roco Coil R (7.875 x 2.25 15=400lb, 17=500lb, 18=600lb, 19/20=650lb)
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano HG50 (11-34, 9spd)
Crank
Guard/36/24
Bottom Bracket
FSA Moto Integrated
Chain
Shimano HG53
Pedals
Kona Jackshit
Wheels
Front Hub
Formula Disc
Rear Hub
Shimano M525 Disc
Rims
Alex DM-24
Spokes
Stainless 14g
Tires
Maxxis 26 x 2.5 DHF front/High Roller rear
Brakes
Brakes
Shimano M575 Disc 6"
Brake Levers
Shimano M575 Disc
Cockpit
Stem
Kona OB/DH (6°± ; 15=60mm, 17-20=75mm)
Handlebar
Kona OB/DH (31.8mm x 710mm Wide)
Grips
Kona LOG
Headset
FSA Orbit Z1.5R
Seat
Saddle
WTB Pure V Sport
Seatpost
Kona XC/BC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 381 | 43.2cm | 45.7cm | 48.3cm | 20" |
|---|---|---|---|---|---|
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 694 mm | 705 mm | 718 mm | 734 mm | 747 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 557 mm | 569 mm | 582 mm | 595 mm | 608 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 457 mm | 483 mm | mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 130 mm | 120 mm | 140 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1134 mm | 1146 mm | 1159 mm | 1174 mm | 1188 mm |
| Bottom Bracket Drop | -5 mm | -5 mm | -5 mm | -5 mm | -5 mm |
| Standover Height | 771 mm | 790 mm | 795 mm | 813 mm | 822 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

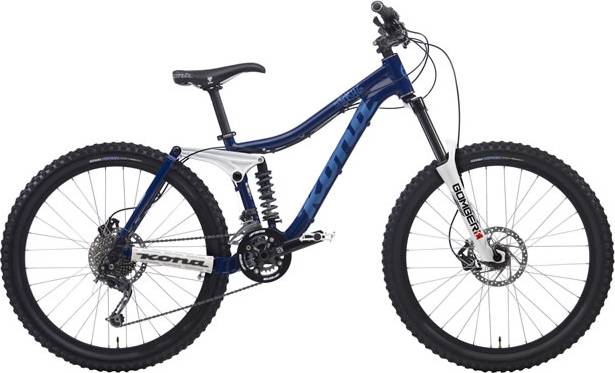

STINKY SIX is a Kona Stinky model. There are 14 bikes that carry this model name. Take a sneak peek at all Kona Stinky bikes models from 2010, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The STINKY SIX comes factory-installed with the Marzocchi fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Marzocchi Roco Coil R (7.875 x 2.25 15=400lb rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The STINKY SIX 2010 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
