Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset RED -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
56cm
175cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Carbon
Suspension Fork
Kona Full Carbon CX Race Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM Red
Front Derailleur
SRAM Red
Shift Levers
SRAM Red
Cassette
SRAM Red 11-28t 11 spd
Crank
36/46t
Bottom Bracket
SRAM Red Press Fit BB30
Chain
SRAM Red
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Stan's Iron Cross Tubeless Wheelset
Rear Hub
Stan's Iron Cross Tubeless Wheelset
Rims
Stan's Iron Cross Tubeless Wheelset
Spokes
Stan's Iron Cross Tubeless Wheelset
Tires
Clement MXP 700x33c Folding
Brakes
Brakes
SRAM Red
Brake Levers
SRAM Red
Disk Rotors
SRAM HSX 140mm
Cockpit
Stem
Easton EA90
Handlebar
Easton EC70 SL3
Grips
Kona Cork Tape
Headset
FSA No.57-CX
Seat
Saddle
WTB Volt Team
Seatpost
Easton EA70
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 53cm | 56cm | 59cm | 61cm | 63cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.44 mm | 1.47 mm | 1.48 mm | 1.47 mm | 1.48 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 599 mm | 606 mm | 612 mm | 627 mm | 636 mm | 646 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 91 mm | 71 mm | 67 mm | 65 mm | 61 mm | 61 mm |
| Stack | 571 mm | 563 mm | 581 mm | 602 mm | 613 mm | 627 mm |
| Reach | 393 mm | 390 mm | 394 mm | 408 mm | 418 mm | 424 mm |
| Top Tube Length | 540 mm | 555 mm | 570 mm | 590 mm | 610 mm | 620 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 530 mm | 560 mm | 590 mm | 610 mm | 630 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 110 mm | 135 mm | 155 mm | 175 mm | 185 mm | 200 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1021 mm | 1027 mm | 1034 mm | 1049 mm | 1058 mm | 1068 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 783 mm | 802 mm | 828 mm | 854 mm | 868 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

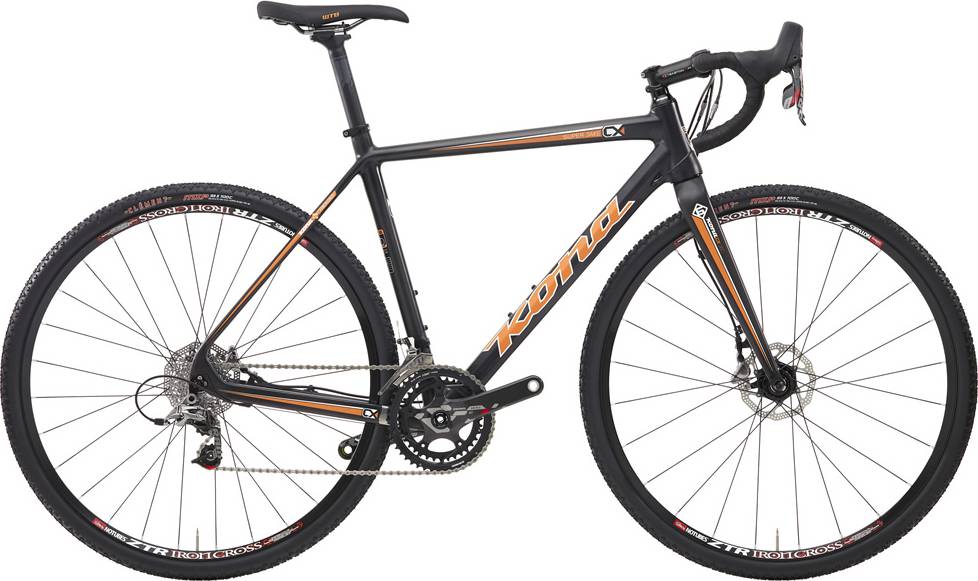

SUPER JAKE belongs to the Kona Jake model. Kona released 47 bikes variations of this model so far. Take a sneak peek at all Kona Jake bikes models from 2014, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Cyclocross bikes average price
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, even though the average price of a Cyclocross bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
SUPER JAKE has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the SUPER JAKE model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The SUPER JAKE has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
