Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Deore, microSHIFT -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
52cm
157cm - 177cm
54cm
175cm - 188cm
56cm
175cm - 195cm
58cm
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Cromoly Butted
Suspension Fork
Kona Project Two Cromoly Disc Touring
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore SGS
Front Derailleur
Shimano Deore
Shift Levers
MicroShift
Cassette
Shimano Deore 11-36t 10spd
Crank
Shimano Deore, 26/36/48t
Bottom Bracket
Shimano 73mm
Chain
Shimano Deore
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 100x12mm
Rear Hub
Formula 142x12mm
Rims
WTB ST i23 TCS
Spokes
Stainless Black 14g
Tires
Schwalbe Marathon Mondial 700x40c
Brakes
Brakes
TRP Spyre C Flat mount
Brake Levers
Tektro RRL-A
Disk Rotors
TRP Spyre C 160mm
Cockpit
Stem
Kona Road
Handlebar
Kona Road
Grips
Kona Cork Tape
Headset
FSA TH848
Seat
Saddle
Brooks B17 Leather
Seatpost
Kona Deluxe Thumb w/Offset 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 48.5cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.48 mm | 1.49 mm | 1.56 mm | 1.6 mm | 1.63 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 596 mm | 604 mm | 613 mm | 624 mm | 635 mm | 648 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 66 mm | 67 mm | 68 mm | 67 mm | 67 mm | 67 mm |
| Stack | 541 mm | 550 mm | 560 mm | 590 mm | 610 mm | 632 mm |
| Reach | 366 mm | 372 mm | 377 mm | 378 mm | 382 mm | 387 mm |
| Top Tube Length | 519 mm | 532 mm | 545 mm | 561 mm | 577 mm | 595 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 460 mm | 485 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 147 mm | 168 mm | 191 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1031 mm | 1039 mm | 1051 mm | 1062 mm | 1075 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 737 mm | 757 mm | 777 mm | 802 mm | 822 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

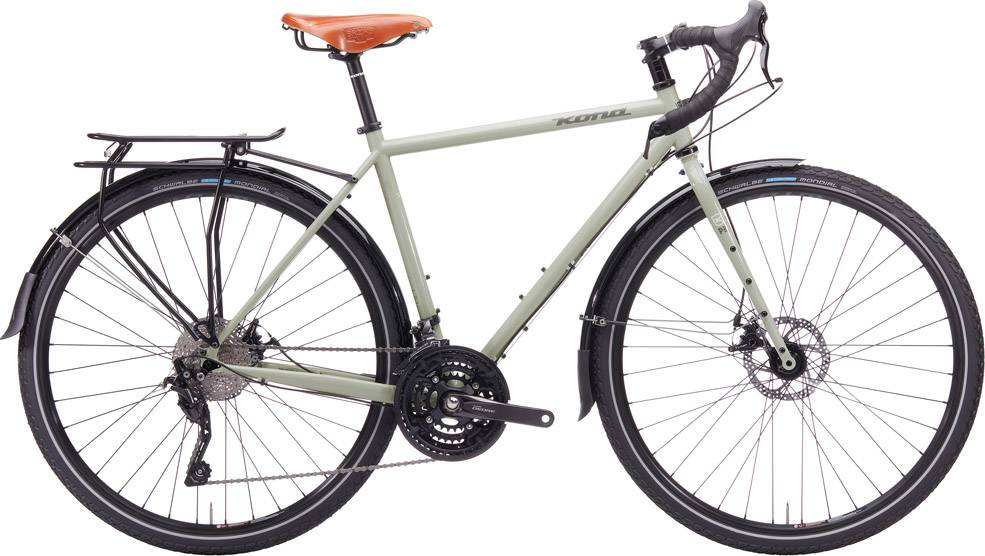

Model Overview
Sutra belongs to the Kona Sutra model. Kona launched 26 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Kona Sutra 2020 is the most economical model, with a starting price of 1499$. Kona Sutra LTD 2020 on the other hand costs 2199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Kona Sutra price was 1499$. Comparing this to the average Gravel bike price, we see that the price is 64.24% lower.
Sutra components
Fork material
When it comes to the fork, this bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
When it comes to wheels, the Sutra bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
