Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Groupset Rival, NX -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

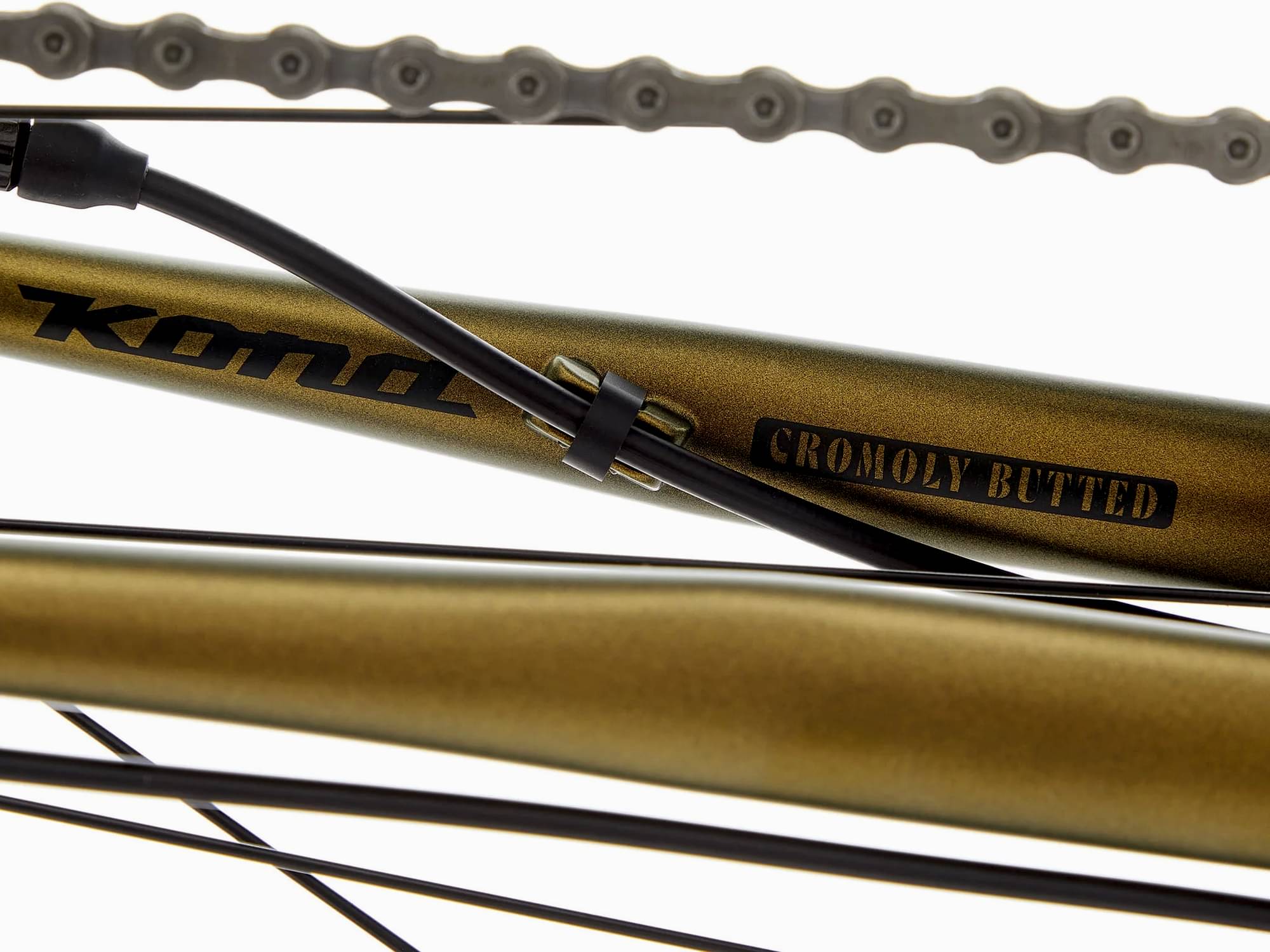

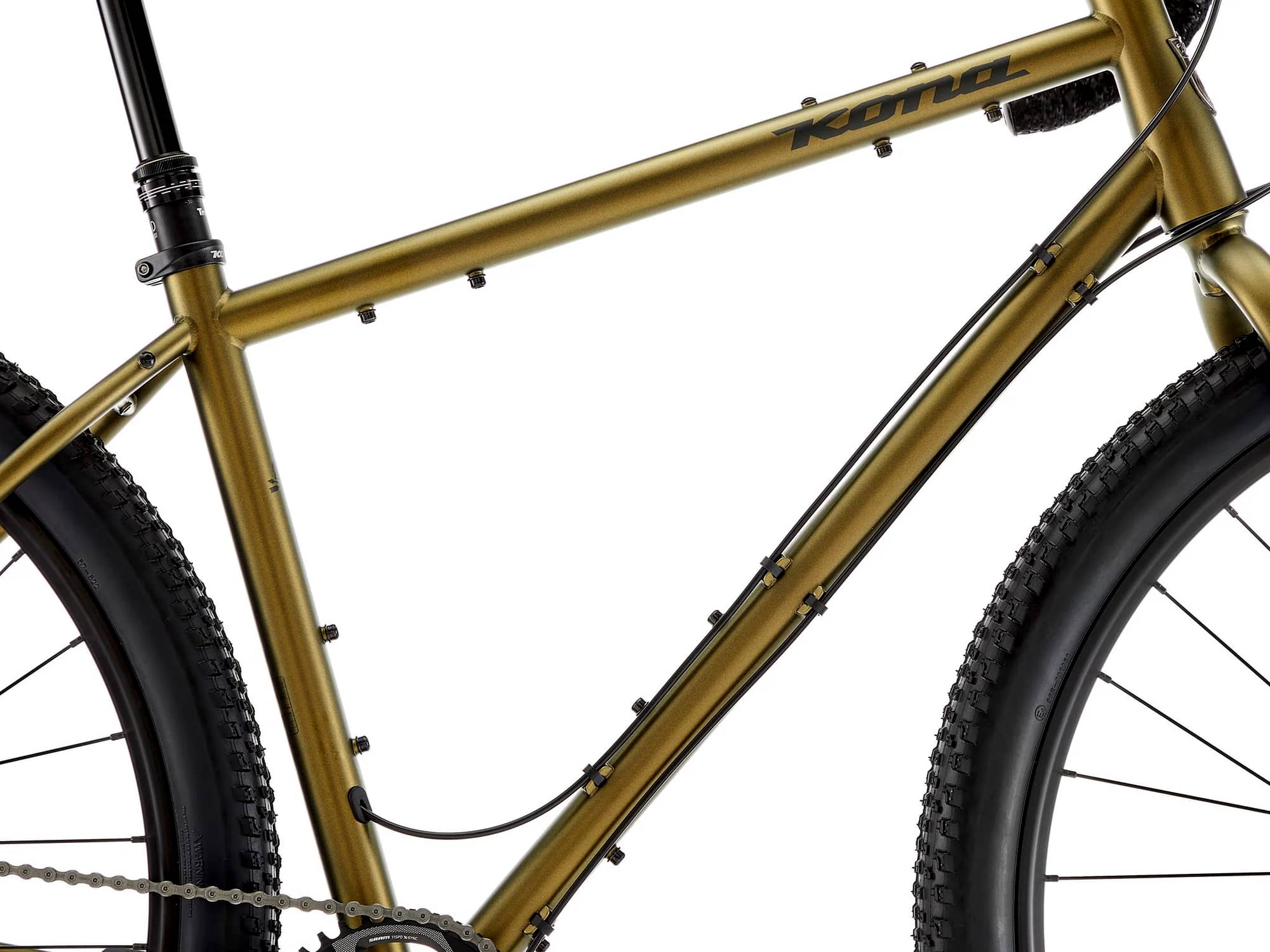

Kona Cromoly Butted
Suspension Fork
Kona Project Two Cromoly Disc Touring Fork
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM Rival 1
Front Derailleur
n/a
Shift Levers
SRAM Rival 1 w/ Integrated Dropper Lever
Cassette
SRAM PG1130 11-42t 11spd
Crank
SRAM NX, 36t X-Sync
Bottom Bracket
SRAM GXP 73mm
Chain
SRAM PC1110
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 100x12mm
Rear Hub
Formula 142x12mm
Rims
WTB KOM Team i27 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Rekon Race EXO TR 29x2.25", Rear: Maxxis Rekon Race EXO TR 29x2.25"
Brakes
Brakes
SRAM Rival HRD Flat Mount
Brake Levers
SRAM Rival 1
Cockpit
Stem

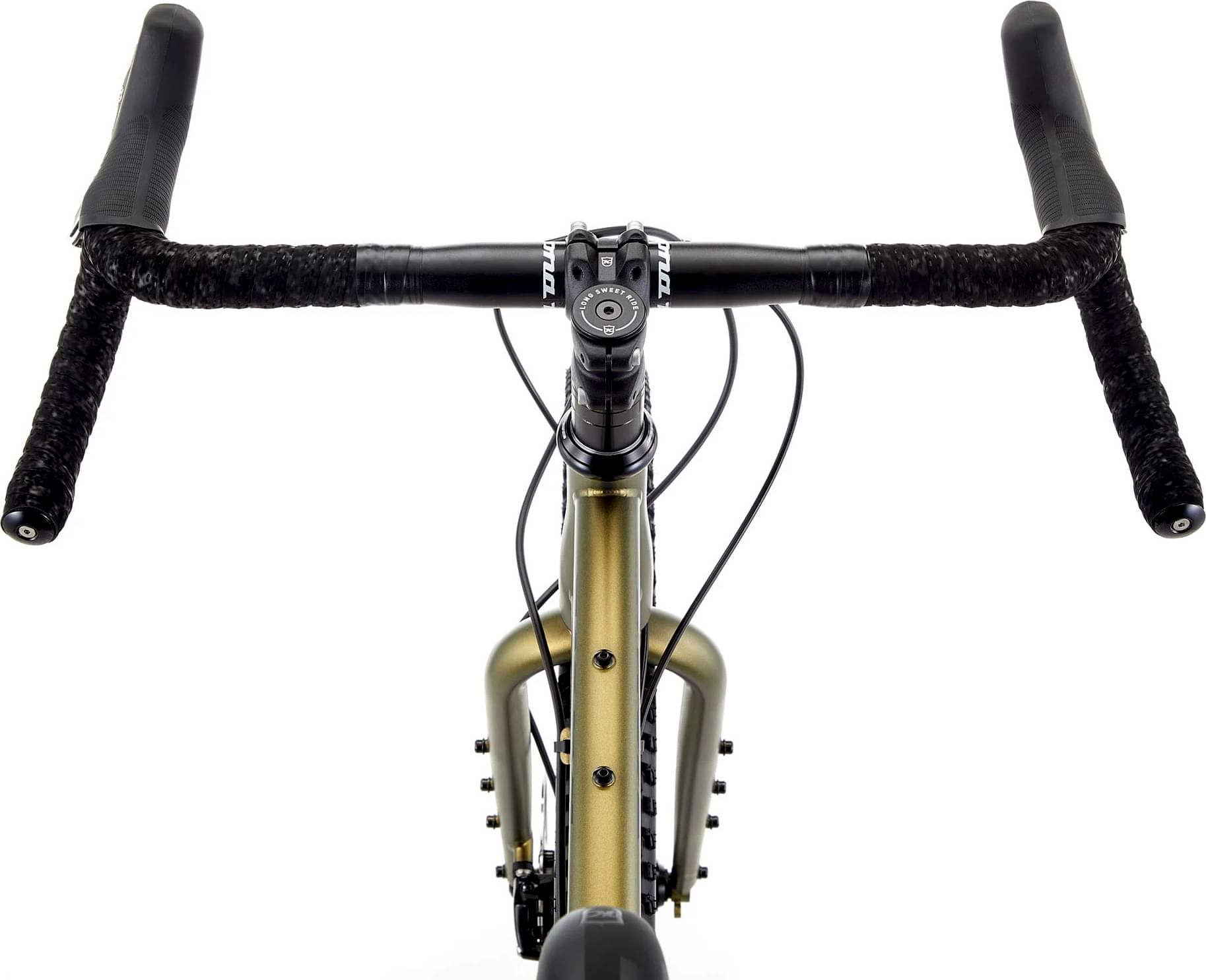

Kona Road Deluxe
Handlebar
Kona Road
Grips
Kona Cork Tape
Headset
FSA No.1/No.10
Seat
Saddle
WTB Volt
Seatpost
TranzX Dropper +RAD Internal 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.58 mm | 1.64 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 303 mm | 303 mm | 303 mm |
| Front Center | 628 mm | 636 mm | 647 mm | 658 mm | 670 mm | 688 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm | 71 mm | 72 mm |
| Stack | 561 mm | 571 mm | 585 mm | 602 mm | 620 mm | 653 mm |
| Reach | 373 mm | 378 mm | 383 mm | 388 mm | 393 mm | 398 mm |
| Top Tube Length | 525 mm | 538 mm | 553 mm | 568 mm | 585 mm | 606 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 410 mm | 455 mm | 455 mm | 500 mm | 535 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 125 mm | 140 mm | 160 mm | 180 mm | 215 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1055 mm | 1064 mm | 1074 mm | 1087 mm | 1099 mm | 1116 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 728 mm | 732 mm | 766 mm | 774 mm | 820 mm | 844 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Sutra LTD completes the Kona Sutra model. Kona launched 26 bikes of this model so far. Take a sneak peek at all Kona Sutra bikes models from 2023, by clicking here.
Model range prices
Kona Sutra 2023 is the most economical model, with a starting price of 2099$. Kona Sutra LTD 2023 on the other hand costs 2699$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2699$. Comparing the average cost of a Gravel bike to this one, you will see that Sutra LTD price is 9.63% more expensive.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When leaving the production line, the Sutra LTD model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.

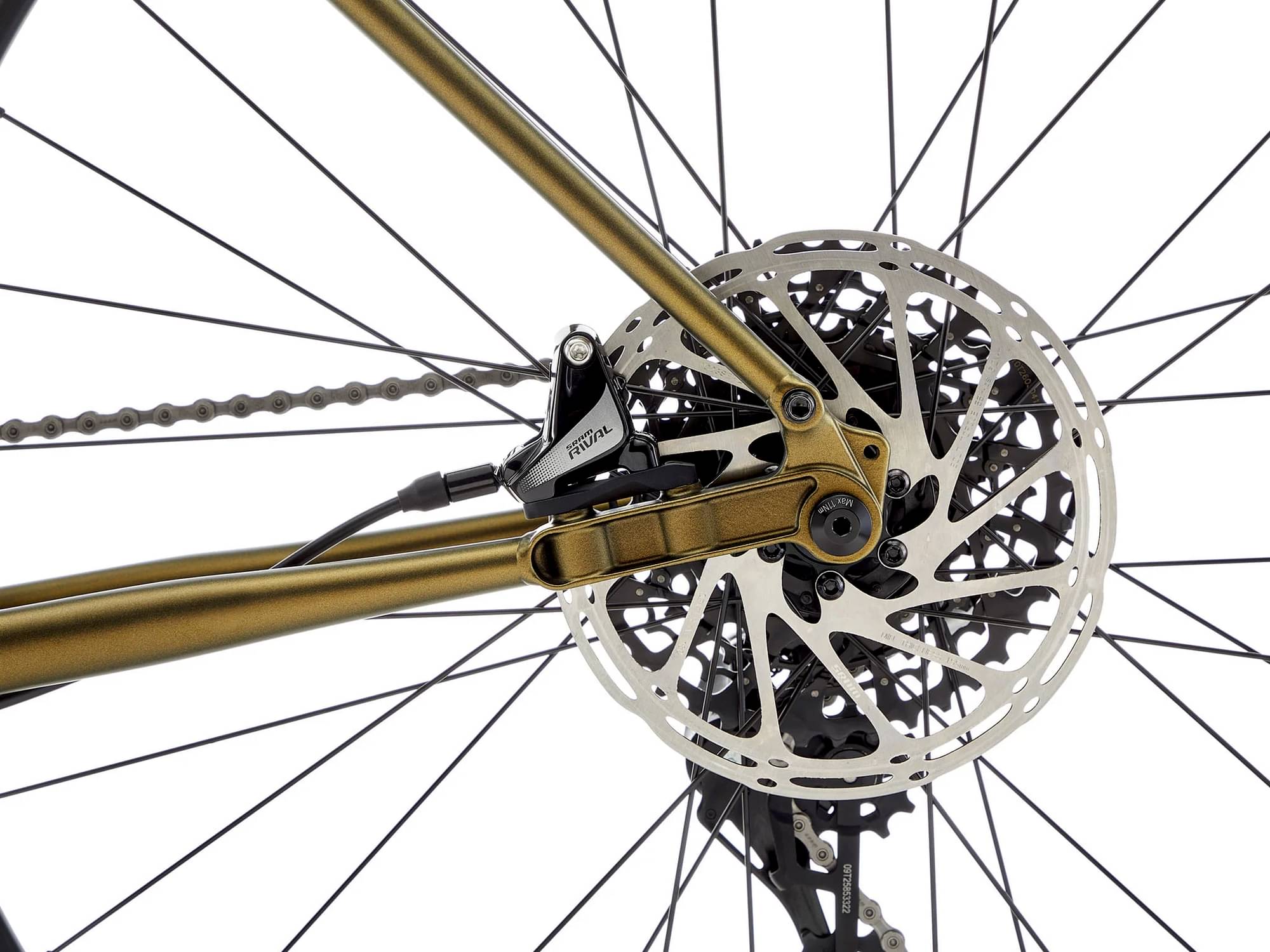

Brakes
For your safety, it is important to have quality breaks on your bike. Kona Sutra LTD has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
The Kona model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
