Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 27.5" -
Groupset FSA -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reynolds 520 Butted Cromoly
Suspension Fork
Kona Plus fork
Rear Shock
n/a
Drivetrain
Rear Derailleur
n/a
Front Derailleur
n/a
Shift Levers
n/a
Cassette
Joytech 18t
Crank
FSA Comet Modular, 32t
Bottom Bracket
FSA 7100
Chain
KMC Z610
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Formula 100x9mm
Rear Hub
Formula 135x10mm
Rims
WTB Scraper i40 Pinned TCS
Spokes
Sandvik Stainless 15g fr / 14g rr
Tires
WTB Ranger TCS 27.5x2.8"
Brakes
Brakes
Tektro HDM285
Brake Levers
Tektro HDM285
Disk Rotors
Tektro TR180 180mm
Cockpit
Stem
Kona XC/BC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip
Headset
TH ZST No.10
Seat
Saddle
WTB Volt Comp (Comp 250 size S)
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 657 mm | 686 mm | 714 mm | 747 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 577 mm | 586 mm | 596 mm | 605 mm |
| Reach | 408 mm | 433 mm | 457 mm | 488 mm |
| Top Tube Length | 572 mm | 600 mm | 627 mm | 660 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1096 mm | 1125 mm | 1153 mm | 1187 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 694 mm | 729 mm | 764 mm | 809 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model

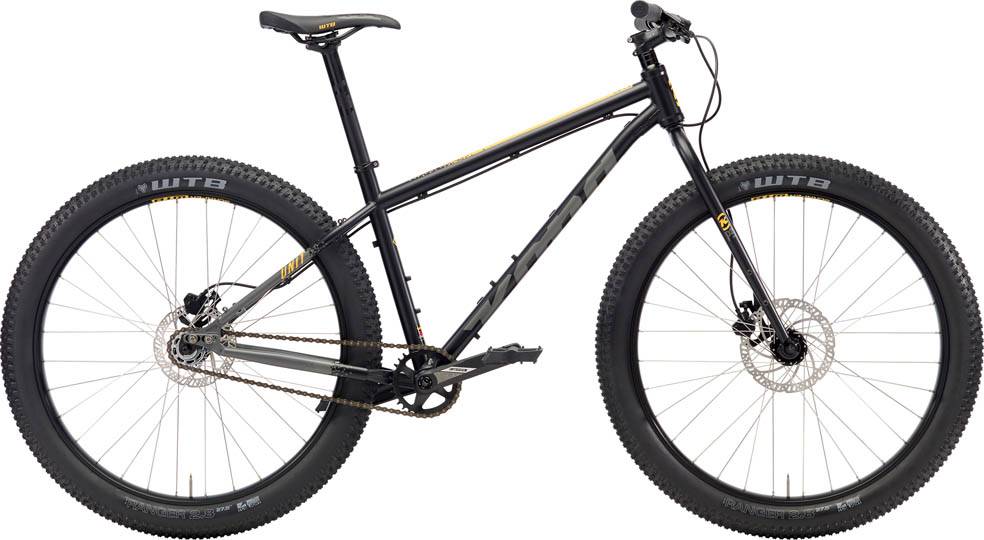

Unit completes the Kona Unit model. Kona released 20 bikes variations of this model so far. You can easily view all of the Kona Unit bikes models from 2018, here.
Model range prices
Kona Unit 2018 is the most economical model, with a starting price of 999$. Kona Unit X 2018 on the other hand costs 1299$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Kona released this model in 2018, its price was 999$. Doing a quick comparison, we notice that Unit price is 90.69% lower than the average cost of a Crosscountry bike.
Overview of components
Wheels size
When it comes to wheels, the Unit bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona Unit has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Unit comes in 4 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
