Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 27.5" -
Groupset NX -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reynolds 520 Butted Cromoly
Suspension Fork
Kona Plus fork
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
n/a
Shift Levers
SRAM NX
Cassette
SRAM PG1130 11-42t 11spd
Crank
SRAM NX, 28t
Bottom Bracket
SRAM Powerspline 73mm
Chain
SRAM PC1110
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Formula 100x9mm
Rear Hub
Formula 135x10mm
Rims
WTB ST i35 TCS
Spokes
Sandvik Stainless Black 15g fr / 14g rr
Tires
WTB Ranger TCS 27.5x2.8"
Brakes
Brakes
SRAM Level T
Brake Levers
SRAM Level T
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
Kona XC/BC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip
Headset
TH ZST No.10
Seat
Saddle
WTB Volt Comp (Comp 250 size S)
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 657 mm | 686 mm | 714 mm | 747 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 577 mm | 586 mm | 596 mm | 605 mm |
| Reach | 408 mm | 433 mm | 457 mm | 488 mm |
| Top Tube Length | 572 mm | 600 mm | 627 mm | 660 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1096 mm | 1125 mm | 1153 mm | 1187 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 689 mm | 724 mm | 759 mm | 804 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |

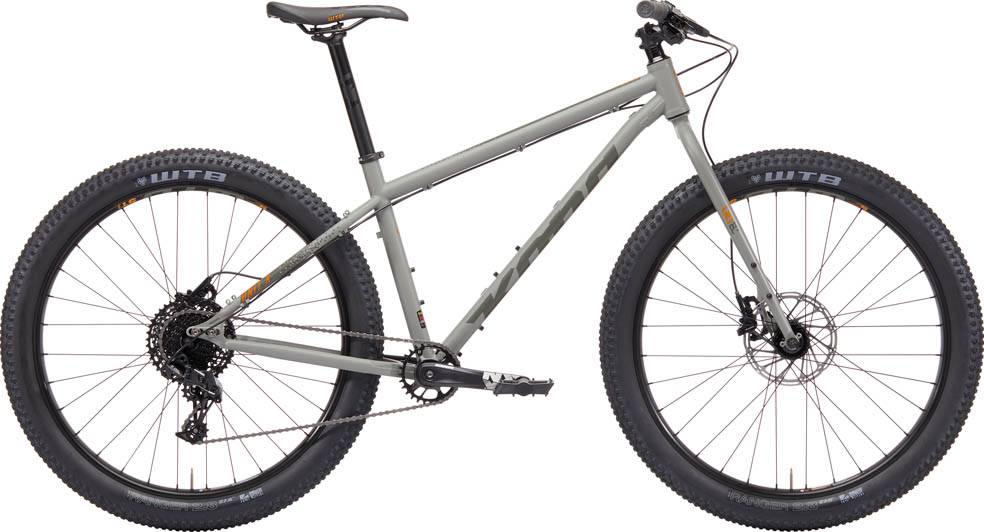

Model Overview
Unit X is a Kona Unit model. Kona released 20 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Kona Unit 2019 is the most economical model, with a starting price of 1099$. Kona Unit X 2019 on the other hand costs 1299$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Kona released this model in 2019, its price was 1299$. Comparing the average cost of a Crosscountry bike to this one, you will see that Unit X price is 46.65% smaller.
Unit X components
Wheels
The Unit X 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona Unit X has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
